0676-0 Series

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Socket Depth	Socket Depth	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Tail Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Contact Finish Thickness	Contact Finish Thickness	Length - Overall [x]	Length - Overall [x]	Contact Material
Mill-Max Manufacturing Corp. 0676-0-15-80-30-14-10-0	-55 C	125 °C	4.39 mm	0.173 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	Gold	No Tail	1.45 mm	0.057 in	Press-Fit	0.25 Ám	10 Áin	5.16 mm	0.203 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0676-0-15-01-30-27-10-0	-55 C	125 °C	4.39 mm	0.173 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	Gold	No Tail	1.45 mm	0.057 in	Press-Fit	0.76 Ám	30 Áin	5.16 mm	0.203 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0676-0-15-80-30-27-10-0	-55 C	125 °C	4.39 mm	0.173 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	Gold	No Tail	1.45 mm	0.057 in	Press-Fit	0.76 Ám	30 Áin	5.16 mm	0.203 in	Beryllium Copper

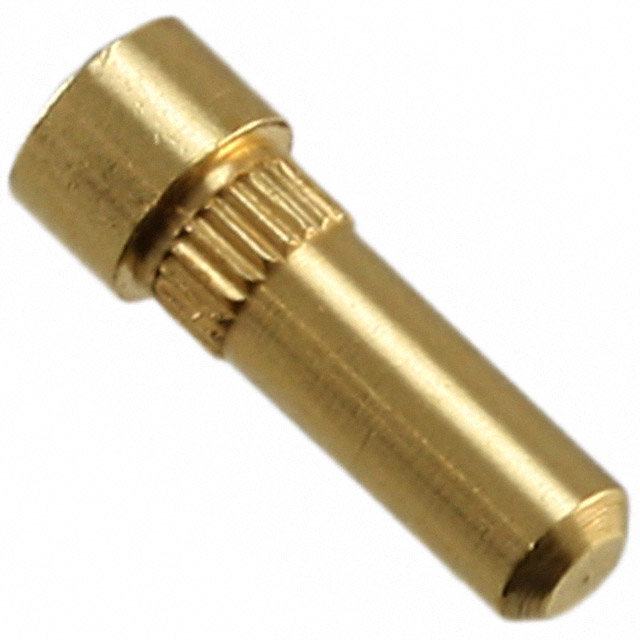

Mill-Max Manufacturing Corp. 0676-0-15-15-30-27-10-0	-55 C	125 °C	4.39 mm	0.173 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	Gold	No Tail	1.45 mm	0.057 in	Press-Fit	0.76 Ám	30 Áin	5.16 mm	0.203 in	Beryllium Copper
Mill-Max Manufacturing Corp. 0676-0-15-01-30-14-10-0	-55 C	125 °C	4.39 mm	0.173 in	0.64 mm	0.015 "	0.025 in	0.38 mm	0.072 "	1.83 mm	Gold	No Tail	1.45 mm	0.057 in	Press-Fit	0.25 Ám	10 Áin	5.16 mm	0.203 in	Beryllium Copper
