HEN.0M Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 5POS GOLD SOLDER

Part	Mounting Type	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Ingress Protection	Shielding	Shell Finish	Primary Material	Shell Size - Insert	Connector Type	Color	Mounting Feature	Termination	Applications	Number of Positions	Contact Finish - Mating	Features	Fastening Type	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Orientation	Current Rating (Amps)

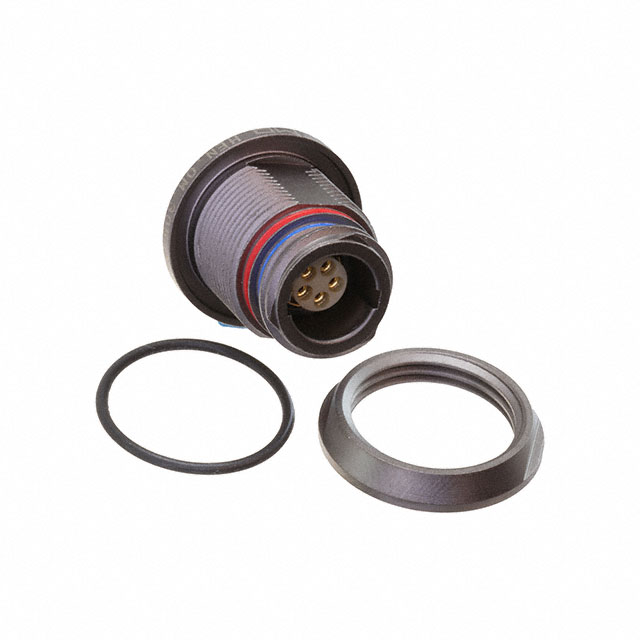

LEMO HEN.0M.305.XLNP	Panel Mount Through Hole	Aluminum Alloy	80 °C	-20 ░C	Bronze	IP68 - Dust Tight Waterproof	Shielded	Nickel	Metal	305	Receptacle Female Sockets	Gray	Bulkhead - Front Side Nut	Solder	Aerospace Automotive Aviation Military	5	Gold	Potted	Threaded	Polyetheretherketone (PEEK)	1.5 Ám	59 Áin	N (Normal)	6.5 A
LEMO HEN.0M.304.XLNP	Panel Mount Through Hole	Aluminum Alloy	80 °C	-20 ░C	Bronze	IP68 - Dust Tight Waterproof	Shielded	Nickel	Metal	304	Receptacle Female Sockets	Gray	Bulkhead - Front Side Nut	Solder	Aerospace Automotive Aviation Military	4	Gold	Potted	Threaded	Polyetheretherketone (PEEK)	1.5 Ám	59 Áin	N (Normal)	7 A
LEMO HEN.0M.302.XLNP	Panel Mount Through Hole	Aluminum Alloy	80 °C	-20 ░C	Bronze	IP68 - Dust Tight Waterproof	Shielded	Nickel	Metal	302	Receptacle Female Sockets	Gray	Bulkhead - Front Side Nut	Solder	Aerospace Automotive Aviation Military	2	Gold	Potted	Threaded	Polyetheretherketone (PEEK)	1.5 Ám	59 Áin	N (Normal)	10 A
