AON27 Series

Catalog

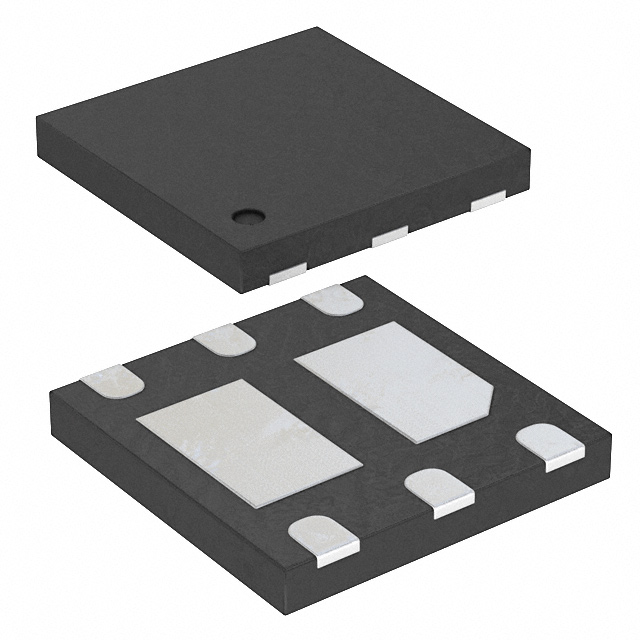

MOSFET P-CH 30V 3A 6DFN

Part	Drain to Source Voltage (Vdss)	Mounting Type	Technology	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	FET Feature	Power Dissipation (Max) [Max]	Supplier Device Package	Current - Continuous Drain (Id) @ 25°C	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	FET Type	Operating Temperature [Max]	Operating Temperature [Min]	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]
Alpha & Omega Semiconductor Inc. AON2705	30 V	Surface Mount	MOSFET (Metal Oxide)	4.5 V 10 V	2.3 V	Schottky Diode (Body)	1.5 W	6-DFN (2x2)	3 A	6 nC	108 mOhm	P-Channel	150 °C	-55 °C	20 V	180 pF
