857-070 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 70POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Flange Feature	Number of Rows [custom]	Features	Contact Material	Read Out	Color	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Termination	Number of Positions/Bay/Row	Contact Finish	Mounting Type	Gender	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 857-070-456-208	Polyphenylene Sulfide (PPS)	2	4-40 Flush Mount Threaded Insert Top Opening	2	Card Extender	Copper Alloy	Dual	Black	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	70	Solder	35	Tin	Board Edge Straddle Mount	Female	Non Specified - Dual Edge	125 °C	-40 C	3.96 mm	0.156 in
EDAC Inc. 857-070-440-202	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded	2		Copper Alloy	Dual	Black	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	70	Wire Wrap	35	Tin	Through Hole	Female	Non Specified - Dual Edge	125 °C	-40 C	3.96 mm	0.156 in	3.25 mm	0.128 "

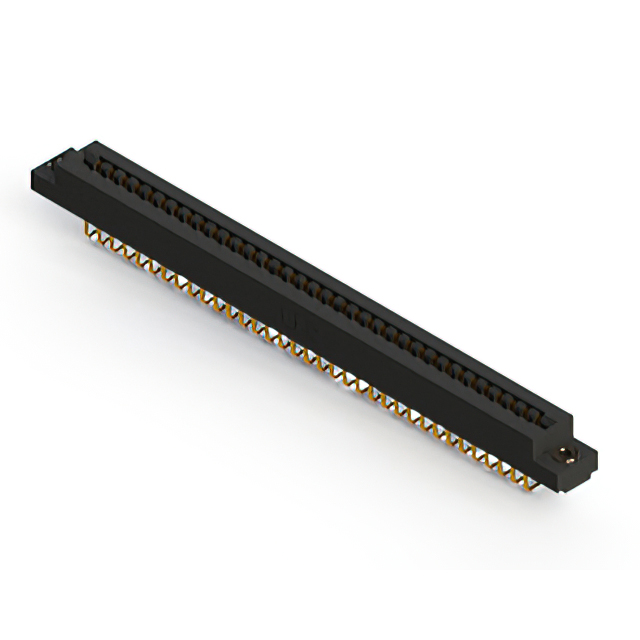

EDAC Inc. 857-070-558-203	Polyphenylene Sulfide (PPS)	2	Floating Bobbin Flush Mount	2		Copper Alloy	Single	Black	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	70	Solder	35	Gold	Right Angle Through Hole	Female	Non Specified - Dual Edge	125 °C	-40 C	3.96 mm	0.156 in	2.95 mm	0.116 "	0.25 Ám	10 Áin

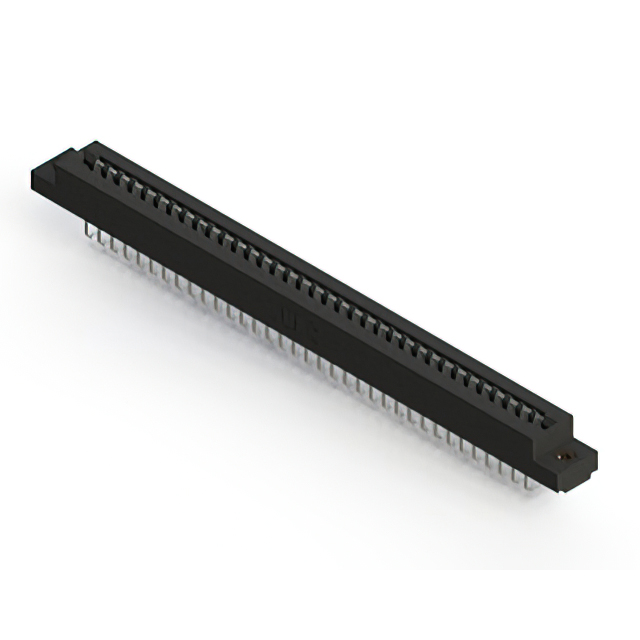

EDAC Inc. 857-070-458-208	Polyphenylene Sulfide (PPS)	2	4-40 Flush Mount Threaded Insert Top Opening	2		Copper Alloy	Single	Black	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	70	Solder	35	Tin	Right Angle Through Hole	Female	Non Specified - Dual Edge	125 °C	-40 C	3.96 mm	0.156 in
EDAC Inc. 857-070-522-201	Polyphenylene Sulfide (PPS)	2		2		Copper Alloy	Dual	Black	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	70	Solder	35	Gold	Through Hole	Female	Non Specified - Dual Edge	125 °C	-40 C	3.96 mm	0.156 in			0.25 Ám	10 Áin
EDAC Inc. 857-070-540-204	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded	2		Copper Alloy	Dual	Black	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	70	Wire Wrap	35	Gold	Through Hole	Female	Non Specified - Dual Edge	125 °C	-40 C	3.96 mm	0.156 in	3.96 mm	0.156 "	0.25 Ám	10 Áin
EDAC Inc. 857-070-424-202	Polyphenylene Sulfide (PPS)	2	Flush Mount Top Opening Unthreaded	2		Copper Alloy	Dual	Black	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	70	Solder	35	Tin	Through Hole	Female	Non Specified - Dual Edge	125 °C	-40 C	3.96 mm	0.156 in	3.25 mm	0.128 "

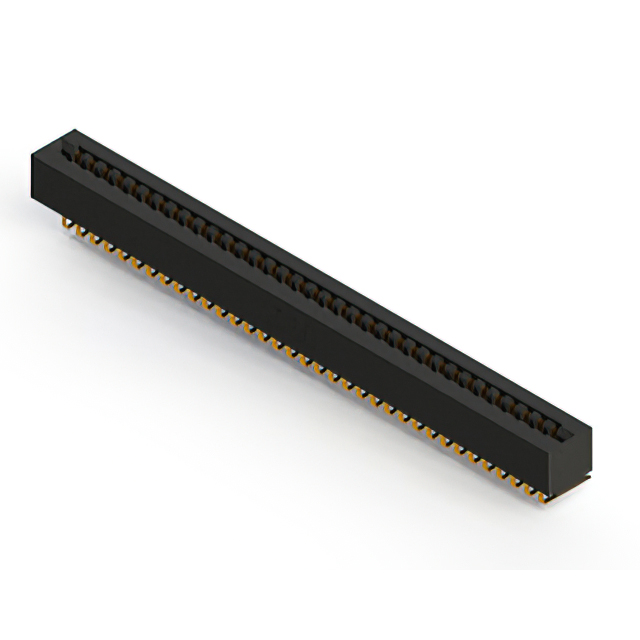

EDAC Inc. 857-070-559-201	Polyphenylene Sulfide (PPS)	2		2		Copper Alloy	Single	Black	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	70	Solder	35	Gold	Right Angle Through Hole	Female	Non Specified - Dual Edge	125 °C	-40 C	3.96 mm	0.156 in			0.25 Ám	10 Áin
EDAC Inc. 857-070-442-212	Polyphenylene Sulfide (PPS)	2	Side Mount Opening Unthreaded	2		Copper Alloy	Dual	Black	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	70	Wire Wrap	35	Tin	Through Hole	Female	Non Specified - Dual Edge	125 °C	-40 C	3.96 mm	0.156 in	3.25 mm	0.128 "
EDAC Inc. 857-070-424-207	Polyphenylene Sulfide (PPS)	2	Flush Mount M3 Threaded Insert Top Opening	2		Copper Alloy	Dual	Black	Semi Bellows	0.07 in 1.78 mm	0.054 in 1.37 mm	70	Solder	35	Tin	Through Hole	Female	Non Specified - Dual Edge	125 °C	-40 C	3.96 mm	0.156 in
