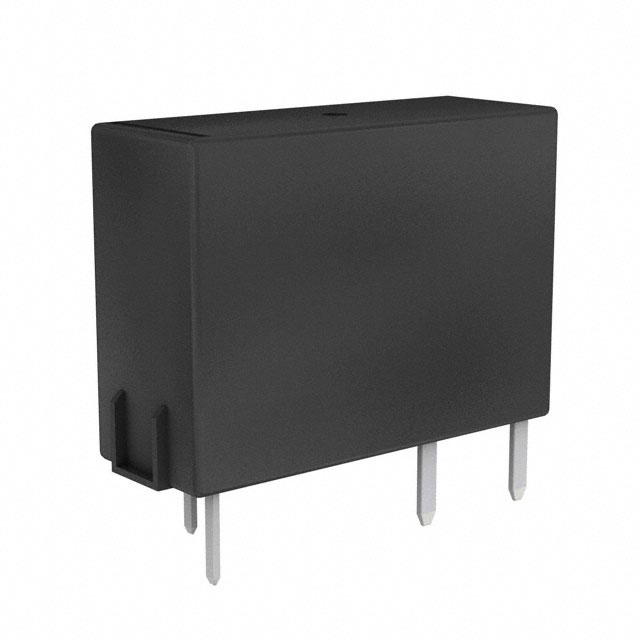

G6D-1A-D Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 5A 24V
| Part | Contact Rating (Current) | Switching Voltage [Max] | Seal Rating | Relay Type | Must Release Voltage | Approval Agency | Coil Current | Coil Type | Coil Voltage | Operate Time | Must Operate Voltage | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Release Time | Mounting Type | Load - Max Switching | Contact Form | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 5 A | 30 VDC 250 VAC | Sealed - Fully | General Purpose | 2.4 VDC | CSA TUV UR | 8.3 mA | Non Latching | 24 VDC | 10 ms | 16.8 VDC | Silver Alloy | 70 °C | -25 °C | PC Pin | 10 ms | Through Hole | 150 W 1250 VA | SPST-NO (1 Form A) | 2.88 kOhms |
