2249 Series

Catalog

RF / COAXIAL CABLE ASSEMBLY, BNC MALE PLUG TO BNC MALE PLUG ON RG174/U CABLE, 12 IN(30.5CM) BLACK

Part	2nd Connector	Overall Impedance	1st Contact Gender	1st Connector	Cable Impedance	Length [x]	Length [x]	2nd Connector Mounting Type	2nd Contact Gender	Cable Type	Features	Style	Color	1st Connector Mounting Type	Length	Length	Length	Frequency - Max [Max]

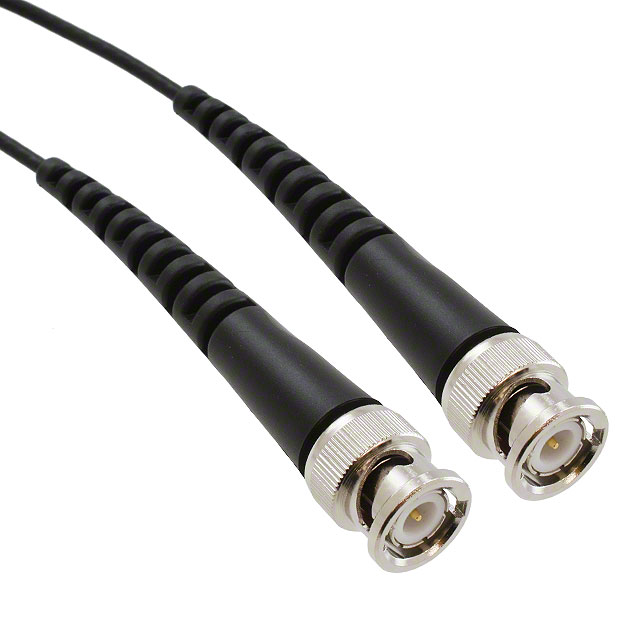

Pomona Electronics 2249-K-12	BNC Plug	50 Ohms	Male	BNC Plug	50 Ohms	304.8 mm	12 in	Free Hanging (In-Line)	Male	RG-174	Shielded	BNC to BNC	Black	Free Hanging (In-Line)
Pomona Electronics 2249-K-72	BNC Plug	50 Ohms	Male	BNC Plug	50 Ohms			Free Hanging (In-Line)	Male	RG-174	Shielded	BNC to BNC	Black	Free Hanging (In-Line)	72 in	1.8 m	6 ft

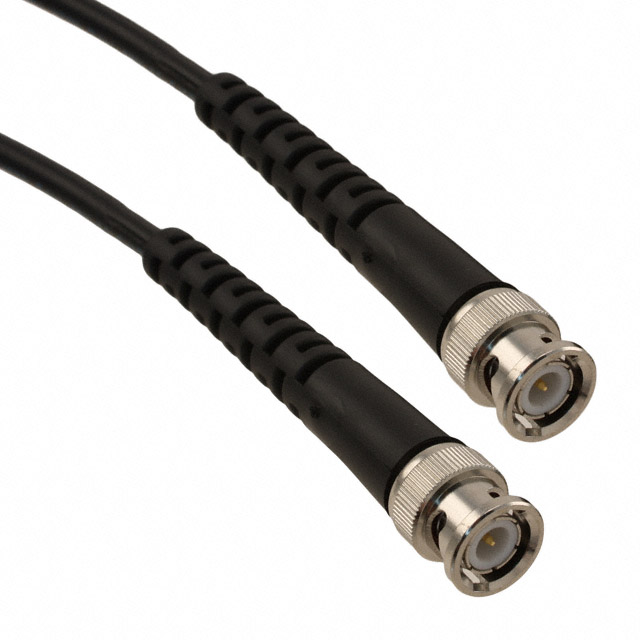

Pomona Electronics 2249-Y-36	BNC Plug	50 Ohms	Male	BNC Plug	50 Ohms			Free Hanging (In-Line)	Male		Shielded	BNC to BNC	Black	Free Hanging (In-Line)	36 in	91.44 cm
Pomona Electronics 2249-C-72	BNC Plug	50 Ohms	Male	BNC Plug	50 Ohms			Free Hanging (In-Line)	Male	RG-58C	Shielded	BNC to BNC	Black	Free Hanging (In-Line)	72 in	1.8 m	6 ft	4 GHz

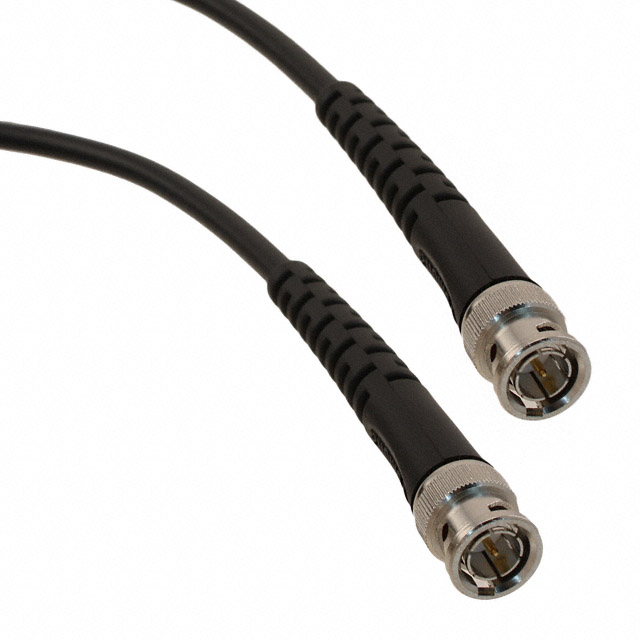

Pomona Electronics 2249-E-6	BNC Plug	75 Ohms	Male	BNC Plug	75 Ohms	152.4 mm	6 "	Free Hanging (In-Line)	Male	RG-59B	Shielded	BNC to BNC	Black	Free Hanging (In-Line)
Pomona Electronics 2249-C-180	BNC Plug	50 Ohms	Male	BNC Plug	50 Ohms			Free Hanging (In-Line)	Male	RG-58C	Shielded	BNC to BNC	Black	Free Hanging (In-Line)	15 '	4.6 m	5 yds	4 GHz

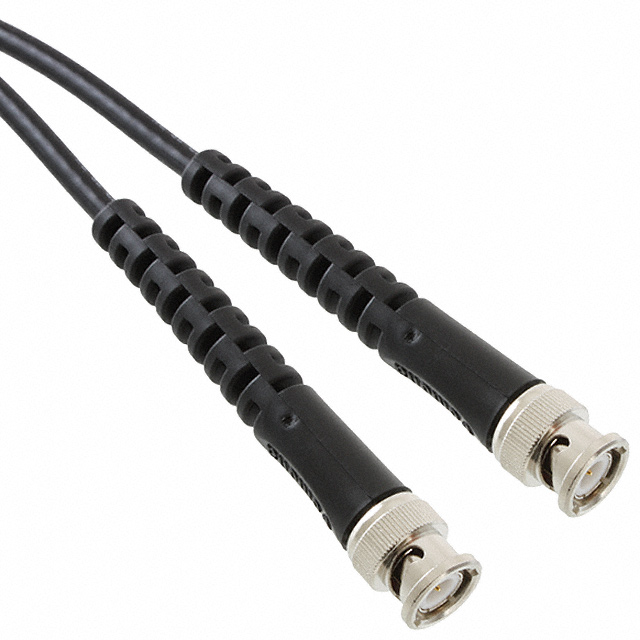

Pomona Electronics 2249-C-60#	BNC Plug	50 Ohms	Male	BNC Plug	50 Ohms			Free Hanging (In-Line)	Male	RG-58C	Shielded	BNC to BNC	Black	Free Hanging (In-Line)	60 in	1.5 m	5 ft	4 GHz
Pomona Electronics 2249-Y-48	BNC Plug	50 Ohms	Male	BNC Plug	50 Ohms			Free Hanging (In-Line)	Male		Shielded	BNC to BNC	Black	Free Hanging (In-Line)	48 in	1200 mm	4 ft

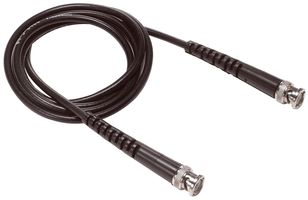

Pomona Electronics 2249-C-300	BNC Plug	50 Ohms	Male	BNC Plug	50 Ohms			Free Hanging (In-Line)	Male	RG-58C	Shielded	BNC to BNC	Black	Free Hanging (In-Line)	25 ft	7.6 m	25 ft	4 GHz
Pomona Electronics 2249-C-240	BNC Plug	50 Ohms	Male	BNC Plug	50 Ohms			Free Hanging (In-Line)	Male	RG-58C	Shielded	BNC to BNC	Black	Free Hanging (In-Line)	20 ft	6.1 m	20 ft	4 GHz
