65818CY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

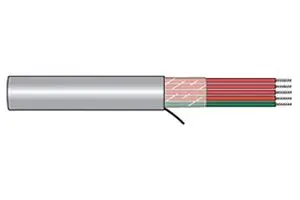

MULTICONDUCTOR CABLE, XTRA GUARD® FLEX, SHIELDED, 18 CONDUCTOR, 18 AWG, 0.81 MM², 100 FT, 30.5 M
| Part | Shield Coverage | Shield Material | Shield Type | Conductor Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Voltage | Length [x] | Length [x] | Cable Type | Features | Wire Gauge | Number of Conductors | Conductor Insulation | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | Braid | Copper Bare | Slate | 17.04 mm | 0.671 in | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | 600 V | 100 ft | 30.5 m | Multi-Conductor | Biological Compatibility | 18 AWG | 18 | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2587 | 0.053 " | 1.346 mm | ||
 ALPHA WIRE | 85 % | Copper Tinned | Braid | Copper Bare | Slate | 17.04 mm | 0.671 in | 16 | 30 AWG | Poly-Vinyl Chloride (PVC) | 600 V | Multi-Conductor | Biological Compatibility | 18 AWG | 18 | Poly-Vinyl Chloride (PVC) | ISO 10993 UL Style 2587 | 0.053 " | 1.346 mm | 304.8 m | 1000 ft |
