6710 Series

Catalog

HOOK-UP STRND 28AWG BLUE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Voltage	Wire Gauge	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Material	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type	Length	Length	Conductor Material	Length [x]	Length [x]
ALPHA WIRE 6710 DB001	-40 C	105 ░C	Blue	0.034 in	0.86 mm	600 V	28 AWG	UL Style 11028	0.009 in	0.23 mm	Polyphenylene Ether Modified (mPPE)	7	36 AWG	Hook-Up	304.8 m	1000 ft	Copper Tinned
ALPHA WIRE 6710 BK013	-40 C	105 ░C	Black	0.034 in	0.86 mm	600 V	28 AWG	UL Style 11028	0.009 in	0.23 mm	Polyphenylene Ether Modified (mPPE)	7	36 AWG	Hook-Up			Copper Tinned
ALPHA WIRE 6710 WH005	-40 C	105 ░C	White	0.034 in	0.86 mm	600 V	28 AWG	UL Style 11028	0.009 in	0.23 mm	Polyphenylene Ether Modified (mPPE)	7	36 AWG	Hook-Up			Copper Tinned	100 ft	30.5 m
ALPHA WIRE 6710 OR013	-40 C	105 ░C	Orange	0.034 in	0.86 mm	600 V	28 AWG	UL Style 11028	0.009 in	0.23 mm	Polyphenylene Ether Modified (mPPE)	7	36 AWG	Hook-Up			Copper Tinned
ALPHA WIRE 6710 GY013	-40 C	105 ░C	Green Yellow Stripe	0.034 in	0.86 mm	600 V	28 AWG	UL Style 11028	0.009 in	0.23 mm	Polyphenylene Ether Modified (mPPE)	7	36 AWG	Hook-Up			Copper Tinned
ALPHA WIRE 6710 BK190	-40 C	105 ░C	Black	0.034 in	0.86 mm	600 V	28 AWG	UL Style 11028	0.009 in	0.23 mm	Polyphenylene Ether Modified (mPPE)	7	36 AWG	Hook-Up	7620 m	25000 '	Copper Tinned
ALPHA WIRE 6710 SL190	-40 C	105 ░C	Slate	0.034 in	0.86 mm	600 V	28 AWG	UL Style 11028	0.009 in	0.23 mm	Polyphenylene Ether Modified (mPPE)	7	36 AWG	Hook-Up	7620 m	25000 '	Copper Tinned
ALPHA WIRE 6710 RD005	-40 C	105 ░C	Red	0.034 in	0.86 mm	600 V	28 AWG	UL Style 11028	0.009 in	0.23 mm	Polyphenylene Ether Modified (mPPE)	7	36 AWG	Hook-Up			Copper Tinned	100 ft	30.5 m
ALPHA WIRE 6710 SL013	-40 C	105 ░C	Slate	0.034 in	0.86 mm	600 V	28 AWG	UL Style 11028	0.009 in	0.23 mm	Polyphenylene Ether Modified (mPPE)	7	36 AWG	Hook-Up			Copper Tinned

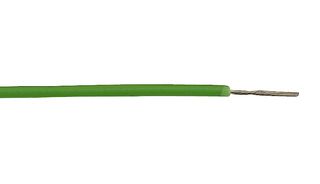

ALPHA WIRE 6710 GR005	-40 C	105 ░C	Green	0.034 in	0.86 mm	600 V	28 AWG	UL Style 11028	0.009 in	0.23 mm	Polyphenylene Ether Modified (mPPE)	7	36 AWG	Hook-Up			Copper Tinned	100 ft	30.5 m
