R14221 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

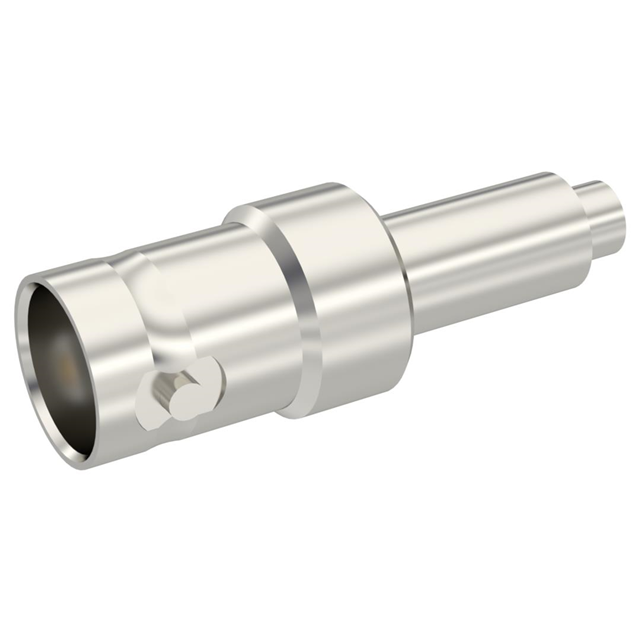

BNC / STRAIGHT JACK CRIMP TYPE C
| Part | Center Contact Plating | Dielectric Material | Body Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Mating Cycles | Mounting Type | Cable Group | Frequency - Max [Max] | Connector Style | Fastening Type | Center Contact Material | Number of Ports | Contact Termination | Impedance | Shield Termination | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | Brass | Nickel | -65 ░C | 165 °C | 335 V | 500 | Free Hanging (In-Line) | RG-179 | 1.5 GHz | BNC | Bayonet Lock | Beryllium Copper | 1 | Crimp | 75 Ohms | Crimp | Female Socket Jack | Silver |
