M2032TX Series

Catalog

SWITCH ROCKER 3PDT 6A 125V

Part	Electrical Life	Mechanical Life	Switch Function	Voltage Rating - AC	Circuit	Features	Termination Style	Voltage Rating - DC	Approval Agency	Actuator Marking	Mounting Type	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Color - Actuator/Cap
NKK Switches M2032TXW13	25000 Steps	50000 Cycles	On-On	125 V	3PDT	Epoxy Sealed Terminals	PC Pin	30 V	CSA UL	Varies by Cap	Through Hole	Actuator Arm Cap Required	85 °C	-30 ░C	4 A 6 A
NKK Switches M2032TXW41/UC-DA	25000 Steps	50000 Cycles	On-On	125 V	3PDT	Epoxy Sealed Terminals	PC Pin		CSA UL	No Marking	Right Angle Through Hole Vertical	Concave	85 °C	-30 ░C	6 A	Black
NKK Switches M2032TXG30-DC	50000 Cycles	50000 Cycles	On-On	28 V	3PDT	Epoxy Sealed Terminals	PC Pin	28 V	CSA UL	No Marking	Right Angle Through Hole	Concave	85 °C	-30 ░C	0.4 VA	Red
NKK Switches M2032TXW13-DC	25000 Steps	50000 Cycles	On-On	125 V	3PDT	Epoxy Sealed Terminals	PC Pin	30 V	CSA UL	No Marking	Through Hole	Concave	85 °C	-30 ░C	4 A 6 A	Red

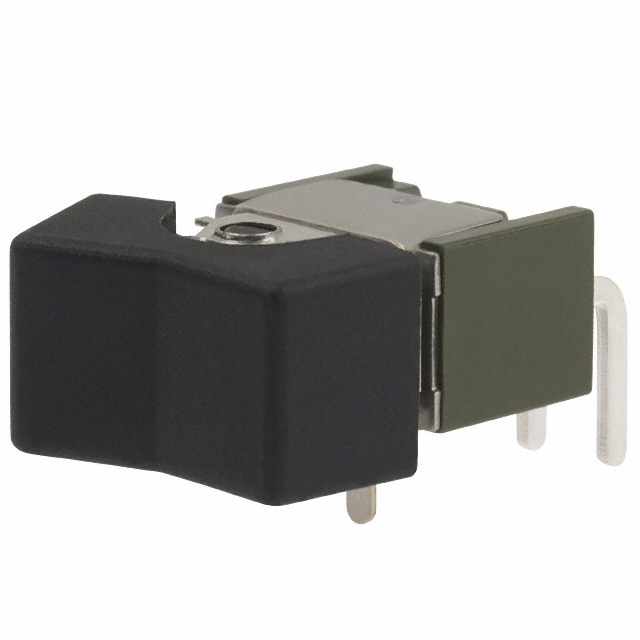

NKK Switches M2032TXW30-DA	25000 Steps	50000 Cycles	On-On	125 V	3PDT	Epoxy Sealed Terminals	PC Pin	30 V	CSA UL	No Marking	Right Angle Through Hole	Concave	85 °C	-30 ░C	4 A 6 A	Black
