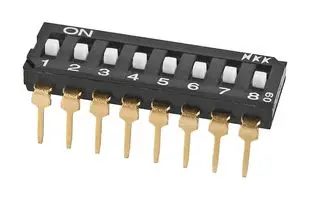

JS0108AP Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH DIP OFF ON SPST 8 EXTENDED SLIDE 0.025A 24VDC PC PINS 2000CYCLES 2.54MM THRU-HOLE BULK
| Part | Electrical Life | Length [x] | Length [x] | Body Material | Mechanical Life | Termination Style | Actuator Type | Circuit | Contact Finish | Actuator Level | Current Rating (Amps) | Height Above Board [z] | Height Above Board | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Material | Pitch | Pitch | Voltage Rating | Washable |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 2000 Steps | 0.837 in | 21.26 mm | Polyamide (PA) Nylon Glass Filled | 2000 Cycles | PC Pin | Slide (Standard) | SPST | Gold | Raised | 25 mA | 0.162 " | 4.11 mm | 8 | -25 °C | 70 °C | Through Hole | Beryllium Copper | 2.54 mm | 0.1 " | 24 VDC |
