EG91 Series

Manufacturer: Quectel

Catalog

RF TXRX MOD CELL NAV SMD

Part	Serial Interfaces	Current - Transmitting	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Mounting Type	Antenna Type	Package / Case	Protocol	Current - Receiving	RF Family/Standard	Operating Temperature [Max]	Operating Temperature [Min]
Quectel EG91NAFB-512-SGNS	I2C PCM SPI UART USB	29 mA	42 Mbps	4.3 V	3.3 V	MDM9207-1	Surface Mount	Antenna Not Included	Module	BeiDou Galileo GLONASS GNSS GPS LTE UMTS WCDMA	29 mA	Cellular Navigation	75 ░C	-35 °C
Quectel EG91EXGA-128-SGNS	I2C PCM SPI UART USB	29 mA	42 Mbps	4.3 V	3.3 V	MDM9207-1	Surface Mount	Antenna Not Included	Module	EDGE GPRS LTE UMTS WCDMA	29 mA	Cellular	75 ░C	-35 °C
Quectel EG91NAXGA-128-SGNS	I2C PCM SPI UART USB	29 mA	42 Mbps	4.3 V	3.3 V	MDM9207-1	Surface Mount	Antenna Not Included	Module	BeiDou Galileo GLONASS GNSS GPS LTE UMTS WCDMA	29 mA	Cellular Navigation	75 ░C	-35 °C

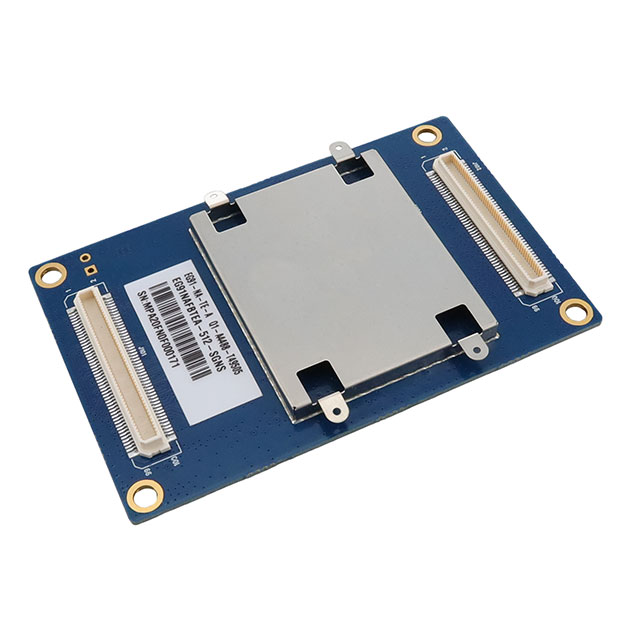

Quectel EG91NAFBTEA-512-SGNS	I2C PCM SPI UART USB	29 mA	42 Mbps	4.3 V	3.3 V		Surface Mount	Antenna Not Included	Module	BeiDou Galileo GLONASS GNSS GPS LTE UMTS WCDMA	29 mA	Cellular Navigation	75 ░C	-35 °C

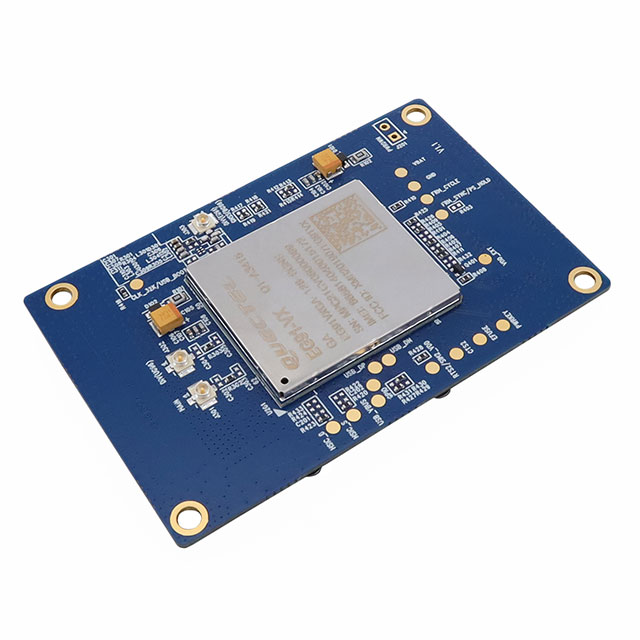

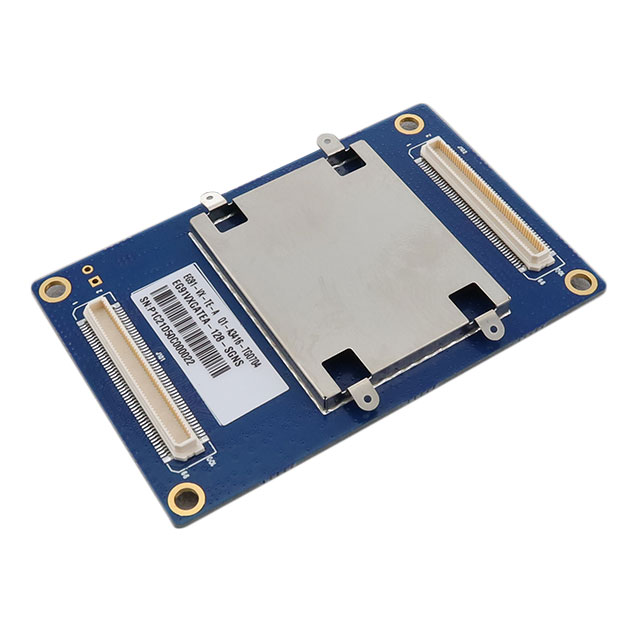

Quectel EG91VXGATEA-128-SGNS	I2C PCM SPI UART USB	29 mA	10 Mbps	4.3 V	3.3 V		Surface Mount	Antenna Not Included	Module	BeiDou Galileo GLONASS GNSS GPS LTE UMTS	29 mA	Cellular Navigation	75 ░C	-35 °C

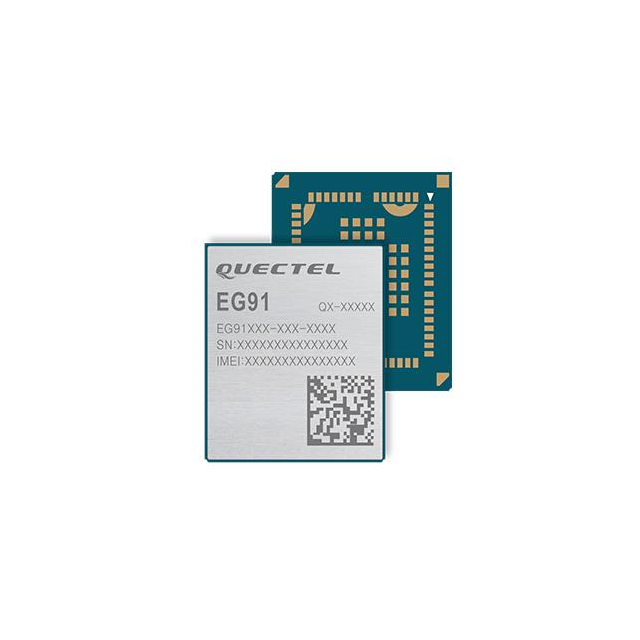

Quectel EG91EFB-512-SNND	I2C PCM SPI UART USB	29 mA	42 Mbps	4.3 V	3.3 V	MDM9207-1	Surface Mount	Antenna Not Included	Module	EDGE GPRS LTE UMTS WCDMA	29 mA	Cellular	75 ░C	-35 °C

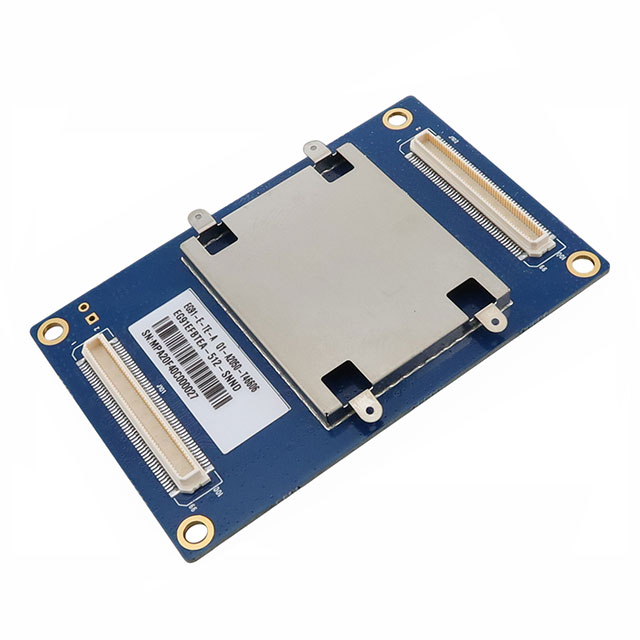

Quectel EG91EFBTEA-512-SNND	I2C PCM SPI UART USB	29 mA	42 Mbps	4.3 V	3.3 V		Surface Mount	Antenna Not Included	Module	EDGE GPRS LTE UMTS WCDMA	29 mA	Cellular	75 ░C	-35 °C
Quectel EG91NSGA-512-SGNS	I2C PCM SPI UART USB	29 mA	42 Mbps	4.3 V	3.3 V		Surface Mount	Antenna Not Included	Module	BeiDou Galileo GLONASS GNSS GPS LTE UMTS WCDMA	29 mA	Cellular Navigation	75 ░C	-35 °C
Quectel EG91VXGA-128-SGNS	I2C PCM SPI UART USB	29 mA	10 Mbps	4.3 V	3.3 V	MDM9207-1	Surface Mount	Antenna Not Included	Module	BeiDou Galileo GLONASS GNSS GPS LTE UMTS	29 mA	Cellular Navigation	75 ░C	-35 °C
