1634202 Series

Catalog

SWITCH ROCKER SPST 10A 125V

Part	Electrical Life	Mechanical Life	Color - Actuator/Cap	Illumination Voltage (Nominal)	Termination Style	Ingress Protection	Approval Agency	Actuator Marking	Actuator Type	Voltage Rating - AC	Illumination Type, Color	Circuit	Current Rating (Amps)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Switch Function	Illumination Type, Color [custom]	Illumination Type, Color [custom]

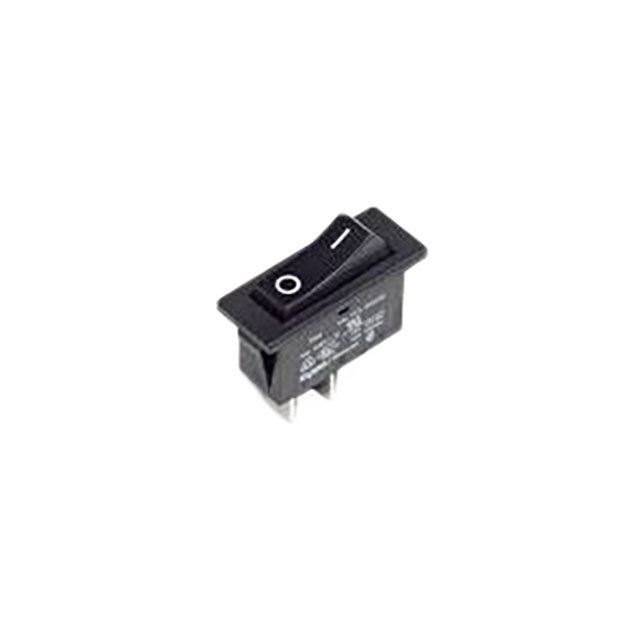

TE Connectivity AMP Connectors 1634202-5	6000 Cycles	100000 Cycles	Red	110 VAC	Quick Connect - 0.250" (6.3mm)	Dust Proof	ENEC UL	No Marking	Concave (Curved) - Illuminated	125 V	Neon Red	SPST	10 A	30.2 mm	11.2 mm	85 °C	-20 ░C	Panel Mount Snap-In	On-Off

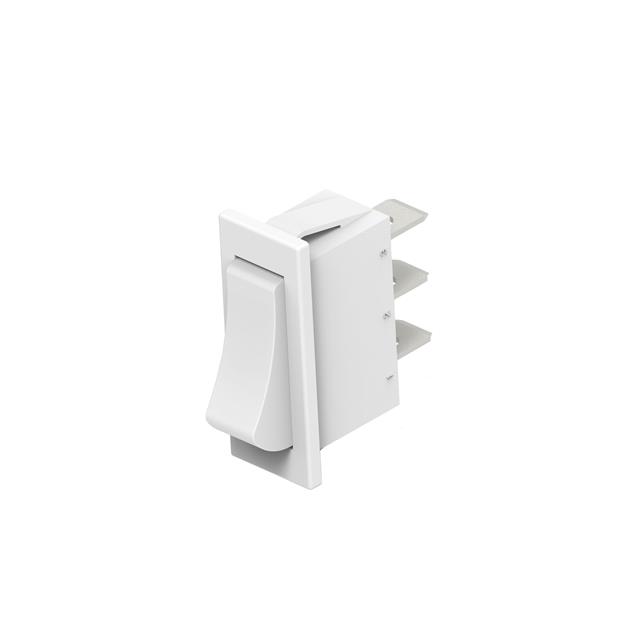

TE Connectivity AMP Connectors 1634202-6	6000 Cycles	100000 Cycles	Green	110 VAC	Quick Connect - 0.250" (6.3mm)	Dust Proof	ENEC UL	No Marking	Concave (Curved) - Illuminated	125 V		SPST	10 A	30.2 mm	11.2 mm	85 °C	-20 ░C	Panel Mount Snap-In	On-Off	Neon	Green
TE Connectivity AMP Connectors 1634202-3	6000 Cycles		Black		Quick Connect - 0.250" (6.3mm)	Dust Proof	ENEC UL	O -	Concave (Curved)	125 V		SPST	10 A	30.2 mm	11.2 mm	85 °C	-20 ░C	Panel Mount Snap-In	On-Off
