HA40201V4 Series

Catalog

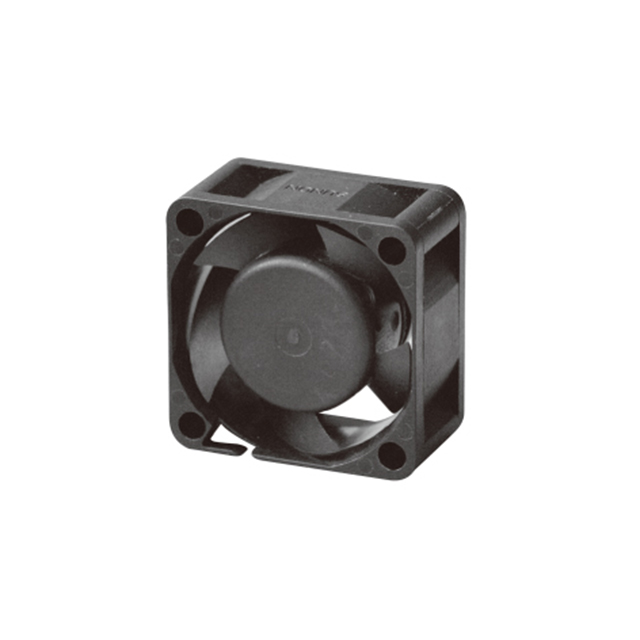

FAN AXIAL 40X20MM 12VDC WIRE

Part	Lifetime @ Temp.	Air Flow	Air Flow	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Bearing Type	Power (Watts)	Width [y]	Features	Termination	Static Pressure	Static Pressure	Approval Agency	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Fan Type	Weight	Weight	RPM	Noise
Sunon Fans HA40201V4-1000U-G99	70000 Hrs	5.5 CFM	0.154 mł/min	Polybutylene Terephthalate (PBT)	4.5 V	13.8 VDC	0.31 A	Vapo-Bearing™	0.38 W	20 mm	Auto Restart Speed Sensor (Tach)	3 Wire Leads	0.1 in H2O	24.9 Pa	CE cUR TUV UL	12 VDC	70 °C	-10 °C	40 mm	40 mm	Tubeaxial	30.84 g	0.068 lb	4500 RPM	12.3 dB(A)
Sunon Fans HA40201V4-1000U-A99	70000 Hrs	5.5 CFM	0.154 mł/min	Polybutylene Terephthalate (PBT)	4.5 V	13.8 VDC	31 mA	Vapo-Bearing™	0.38 W	20 mm	Auto Restart	2 Wire Leads	0.1 in H2O	24.9 Pa	CE cUR TUV UL	12 VDC	70 °C	-10 °C	40 mm	40 mm	Tubeaxial	30.39 g	0.067 lb	4500 RPM	12.3 dB(A)
