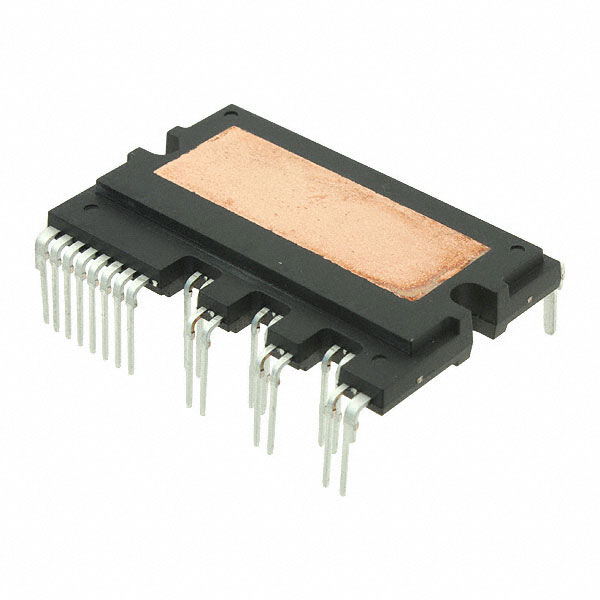

PFC Intelligent Power Module, 600V, 30A
Key Features
• UL Certified No. E209204 (UL1557)
• 600 V - 30 A 2-Phase Bridgeless PFC with Integral Gate Driver and Protection
• Very Low Thermal Resistance Using Al2O3DBC Substrate
• Built-in NTC Thermistor for Temperature Monitoring
• Built-in Shunt Resistor for Current Sensing
• Optimized for 20kHz Switching Frequency
• Isolation Rating: 2500 Vrms/min.
Description
AI
The FPDB30PH60 is a PFC SPM®3 module providing a fully-featured, high-performance Bridgeless PFC (Power Factor Correction) input power stage for consumer, medical, and industrial applications. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while alsoproviding multiple on-module protection features including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting. These modules also feature high-performance output diodes and shunt resistor for additional space savings and mounting convenience.
