83509 Series
Manufacturer: Belden Inc.
Beta
⌘K

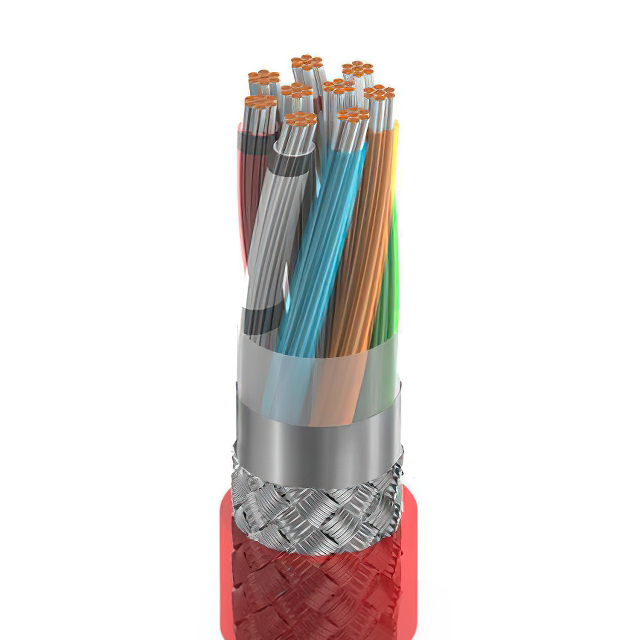

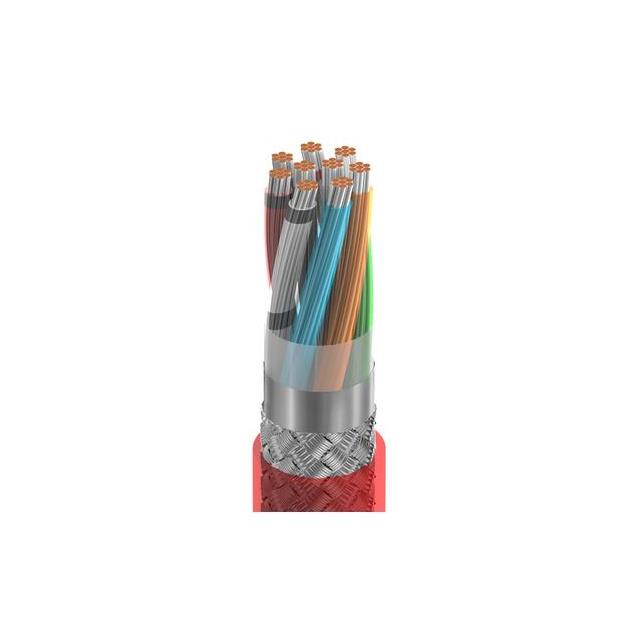

CABLE 9COND 24AWG RED SHLD
| Part | Shield Material | Shield Coverage | Wire Gauge | Jacket Color | Shield Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Voltage | Length | Length | Usage | Cable Type | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 24 AWG | Red | Braid Foil | 4.78 mm | 0.188 " | Fluorinated Ethylene-Propylene (FEP) Plenum | 300 VDC | 304.8 m | 1000 ft | Audio Control Instrumentation | Multi-Conductor | Copper Tinned | 0.014 in | 0.356 mm | UL Style CMP | -70 °C | 200 °C | 7 | 32 AWG | Fluorinated Ethylene-Propylene (FEP) | 9 | ||
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 24 AWG | Red | Braid Foil | 4.78 mm | 0.188 " | Fluorinated Ethylene-Propylene (FEP) Plenum | 300 VDC | Audio Control Instrumentation | Multi-Conductor | Copper Tinned | 0.014 in | 0.356 mm | UL Style CMP | -70 °C | 200 °C | 7 | 32 AWG | Fluorinated Ethylene-Propylene (FEP) | 9 | 100 ft | 30.5 m | ||
Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | 24 AWG | Red | Braid Foil | 4.78 mm | 0.188 " | Fluorinated Ethylene-Propylene (FEP) Plenum | 300 VDC | 152.4 m | 500 ft | Audio Control Instrumentation | Multi-Conductor | Copper Tinned | 0.014 in | 0.356 mm | UL Style CMP | -70 °C | 200 °C | 7 | 32 AWG | Fluorinated Ethylene-Propylene (FEP) | 9 |
