202A132 Series

Manufacturer: TE Connectivity Aerospace, Defense and Marine

Catalog

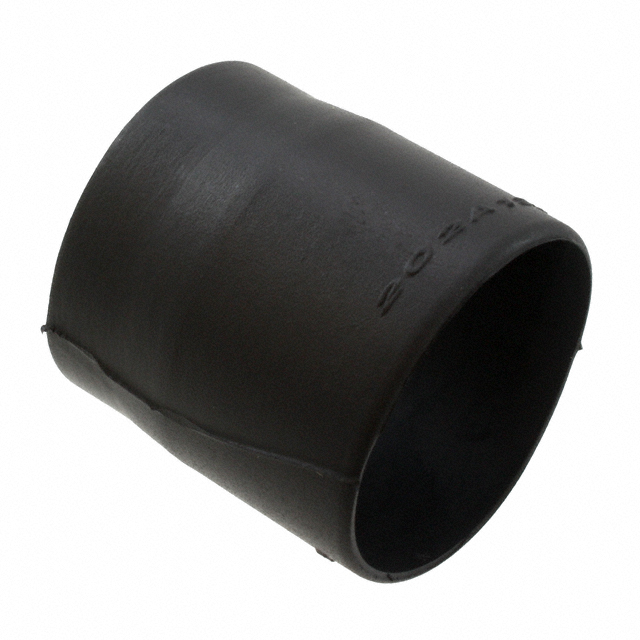

HEATSHRINK BOOT SZ32 BLACK

Part	Color	Large Diameter Recovered [diameter]	Large Diameter Recovered [diameter]	Type	Large Recovered Length	Large Recovered Length	Large Diameter Supplied [diameter]	Large Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Diameter Supplied [diameter]	Small Recovered Length	Small Recovered Length	Total Length Recovered [x]	Total Length Recovered [x]	Small Diameter Recovered [diameter]	Small Diameter Recovered [diameter]	Material	Shell Size - Insert	Features	Total Length Recovered	Total Length Recovered	Large Diameter Supplied	Small Diameter Supplied	Small Diameter Supplied
TE Connectivity Aerospace, Defense and Marine 202A132-100/180-0	Black	0.559 in	14.2 mm	Boot	27.89 mm	1.098 in	26.19 mm	1.031 in	20.32 mm	0.8 in	0.63 in	16 mm	2.02 in	51.31 mm	0.26 "	6.6 mm	Polyolefin (PO) Semi-Flexible Halogen Free	32	Adhesive Coating
TE Connectivity Aerospace, Defense and Marine 202A132-3-27/86-0	Black	0.559 in	14.2 mm	Boot	8.89 mm	0.35 in		1.118 in	28.4 mm	1.118 in					0.26 "	6.6 mm	Polyolefin (PO) Semi-Rigid	32	Adhesive Coating Flame Retardant	23.09 mm	0.909 in	28.4 mm
TE Connectivity Aerospace, Defense and Marine 202A132-25/225-0	Black	0.559 in	14.2 mm	Boot	27.89 mm	1.098 in		1.118 in	28.4 mm	1.118 in	0.63 in	16 mm	2.02 in	51.31 mm	0.26 "	6.6 mm	Elastomer Semi-Rigid	32	Adhesive Coating Fluid Resistant			28.4 mm
TE Connectivity Aerospace, Defense and Marine 202A132-4-00/42-0	Black	0.559 in	14.2 mm	Boot	27.89 mm	1.098 in		1.118 in	28.4 mm	1.118 in	0.63 in	16 mm	2.02 in	51.31 mm	0.26 "	6.6 mm	Polyolefin (PO) Flexible	32	Adhesive Coating Flame Retardant Potting (Injection) Port			28.4 mm
TE Connectivity Aerospace, Defense and Marine 202A132-12-20-0	Black	0.559 in	14.2 mm	Boot									0.78 in	19.81 mm	0.3 in	7.62 mm	Fluoroelastomer (FKM) Flexible	32	Chemical Resistant				0.701 "	17.81 mm
TE Connectivity Aerospace, Defense and Marine 202A132-25/42-0	Black	0.559 in	14.2 mm	Boot	27.89 mm	1.098 in		1.118 in	28.4 mm	1.118 in	0.63 in	16 mm	2.02 in	51.31 mm	0.26 "	6.6 mm	Elastomer Semi-Rigid	32	Adhesive Coating Fluid Resistant			28.4 mm
TE Connectivity Aerospace, Defense and Marine 202A132-4/42-0	Black	0.559 in	14.2 mm	Boot	27.89 mm	1.098 in		1.118 in	28.4 mm	1.118 in	0.63 in	16 mm	2.02 in	51.31 mm	0.26 "	6.6 mm	Polyolefin (PO) Flexible	32	Adhesive Coating Flame Retardant			28.4 mm
