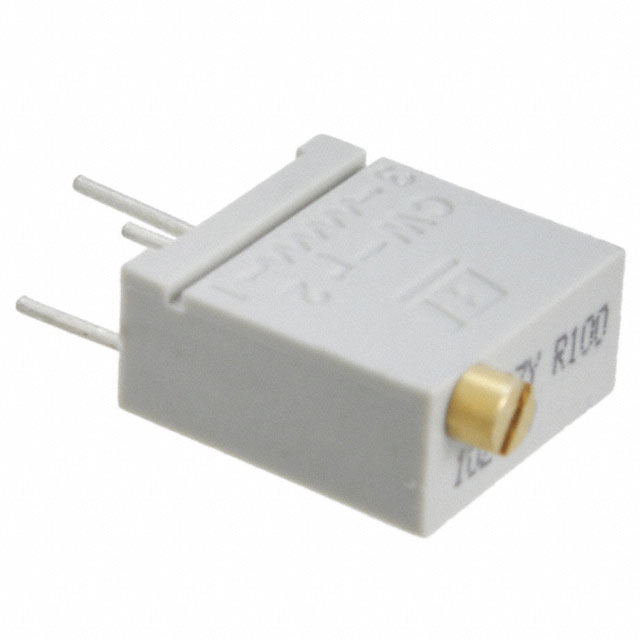

67YR Series

Catalog

TRIMMER 500K OHM 0.5W PC PIN TOP

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Turns	Termination Style	Temperature Coefficient	Adjustment Type	Power (Watts)	Power (Watts)	Resistive Material	Tolerance	Mounting Type	Resistance
TT Electronics/BI 67YR500KLFTB	0.375 in	4.95 mm	0.195 in	9.53 mm	20	PC Pins	100 ppm/°C	Top Adjustment	0.5 W	0.5 W	Cermet	10 %	Through Hole
TT Electronics/BI 67YR500LFTB	0.375 in	4.95 mm	0.195 in	9.53 mm	20	PC Pins	100 ppm/°C	Top Adjustment	0.5 W	0.5 W	Cermet	10 %	Through Hole	0.5 kOhms
TT Electronics/BI 67YR10LF	0.375 in	4.95 mm	0.195 in	9.53 mm	20	PC Pins	250 ppm/°C	Top Adjustment	0.5 W	0.5 W	Cermet	20 %	Through Hole	10 Ohms
TT Electronics/BI 67YR50KLF	0.375 in	4.95 mm	0.195 in	9.53 mm	20	PC Pins	100 ppm/°C	Top Adjustment	0.5 W	0.5 W	Cermet	10 %	Through Hole	50000 Ohms
TT Electronics/BI 67YR2MEGLFTB	0.375 in	4.95 mm	0.195 in	9.53 mm	20	PC Pins	100 ppm/°C	Top Adjustment	0.5 W	0.5 W	Cermet	10 %	Through Hole	2 MOhms
TT Electronics/BI 67YR200LF	0.375 in	4.95 mm	0.195 in	9.53 mm	20	PC Pins	100 ppm/°C	Top Adjustment	0.5 W	0.5 W	Cermet	10 %	Through Hole	200 Ohms
TT Electronics/BI 67YR1KLF	0.375 in	4.95 mm	0.195 in	9.53 mm	20	PC Pins	100 ppm/°C	Top Adjustment	0.5 W	0.5 W	Cermet	10 %	Through Hole	1000 Ohms
TT Electronics/BI 67YR5KLFTB	0.375 in	4.95 mm	0.195 in	9.53 mm	20	PC Pins	100 ppm/°C	Top Adjustment	0.5 W	0.5 W	Cermet	10 %	Through Hole	5 kOhms
TT Electronics/BI 67YR50LF	0.375 in	4.95 mm	0.195 in	9.53 mm	20	PC Pins	250 ppm/°C	Top Adjustment	0.5 W	0.5 W	Cermet	20 %	Through Hole	50 Ohms
TT Electronics/BI 67YR250KLFTB	0.375 in	4.95 mm	0.195 in	9.53 mm	20	PC Pins	100 ppm/°C	Top Adjustment	0.5 W	0.5 W	Cermet	10 %	Through Hole	250000 Ohms
