LCM-H12864 Series

Catalog

LCD GRAPHIC MODULE

Part	Dot Size [y]	Dot Size [x]	Dot Pitch [x]	Dot Pitch [y]	Viewing Area [y]	Viewing Area [x]	Display Type	Backlight	Graphics Color	Dot Pixels [x]	Dot Pixels [y]	Display Mode	Dot Pitch [custom]	Dot Pitch [custom]	Background Color	Interface
Lumex Opto/Components Inc. LCM-H12864GSF/C	0.48 mm	0.48 mm	0.52 mm	0.52 mm	40 mm	72 mm	STN - Super-Twisted Nematic	LED	Gray	128	64	Transflective

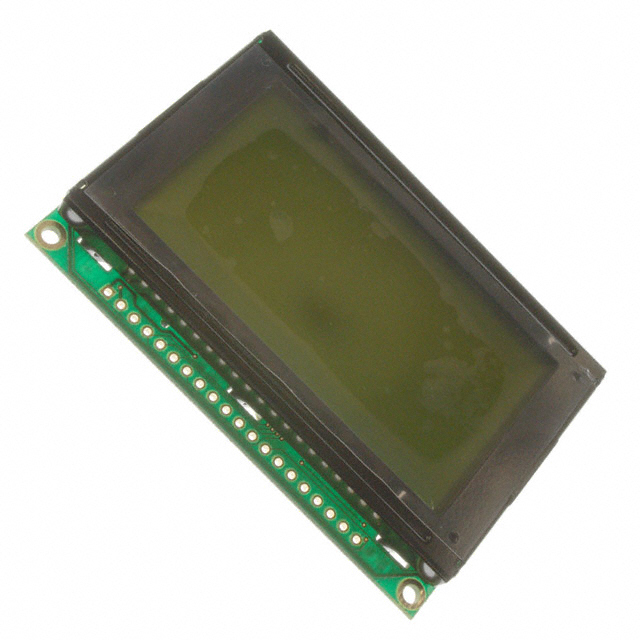

Lumex Opto/Components Inc. LCM-H12864GSF/H-Y	0.4 mm	0.4 mm			32.5 mm	60 mm	STN - Super-Twisted Nematic		Gray	128	64	Transflective	0.43 mm	0.43 mm	Green	8-Bit Parallel
