213523 Series

Manufacturer: Molex

Catalog

698MHZ-2.7GHZ LTE HINGED EXTERNAL ANTENNA, WITH SMA MALE CONNECTOR, WHITE

Part	Gain	Antenna Type	Number of Bands	Frequency Group [Min]	Frequency Group [Max]	Frequency (Center/Band)	Return Loss	Mounting Type	Frequency Range [Max]	Frequency Range [Min]	Applications	RF Family/Standard	Height (Max) [Max]	Height (Max) [Max]	Termination	Frequency Group

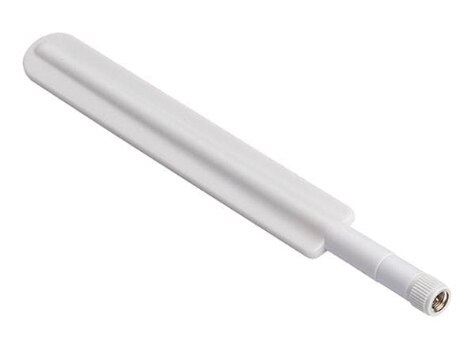

Molex 2135231001	2.3 dBi 4.8 dBi	Blade Tilt	2	2 GHz 300 MHz	1 GHz 3 GHz	2.2 GHz 829 MHz	-10 dB -5 dB	Connector Mount	2.69 GHz 960 MHz	1.71 GHz 698 MHz	LTE	Cellular	171.5 mm	6.752 in
Molex 2135231011	2.3 dBi 4.8 dBi	Blade Tilt Whip Straight	2	2 GHz 300 MHz	1 GHz 3 GHz	2.2 GHz 829 MHz	-10 dB -5 dB	Connector Mount	2.69 GHz 960 MHz	1.71 GHz 698 MHz	LTE	Cellular	171.5 mm	6.752 in	RP-SMA Female	Wide Band

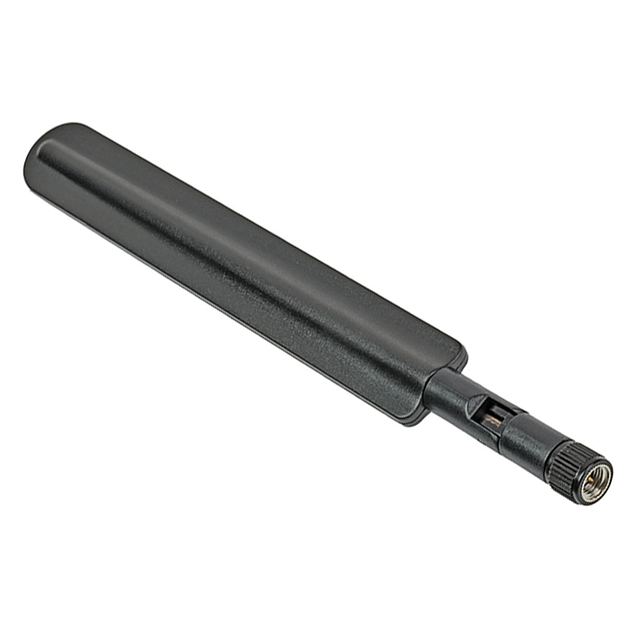

Molex 2135230001	2.3 dBi 4.8 dBi	Blade Tilt	2	2 GHz 300 MHz	1 GHz 3 GHz	2.2 GHz 829 MHz	-10 dB -5 dB	Connector Mount	2.69 GHz 960 MHz	1.71 GHz 698 MHz	LTE	Cellular	171.5 mm	6.752 in

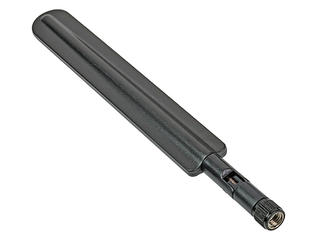

Molex 2135230011	2.3 dBi 4.8 dBi	Blade Tilt	2	2 GHz 300 MHz	1 GHz 3 GHz	2.2 GHz 829 MHz	-10 dB -5 dB	Connector Mount	2.69 GHz 960 MHz	1.71 GHz 698 MHz	LTE	Cellular	171.5 mm	6.752 in	RP-SMA Female
