4006-0 Series

Catalog

CONN PC PIN CIRC .016DIA TINLEAD

Part	Length - Overall [x]	Length - Overall [x]	Pin Size - Below Flange [diameter]	Pin Size - Below Flange [diameter]	Length - Above Flange [x]	Length - Above Flange [x]	Contact Finish Thickness	Contact Finish Thickness	Pin Size - Above Flange [diameter]	Pin Size - Above Flange [diameter]	Terminal Style	Contact Material	Terminal Type	Contact Finish	Insulation	Length - Below Flange [x]	Length - Below Flange [x]	Mounting Type	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination
Mill-Max Manufacturing Corp. 4006-0-00-01-00-00-03-0	8.1 mm	0.319 in	0.016 in	0.41 mm	0.118 in	3 mm	200 Áin	5.08 Ám	0.016 in	0.41 mm	Double End	Brass Alloy	PC Pin	Tin-Lead	Non-Insulated	0.118 "	3 mm	Through Hole	0.034 in	0.86 mm	Hex Press-Fit
Mill-Max Manufacturing Corp. 4006-0-00-34-00-00-03-0	8.1 mm	0.319 in	0.016 in	0.41 mm	0.118 in	3 mm	50 µin	1.27 µm	0.016 in	0.41 mm	Double End	Brass Alloy	PC Pin	Gold	Non-Insulated	0.118 "	3 mm	Through Hole	0.034 in	0.86 mm	Hex Press-Fit

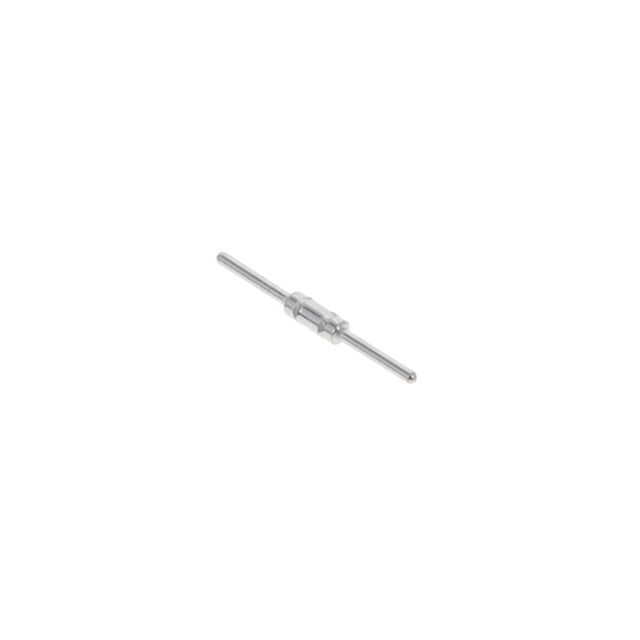

Mill-Max Manufacturing Corp. 4006-0-00-80-00-00-03-0	8.1 mm	0.319 in	0.016 in	0.41 mm	0.118 in	3 mm	200 Áin	5.08 Ám	0.016 in	0.41 mm	Double End	Brass Alloy	PC Pin	Tin	Non-Insulated	0.118 "	3 mm	Through Hole	0.034 in	0.86 mm	Hex Press-Fit
