PPL24U Series
Manufacturer: Phihong USA
Beta
⌘K

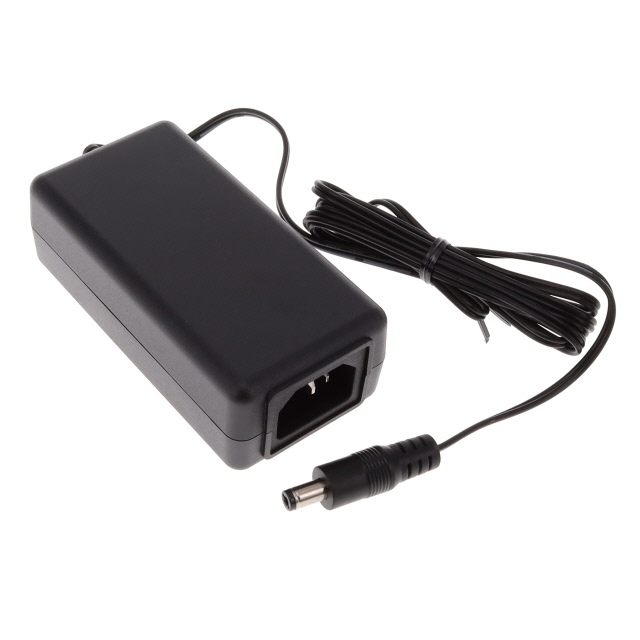

AC/DC DESKTOP ADAPTER 48V 24W
| Part | Efficiency | Current - Output (Max) [Max] | Voltage - Output | Output Connector [x] | Output Connector [diameter] | Output Connector | Applications | Voltage - Input [Min] | Voltage - Input [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Cord Length | Cord Length | No Load Power Consumption | Polarization | Power (Watts) | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Standard Number | Input Type | Approval Agency | Form | Region Utilized | Input Connector |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phihong USA | CoC Tier 2 Level VI | 500 mA | 48 V | 10 mm | 2.1 mm 5.5 mm | Barrel Plug | ITE (Commercial) | 100 VAC | 240 VAC | 40 °C | 0 °C | 1.5 m | 59 in | 75 mW | Positive Center | 24 W | 1.97 in | 50 mm | 1.3 in | 100 mm | 3.94 in | 33 mm | 62368-1 | Cord (Sold Separately) | cULus IEC | Desktop (Class I) | International | IEC 320-C14 |
