PSAC05 Series

Catalog

AC/DC WALL MOUNT ADAPTER 5V 5W

Part	Output Connector	No Load Power Consumption	Region Utilized	Cord Length	Cord Length	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Weight [custom]	Weight [custom]	Form	Approval Agency	Power (Watts)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Input Connector	Voltage - Output	Applications	Standard Number	Efficiency	Input Type	Output Connector [x]	Output Connector [diameter]	Polarization	Weight	Weight

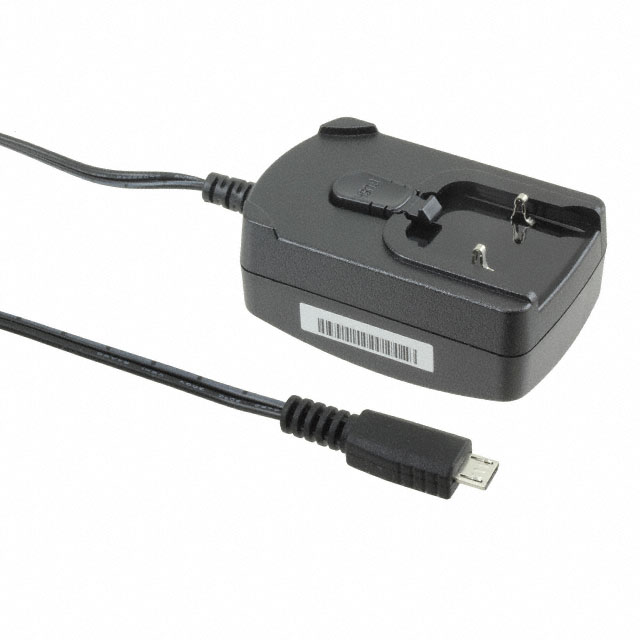

Phihong USA PSAC05R-050L6M	USB Micro	30 mW	International	1.5 m	59 in	264 VAC	90 VAC	1 A	40 °C	0 °C	0.265 lb	120.2 g	Wall Mount	CB CE cULus TUVgs	5 W	71.7 mm	1.77 in	29.8 mm	1.17 "	45 mm	2.82 in	Multi-Blade	5 V	ITE (Commercial)	60950-1 62368-1	CoC Tier 2 Level VI	Multi-Blade (Sold Separately)
Phihong USA PSAC05R-050L6B	USB Mini	30 mW	International	1.5 m	59 in	264 VAC	90 VAC	1 A	40 °C	0 °C	0.265 lb	120.2 g	Wall Mount	CB CE cULus TUVgs	5 W	71.7 mm	1.77 in	29.8 mm	1.17 "	45 mm	2.82 in	Multi-Blade	5 V	ITE (Commercial)	60950-1 62368-1	CoC Tier 2 Level VI	Multi-Blade (Sold Separately)
Phihong USA PSAC05R-050L6	Barrel Plug	30 mW	International	1.5 m	59 in	264 VAC	90 VAC	1 A	40 °C	0 °C	0.265 lb	120.2 g	Wall Mount	CB CE cULus TUVgs	5 W	71.7 mm	1.77 in	29.8 mm	1.17 "	45 mm	2.82 in	Multi-Blade	5 V	ITE (Commercial)	60950-1 62368-1	CoC Tier 2 Level VI	Multi-Blade (Sold Separately)	10 mm	2.1 mm 5.5 mm	Positive Center
Phihong USA PSAC05R-050QL6-R
Phihong USA PSAC05R-050L6-R-C2	Barrel Plug	30 mW	International	1.5 m	59 in	264 VAC	90 VAC	1 A	40 °C	0 °C	0.265 lb	120.2 g	Wall Mount	AS/NZS cULus IEC PSE	5 W	71.7 mm	1.77 in	29.8 mm	1.17 "	45 mm	2.82 in	Multi-Blade	5 V	ITE (Commercial)	60950-1 62368-1	CoC Tier 2 Level VI	Multi-Blade (Sold Separately)	10 mm	2.5 mm 5.5 mm	Positive Center

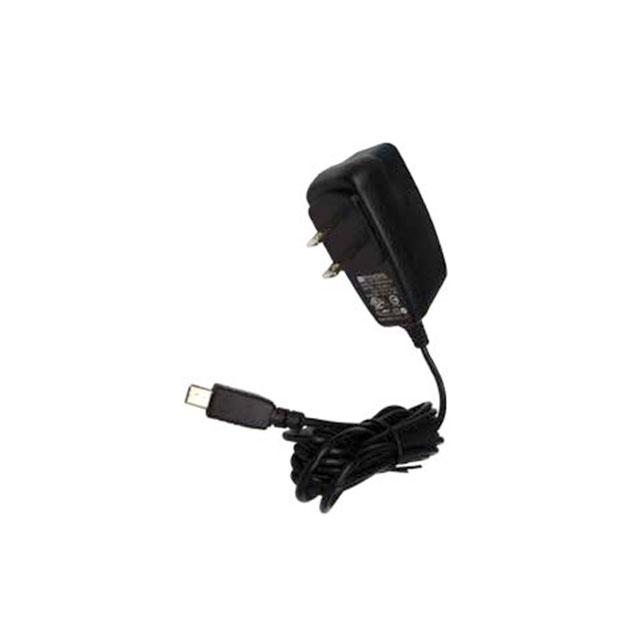

Phihong USA PSAC05A-050L6M	USB Micro	75 mW	North America	1.5 m	59 in	264 VAC	90 VAC	1 A	40 °C	0 °C			Wall Mount	CB cULus PSE	5 W	66.5 mm	1.1 in	36 mm	1.42 "	28 mm	2.62 "	NEMA 1-15P	5 V	ITE (Commercial)		Level VI	Fixed Blade				85.28 g	0.188 lb
