AA04S Series

Catalog

AC/DC CONVERTER 12V 4W

Part	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Load Regulation	Line Regulation	Standard Number	Approval Agency	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Features	Applications	Type	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Current - Output (Max) [Max]	Power (Watts)	Mounting Type	Voltage - Output 1	Package / Case	Number of Outputs	Line Regulation	Load Regulation
Delta Electronics AA04S1200A	-25 °C	60 °C	0.057 lb	25.85 g	Ý0.5%	Ý0.5%	60950-1	CE UL	1.06 in	1.44 in	17.1 mm	0.67 in	27 mm	36.5 mm	Universal Input	ITE (Commercial)	Enclosed	85 VAC 120 VDC	264 VAC 370 VDC	76 %	333 mA	4 W	Through Hole	12 V	7-DIP Module 6 Leads	1
Delta Electronics AA04S0500A	-25 °C	60 °C	0.057 lb	25.85 g	Ý0.5%	Ý0.5%	60950-1	CE UL	1.06 in	1.44 in	17.1 mm	0.67 in	27 mm	36.5 mm	Universal Input	ITE (Commercial)	Enclosed	85 VAC 120 VDC	264 VAC 370 VDC	72 %	0.8 A	4 W	Through Hole	5 V	7-DIP Module 6 Leads	1
Delta Electronics AA04S1500A	-25 °C	60 °C	0.057 lb	25.85 g			60950-1	CE UL	1.06 in	1.44 in	17.1 mm	0.67 in	27 mm	36.5 mm	Universal Input	ITE (Commercial)	Enclosed	85 VAC 120 VDC	264 VAC 370 VDC	76 %	267 mA	4 W	Through Hole	15 V	7-DIP Module 6 Leads	1	0.5 %	0.5 %

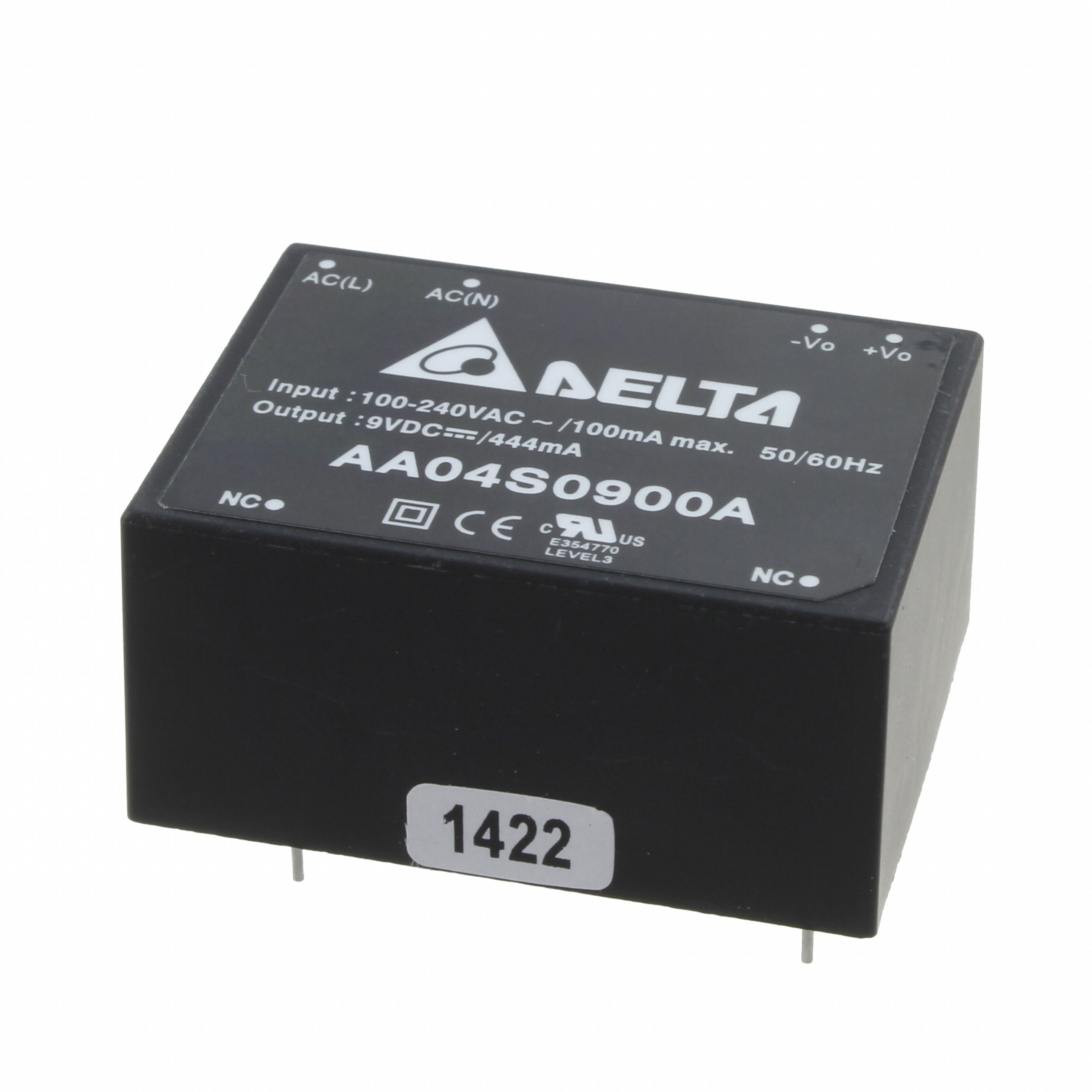

Delta Electronics AA04S0900A	-25 °C	60 °C	0.057 lb	25.85 g	Ý0.5%	Ý0.5%	60950-1	CE UL	1.06 in	1.44 in	17.1 mm	0.67 in	27 mm	36.5 mm	Universal Input	ITE (Commercial)	Enclosed	85 VAC 120 VDC	264 VAC 370 VDC	75 %	444 mA	4 W	Through Hole	9 V	7-DIP Module 6 Leads	1
