LTGGO501 Series

Catalog

SWITCH ROCKER SPST 15A 125V

Part	Electrical Life	Mounting Type	Switch Function	Approval Agency	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Termination Style	Actuator Type	Voltage Rating - AC	Actuator Marking	Color - Actuator/Cap	Current Rating (Amps)	Circuit	Illumination Voltage (Nominal)	Illumination Type, Color	Operating Temperature [Max]
Carling Technologies LTGGO501-TB-B-R/125N	50000 Cycles	Panel Mount Snap-In	On-Off	CSA UL	25.4 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	125 V	No Marking	Black	15 A	SPST	125 VAC	Neon	85 °C
Carling Technologies LTGGO501-TB-B-R/250N	50000 Cycles	Panel Mount Snap-In	On-Off	CSA UL	25.4 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	125 V	No Marking	Black	15 A	SPST	250 VAC	Neon	85 °C

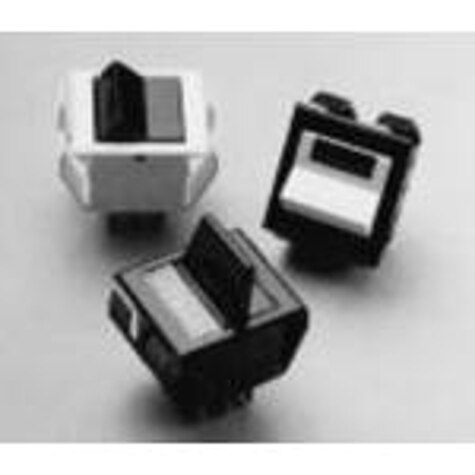

Carling Technologies LTGGO501-TB-B-R/12V	50000 Cycles	Panel Mount Snap-In	On-Off	CSA UL	25.4 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	125 V	No Marking	Black	15 A	SPST	12 VAC/DC	Incandescent	85 °C
Carling Technologies LTGGO501-TW-B-R/12V	50000 Cycles	Panel Mount Snap-In	On-Off	CSA UL	25.4 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	125 V	No Marking	White	15 A	SPST	12 VAC/DC	Incandescent White	85 °C
Carling Technologies LTGGO501-TW-B-R/24V	50000 Cycles	Panel Mount Snap-In	On-Off	CSA UL	25.4 mm	28.58 mm	Quick Connect - 0.250" (6.3mm)	Concave (Standard V) - Illuminated	125 V	No Marking	White	15 A	SPST	24 VAC/DC	Incandescent White	85 °C
