ENTUBE SE Series

Catalog

TRANSDUCER VOLTAGE DIVIDER

Part	Input Voltage (Min)	Input Voltage (Max)	Type	Operating Temperature (Max)	Operating Temperature (Min)	Output Current (Min)	Output Voltage Tolerance	Output Current (Max)	Accuracy	Termination Style	Mounting Type	Output Voltage (Min)	Output Voltage (Max)

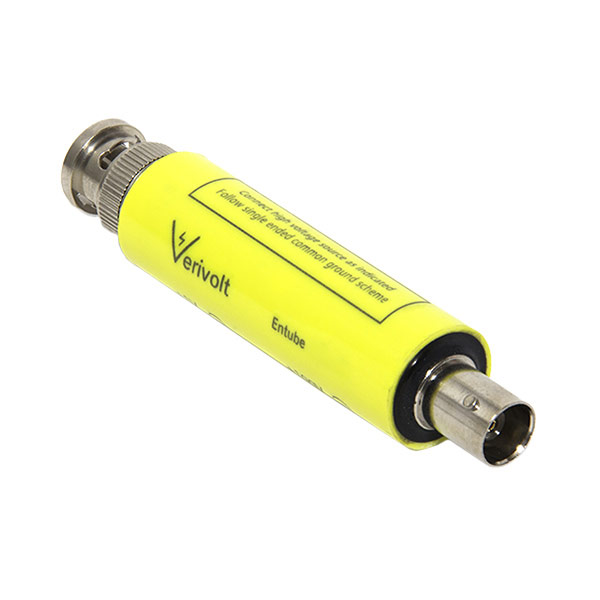

Verivolt LLC ENTUBE SE STD (3000V)	-3000 V	3000 V	Voltage Transducer	70 °C	-25 °C	-5 V	5 V	5 V	0.2 %	BNC SHV

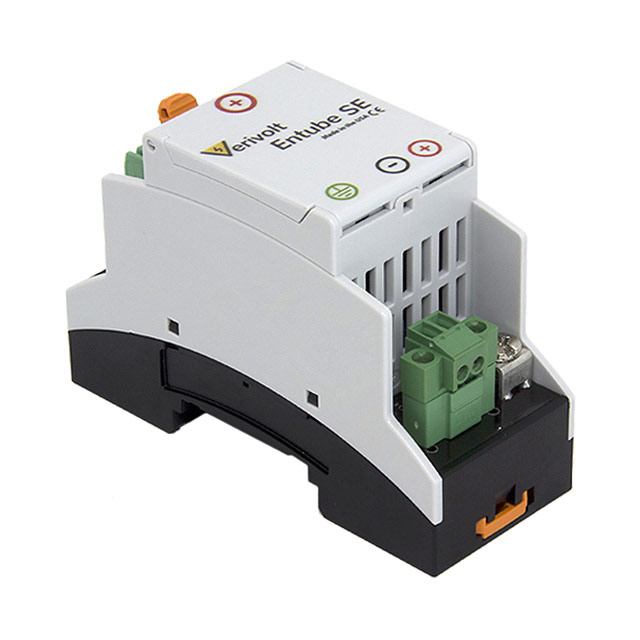

Verivolt LLC ENTUBE SE (50V 5V)	-50 V	50 V	Voltage Transducer	70 °C	-25 °C	-5 V	5 V	5 V	0.2 %	Spring Terminal	DIN Rail
Verivolt LLC ENTUBE SE STD (250VAC 7VAC)	0 mV	250 VAC	Voltage Transducer	70 °C	-25 °C				0.2 %	BNC		0 V	7 V
Verivolt LLC ENTUBE SE (50V 10V)	-50 V	50 V	Voltage Transducer	70 °C	-25 °C	-10 V		10 V	0.2 %	Spring Terminal	DIN Rail	-10 V	10 V
Verivolt LLC ENTUBE SE STD (100V)	-100 V	100 V	Voltage Transducer	70 °C	-25 °C	-5 V	5 V	5 V	0.2 %	BNC
Verivolt LLC ENTUBE SE STD (50V)	-50 V	50 V	Voltage Transducer	70 °C	-25 °C	-5 V	5 V	5 V	0.2 %	BNC
Verivolt LLC ENTUBE SE (100V 10V)	-100 V	100 V	Voltage Transducer	70 °C	-25 °C	-10 V		10 V	0.2 %	Spring Terminal	DIN Rail	-10 V	10 V
Verivolt LLC ENTUBE SE STD (500VAC 7VAC)	0 mV	500 V	Voltage Transducer	70 °C	-25 °C				0.2 %	BNC		0 V	7 V

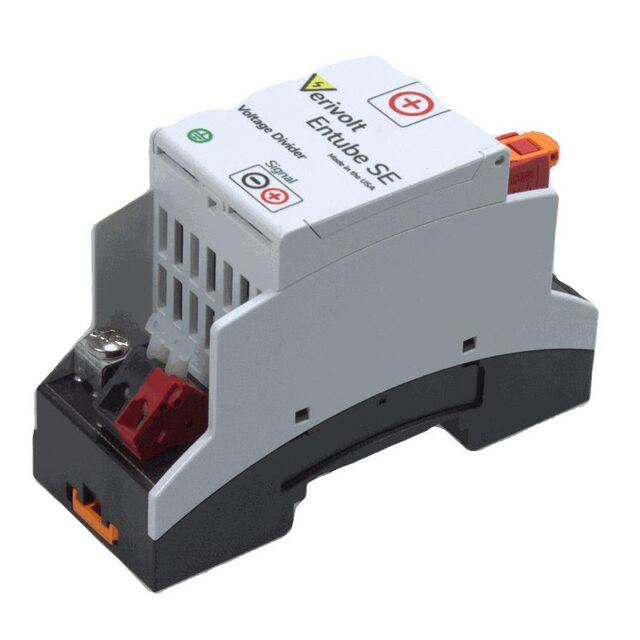

Verivolt LLC ENTUBE SE (1500V 10V)	-1500 V	1500 V	Voltage Transducer	70 °C	-25 °C	-10 V		10 V	0.2 %	Spring Terminal	DIN Rail	-10 V	10 V

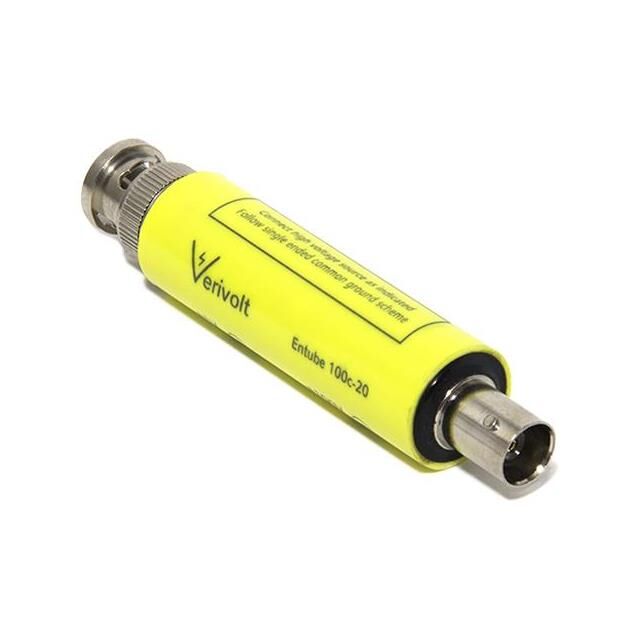

Verivolt LLC ENTUBE SE STD (1000V)	-1000 V	1000 V	Voltage Transducer	70 °C	-25 °C	-5 V	5 V	5 V	0.2 %	BNC SHV
