5702 Series

Manufacturer: BRADY

Catalog

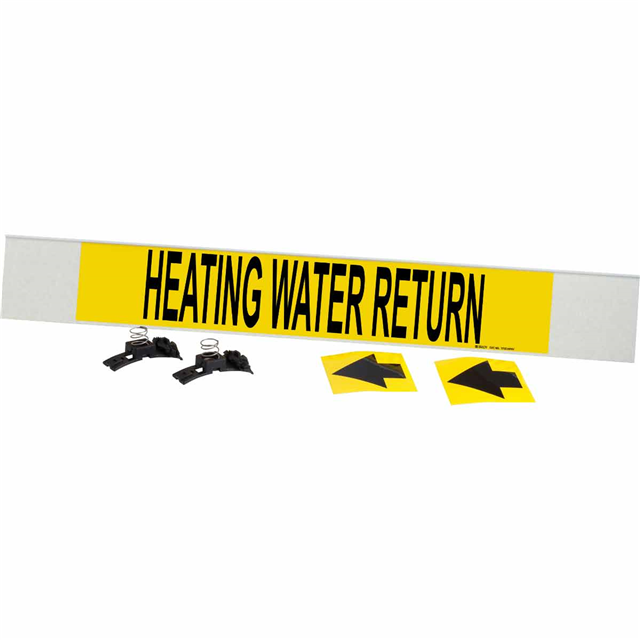

5702-HPHV HEATING WATER RET/YEL/

Part	Location	Features	Material - Body	Arrangement	Mounting Type	Length [x]	Length [x]	Shape	Print Type	Color - Background	Color - Legend	Legend (Text)	Applications	Width [x]	Width [x]	Language	Application Specifics	Legend (Symbol Only)	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Max) [Max] [diameter]	Outside Pipe Diameter (Min)	Outside Pipe Diameter (Min) [Min]	Outside Pipe Diameter (Max) [diameter]	Outside Pipe Diameter (Max) [diameter]	Width	Width	Length	Length	Length [x]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Max) [Max]	Outside Pipe Diameter (Min) [Min]
BRADY 5702-HPHV	Outdoor	Abrasion Resistant Chemical Resistant	Polyester (PET)	Symbol and Text	Requires Holder	609.6 mm	24 in	Rectangle	Pre-Printed	Yellow	Black	Heating Water Return	Pipe	101.6 mm	4 in	63000 A 69000 A	Directionality	Directional Arrow	203.2 mm	8 in
BRADY 5702-I	Outdoor	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Plastic	Symbol and Text	Snap On			Rectangle	Pre-Printed	Yellow	Black	Heating Water Return	Pipe			63000 A 69000 A	Directionality	Directional Arrow			60.33 mm	2.375 in	1.5 in	38.1 mm	8 in	203.2 mm	9 in	228.6 mm
BRADY 5702-II	Outdoor	Abrasion Resistant Chemical Resistant Humidity Resistant UV Resistant Water Resistant Weather Resistant	Plastic	Symbol and Text	Snap On	660.4 mm		Rectangle	Pre-Printed	Yellow	Black	Heating Water Return	Pipe			63000 A 69000 A	Directionality	Directional Arrow				7.875 in			12 in	304.8 mm			26 in	63.5 mm	2.5 in	200.03 mm
