845-108 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 108POS 0.100
| Part | Termination Rows [custom] | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Gender | Termination | Color | Number of Rows [custom] | Read Out | Contact Type | Card Thickness [Max] | Card Thickness [Min] | Contact Finish | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Contact Material | Pitch | Pitch | Card Type | Number of Positions/Bay/Row | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

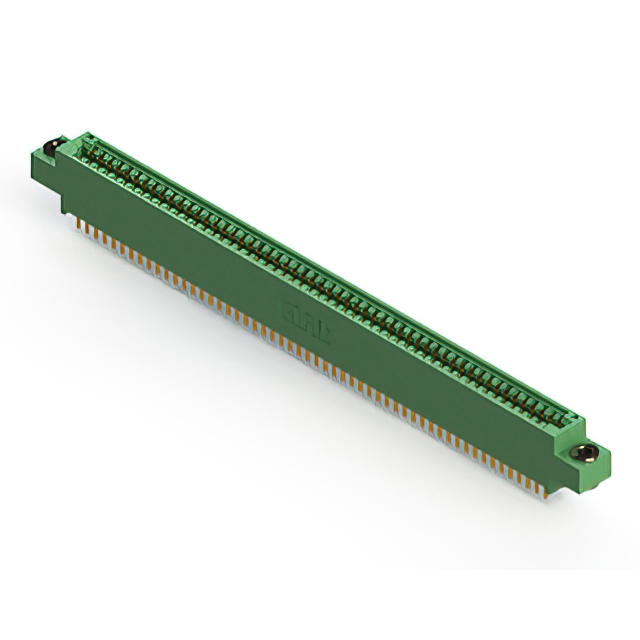

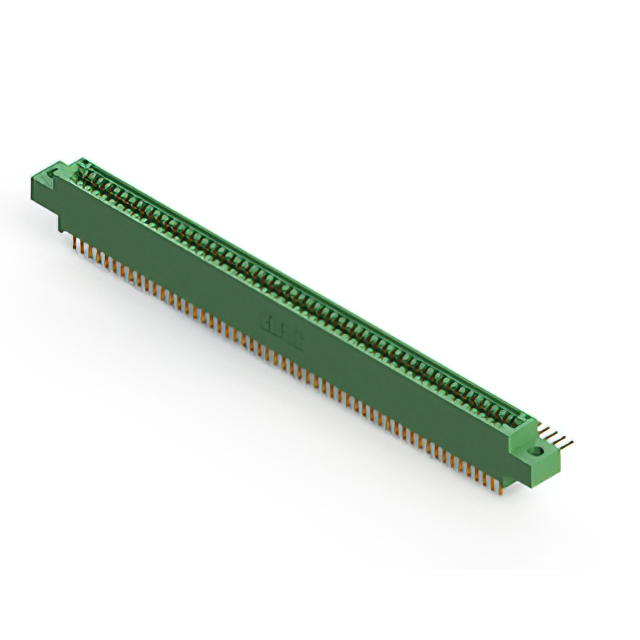

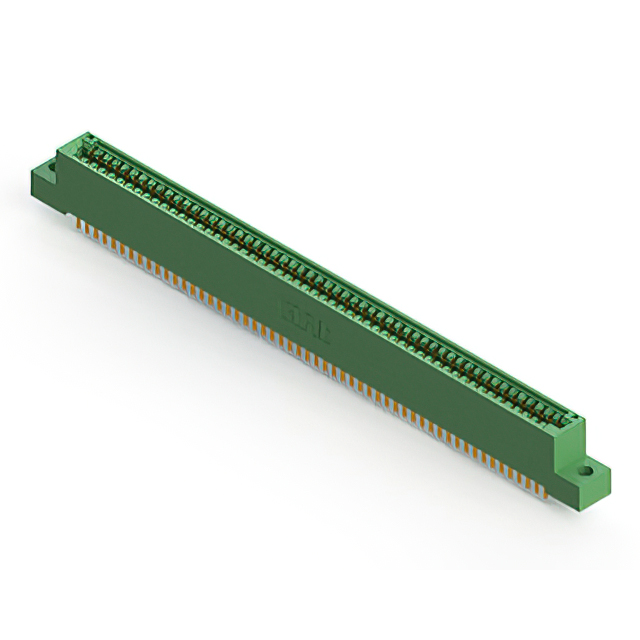

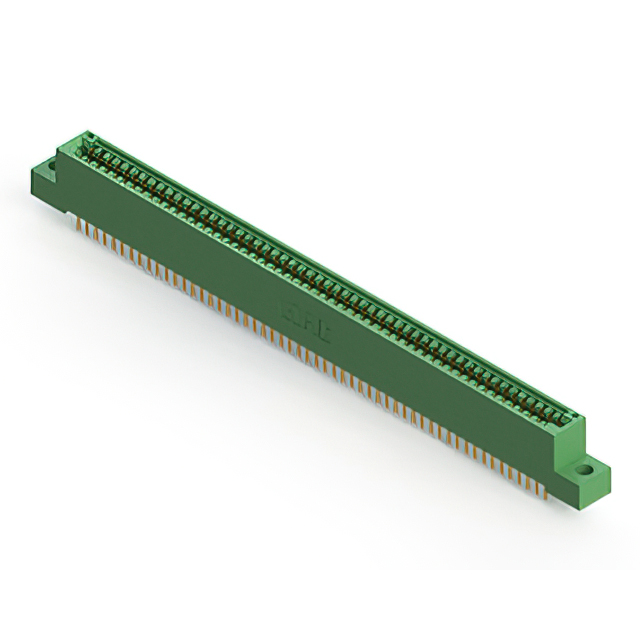

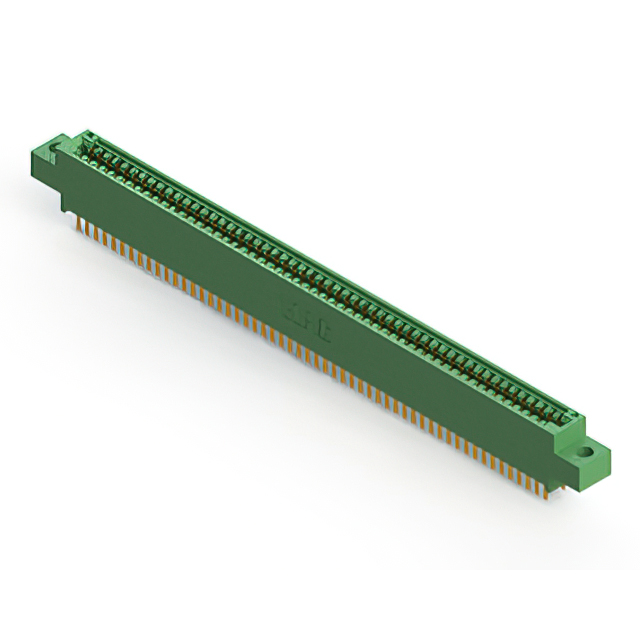

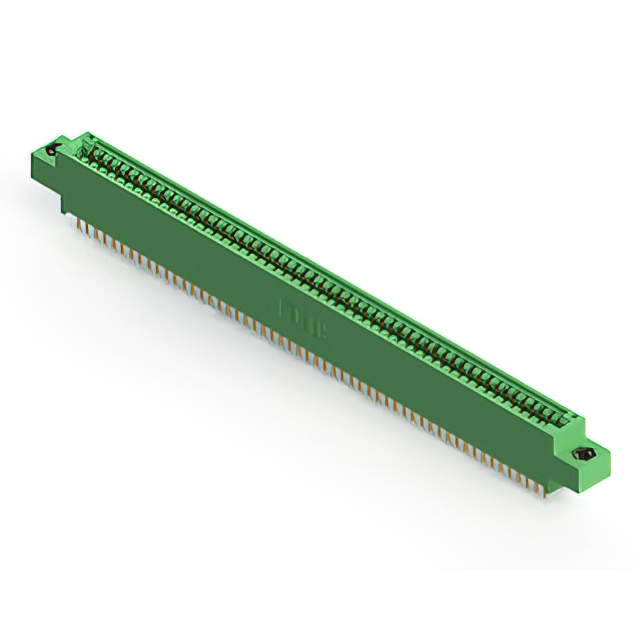

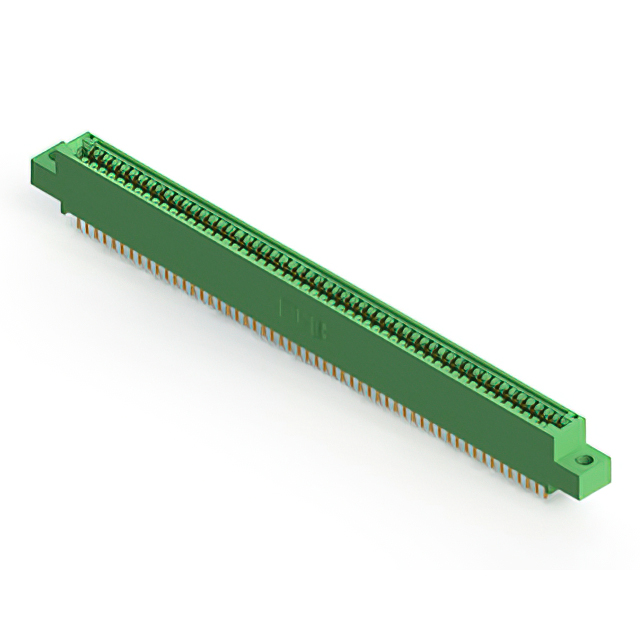

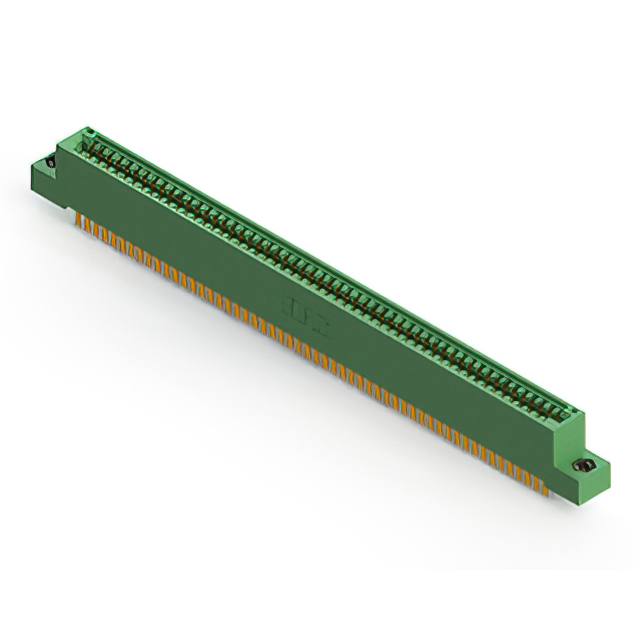

 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 4-40 Threaded Insert Top Mount Opening | Female | Solder | Green | 2 | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | 0.25 Ám | 10 Áin | 108 | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 54 | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | Female | Solder | Green | 2 | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | 0.25 Ám | 10 Áin | 108 | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 54 | 0.156 " | 3.96 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Female | Solder | Green | 2 | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | 0.25 Ám | 10 Áin | 108 | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 54 | 0.156 " | 3.96 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | Female | Wire Wrap | Green | 2 | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | 0.25 Ám | 10 Áin | 108 | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 54 | 0.128 " | 3.25 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | Female | Wire Wrap | Green | 2 | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | 0.25 Ám | 10 Áin | 108 | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 54 | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Female | Solder | Green | 2 | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | 0.25 Ám | 10 Áin | 108 | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 54 | 0.156 " | 3.96 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | 4-40 Flush Mount Threaded Insert Top Opening | Female | Solder Eyelet(s) | Green | 2 | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | 0.25 Ám | 10 Áin | 108 | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 54 | ||
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Flush Mount Top Opening Unthreaded | Female | Solder | Green | 2 | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Through Hole | 0.25 Ám | 10 Áin | 108 | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 54 | 0.156 " | 3.96 mm |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Female | Solder | Green | 2 | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Right Angle Through Hole | 0.25 Ám | 10 Áin | 108 | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 54 | 0.156 " | 3.96 mm | |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | 125 °C | -40 C | Female | Solder | Green | 2 | Dual | Cantilever | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Gold | Right Angle Through Hole | 0.25 Ám | 10 Áin | 108 | Copper Alloy | 0.1 " | 2.54 mm | Non Specified - Dual Edge | 54 | 0.128 " | 3.25 mm |
