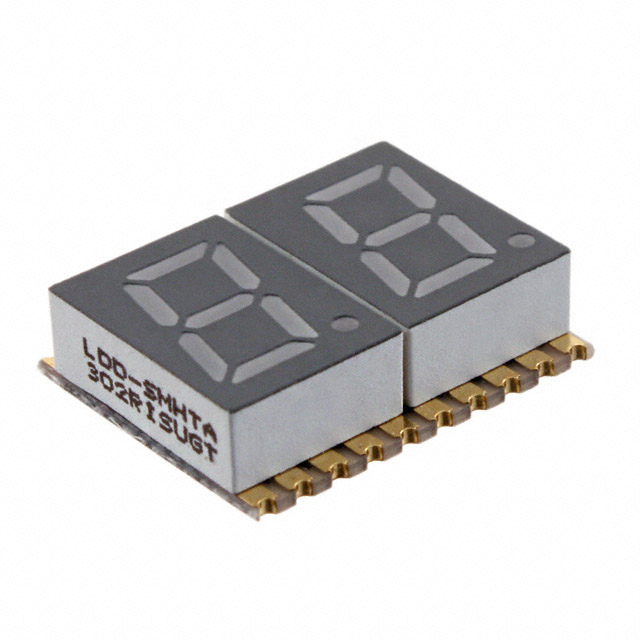

LDD-SMHTA302 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISPLAY 7SEG 0.3" DBL GRN 20SMD
| Part | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Wavelength - Peak | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Test | Display Type | Power Dissipation (Max) [Max] | Color | Digit/Alpha Size | Digit/Alpha Size | Package / Case | Number of Characters | Common Pin |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | 2.25 V | 2.5 mcd | 568 nm | 4 mm | 0.157 " | 10 mm | 14.8 mm | 0.583 " | 0.394 in | 20 mA | 7-Segment | 65 mW | Green | 7.62 mm | 0.3 in | 20-SMD No Lead | 2 | Common Anode |
