737-028 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 28POS 0.156

Part	Termination Rows [custom]	Material - Insulation	Card Type	Pitch	Pitch	Gender	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Mounting Type	Number of Rows [custom]	Contact Finish	Color	Read Out	Number of Positions/Bay/Row	Contact Material	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Termination Rows	Number of Rows

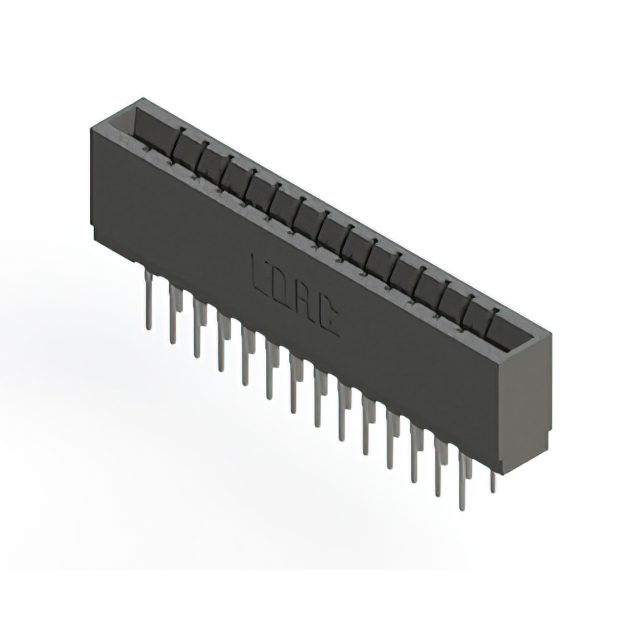

EDAC Inc. 737-028-522-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	3.96 mm	0.156 in	Female	30 Áin	0.76 Ám	28	Through Hole	2	Gold	Black	Dual	14	Copper Alloy	Press-Fit	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm

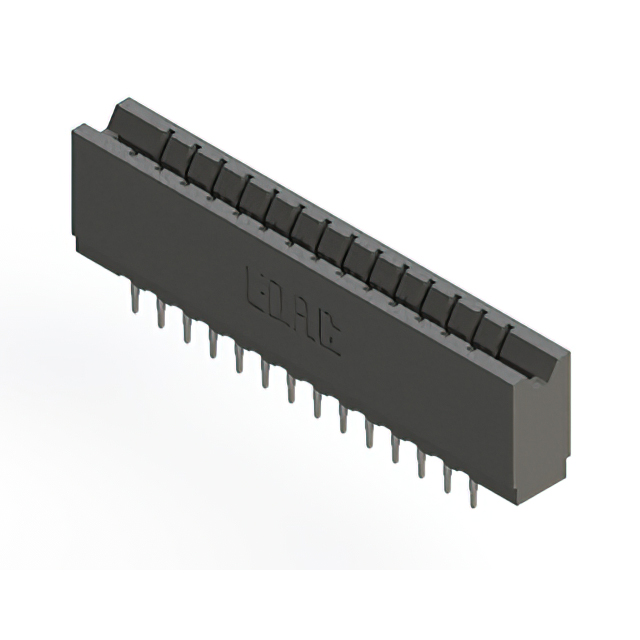

EDAC Inc. 737-028-520-206	2	Polyester Thermoplastic	Non Specified - Dual Edge	3.96 mm	0.156 in	Female	30 Áin	0.76 Ám	28	Through Hole	2	Gold	Black	Dual	14	Copper Alloy	Press-Fit	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 737-028-522-106		Polyester Thermoplastic	Non Specified - Single Edge	3.96 mm	0.156 in	Female	30 Áin	0.76 Ám	28	Through Hole		Gold	Black	Single	28	Copper Alloy	Press-Fit	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1
EDAC Inc. 737-028-520-106		Polyester Thermoplastic	Non Specified - Single Edge	3.96 mm	0.156 in	Female	30 Áin	0.76 Ám	28	Through Hole		Gold	Black	Single	28	Copper Alloy	Press-Fit	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1
EDAC Inc. 737-028-541-101		Polyester Thermoplastic	Non Specified - Single Edge	3.96 mm	0.156 in	Female	30 Áin	0.76 Ám	28	Through Hole		Gold	Black	Single	28	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1
EDAC Inc. 737-028-540-106		Polyester Thermoplastic	Non Specified - Single Edge	3.96 mm	0.156 in	Female	30 Áin	0.76 Ám	28	Through Hole		Gold	Black	Single	28	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1

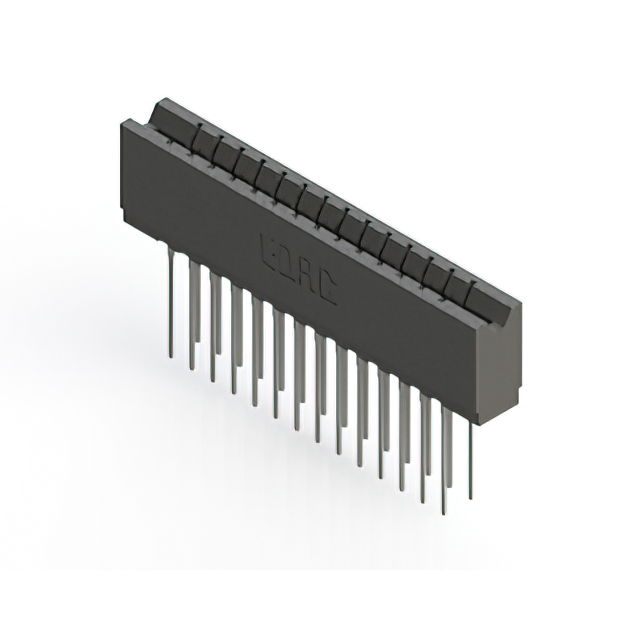

EDAC Inc. 737-028-541-206	2	Polyester Thermoplastic	Non Specified - Dual Edge	3.96 mm	0.156 in	Female	30 Áin	0.76 Ám	28	Through Hole	2	Gold	Black	Dual	14	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm

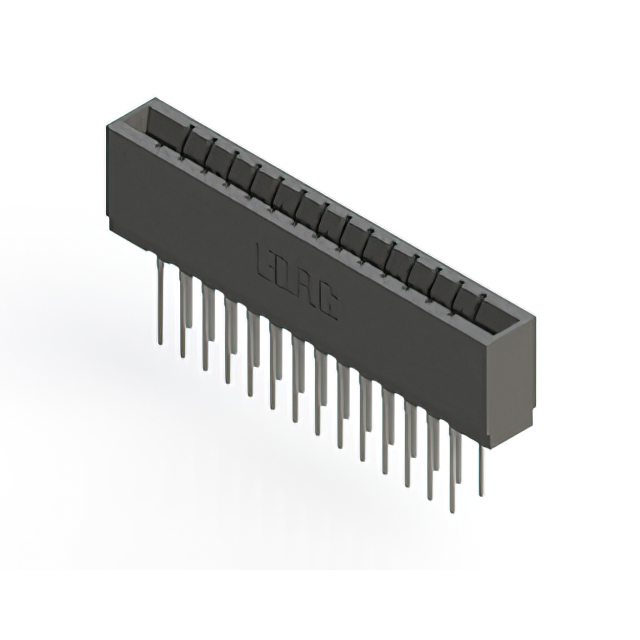

EDAC Inc. 737-028-540-201	2	Polyester Thermoplastic	Non Specified - Dual Edge	3.96 mm	0.156 in	Female	30 Áin	0.76 Ám	28	Through Hole	2	Gold	Black	Dual	14	Copper Alloy	Press-Fit Wire Wrap	-40 C	105 ░C	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
