YB216C Series

Catalog

SWITCH PUSHBUTTON SPDT 0.4VA 28V

Part	Mechanical Life	Electrical Life	Features	Panel Cutout Dimensions [diameter]	Actuator Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Voltage (Nominal)	Illumination Type, Color	Circuit	Mounting Type	Voltage Rating - DC	Color - Actuator/Cap	Actuator Marking	Ingress Protection	Voltage Rating - AC	Switch Function	Termination Style	Current Rating (Amps)	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches YB216CWCKG01-5C-CB	200000 Cycles	100000 Cycles	Tactile Feedback	22 mm	Button Flush Round	Illuminated Standard	50 °C	-25 °C	1.9 VDC	LED Red	SPDT	Panel Mount Front	28 V	Red	No Marking	IP65 - Dust Tight Water Resistant	28 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	0.4 VA

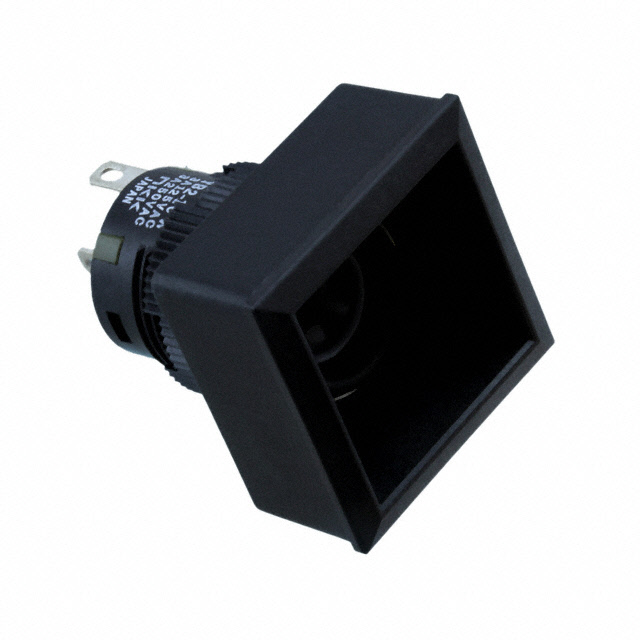

NKK Switches YB216CWSKW01	200000 Cycles	100000 Cycles	Tactile Feedback		Plunger for Cap	Standard	70 °C	-25 °C			SPDT	Panel Mount Front	30 V		No Marking	IP65 - Dust Tight Water Resistant	125 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	21 mm	21 mm

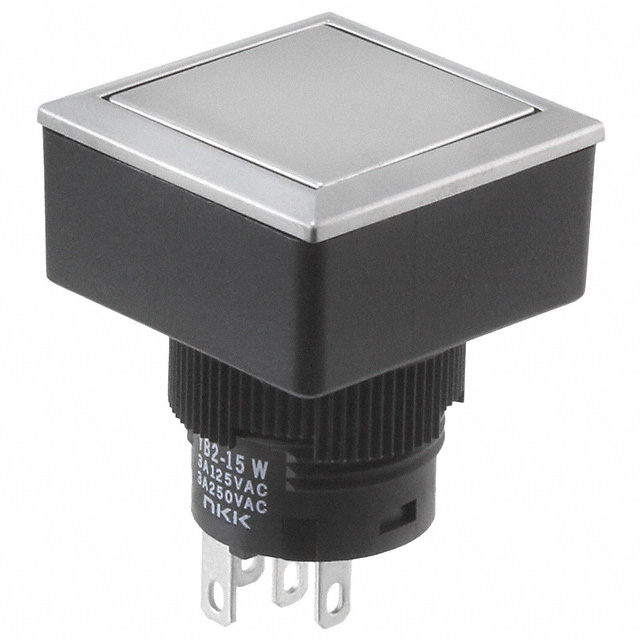

NKK Switches YB216CWSPW01-N-P	200000 Cycles	100000 Cycles	Tactile Feedback			Standard	70 °C	-25 °C			SPDT	Panel Mount Front	30 V	Brushed Chrome	No Marking	IP65 - Dust Tight Water Resistant	125 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	21 mm	21 mm
NKK Switches YB216CWSKW01/CUL	200000 Cycles	100000 Cycles	Tactile Feedback		Plunger for Cap	Standard	70 °C	-25 °C			SPDT	Panel Mount Front	30 V		No Marking	IP65 - Dust Tight Water Resistant	125 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	21 mm	21 mm
NKK Switches YB216CWCKW01-6B-JB	200000 Cycles	100000 Cycles	Tactile Feedback	22 mm	Button Flush Round	Illuminated Standard	50 °C	-25 °C	3.3 VDC	LED White	SPDT	Panel Mount Front	30 V	Clear	No Marking	IP65 - Dust Tight Water Resistant	125 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A
NKK Switches YB216CWCPW01-6G-JS	200000 Cycles	100000 Cycles	Tactile Feedback	22 mm	Button Flush Round	Illuminated Standard	50 °C	-25 °C	3.6 VDC	Blue LED	SPDT	Panel Mount Front	30 V	Silver	No Marking	IP65 - Dust Tight Water Resistant	125 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A
NKK Switches YB216CWCKW01/CUL-5C12-CB	200000 Cycles	100000 Cycles		22 mm	Button Flush Round	Illuminated Standard	50 °C	-25 °C	12 VDC	LED Red	DPDT	Panel Mount Front	30 V	Red		IP65 - Dust Tight Water Resistant	125 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A
NKK Switches YB216CWCSG01	200000 Cycles	100000 Cycles	Tactile Feedback	22 mm	Plunger for Cap	Standard	70 °C	-25 °C			SPDT	Panel Mount Front	28 V		No Marking	IP65 - Dust Tight Water Resistant	28 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	0.4 VA
NKK Switches YB216CWCKW01-N-CB	200000 Cycles	100000 Cycles	Tactile Feedback	22 mm	Button Flush Round	Standard	70 °C	-25 °C			SPDT	Panel Mount Front	30 V	Red	No Marking	IP65 - Dust Tight Water Resistant	125 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A
NKK Switches YB216CWSKW01-5D24-JB	200000 Cycles	100000 Cycles	Tactile Feedback			Illuminated Standard	50 °C	-25 °C	24 V	Amber LED	SPDT	Panel Mount Front	30 V	Clear	No Marking	IP65 - Dust Tight Water Resistant	125 V	On-On	Solder Quick Connect - 0.110" (2.8mm)	3 A	21 mm	21 mm
