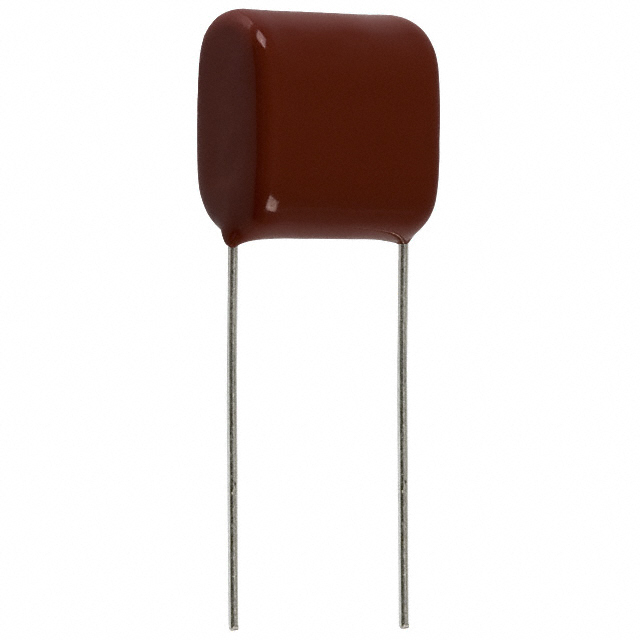

ECQ-E2475 Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP FILM 4.7UF 5% 250VDC RADIAL

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Tolerance	Package / Case	Lead Spacing	Lead Spacing	Applications	Capacitance	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max)
Panasonic Electronic Components ECQ-E2475JF	Through Hole	0.472 "	12 mm	26 mm	1.024 in	Polyester Metallized	-40 C	105 ░C	PC Pins	5 %	Radial	0.886 in	22.5 mm	General Purpose	4.7 µF	250 V	0.906 in	23 mm
Panasonic Electronic Components ECQ-E2475JFW	Through Hole	0.472 "	12 mm	26 mm	1.024 in	Polyester Metallized	-40 C	105 ░C	PC Pins	5 %	Radial	0.591 in	15 mm	General Purpose	4.7 µF	250 V	1.043 in	26.5 mm
Panasonic Electronic Components ECQ-E2475JB	Through Hole	0.469 "	11.9 mm	20.8 mm	0.819 "	Polyester Metallized	-40 C	105 ░C	PC Pins	5 %	Radial	0.689 in	17.5 mm	General Purpose	4.7 µF	250 V			0.866 in	22 mm
Panasonic Electronic Components ECQ-E2475KBB	Through Hole	0.469 "	11.9 mm	20.8 mm	0.819 "	Polyester Metallized	-40 C	105 ░C	PC Pins	10 %	Radial	0.394 in	10 mm	General Purpose	4.7 µF	250 V	1.024 in				26 mm
Panasonic Electronic Components ECQ-E2475RJB	Through Hole	0.469 "	11.9 mm	20.8 mm	0.819 "	Polyester Metallized	-40 C	105 ░C	PC Pins	5 %	Radial	0.689 in	17.5 mm	General Purpose	4.7 µF	250 V	1.024 in				26 mm
Panasonic Electronic Components ECQ-E2475JBB	Through Hole	0.469 "	11.9 mm	20.8 mm	0.819 "	Polyester Metallized	-40 C	105 ░C	PC Pins	5 %	Radial	0.394 in	10 mm	General Purpose	4.7 µF	250 V	1.024 in				26 mm
Panasonic Electronic Components ECQ-E2475RKB	Through Hole	0.469 "	11.9 mm	20.8 mm	0.819 "	Polyester Metallized	-40 C	105 ░C	PC Pins	10 %	Radial	0.689 in	17.5 mm	General Purpose	4.7 µF	250 V	1.024 in				26 mm
