6383 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

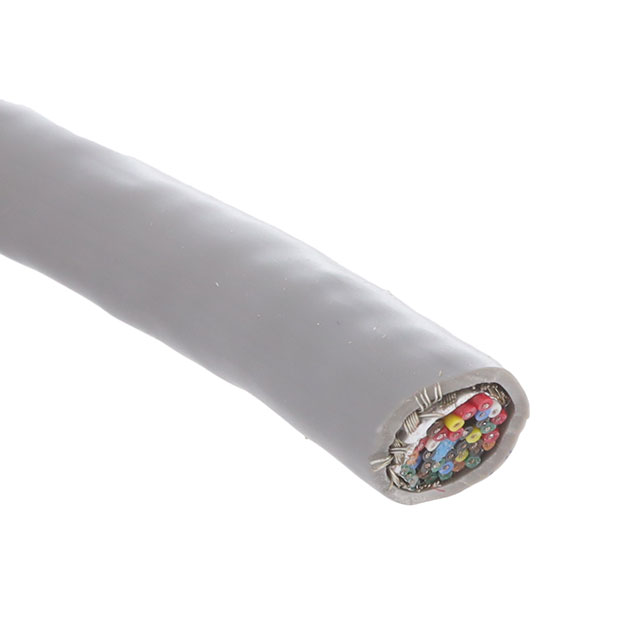

MULTIPAIR CABLE, COMMUNICATION, SHIELDED, 18 PAIR, 22 AWG, 0.35 MM², 100 FT, 30.5 M
| Part | Shield Material | Shield Coverage | Shield Type | Cable Type | Features | Conductor Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Length [x] | Length [x] | Ratings | Jacket Color | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Number of Conductors | Voltage | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Braid Foil | Multi-Pair | Drain Wire | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | UL Style 2464 | Slate | 22 AWG | 12.7 mm | 0.5 in | 0.813 mm | 0.032 in | Copper Tinned | 36 | 300 VDC | ||
 ALPHA WIRE | Aluminum Copper Tinned | 65 % 100 % | Braid Foil | Multi-Pair | Drain Wire | Poly-Vinyl Chloride (PVC) | 80 °C | -20 ░C | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | UL Style 2464 | Slate | 22 AWG | 12.7 mm | 0.5 in | 0.813 mm | 0.032 in | Copper Tinned | 36 | 300 VDC | 304.8 m | 1000 ft |
