TPD1E04U04 Series

0.5-pF, 3.6-V, ±16-kV ESD protection diode with in 0402 & 0201 packages for HDMI 2.0 & USB 3.0

Catalog

0.5-pF, 3.6-V, ±16-kV ESD protection diode with in 0402 & 0201 packages for HDMI 2.0 & USB 3.0

Part	Supplied Contents	Contents	Utilized IC / Part	Function	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]	Mounting Type	Unidirectional Channels [custom]	Capacitance @ Frequency	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Supplier Device Package	Package / Case	Applications	Type	Secondary Attributes	Package / Case
Texas Instruments TPD1E10B06-Q1EVM	Board(s)	Board(s)	TPD1E10B06-Q1	Transient Voltage Suppression (TVS)
Texas Instruments TPD1E05U06DPYEVM	Board(s)		TPD1E05U06	Electrostatic Discharge (ESD)
Texas Instruments TPD1E04U04DPYR					8.9 V	-40 °C	125 °C	2.5 A	4.5 V	Surface Mount	1	0.5 pF	3.6 V	19 W	2-X1SON (1x.60)	0402 (1006 Metric)	HDMI	Zener

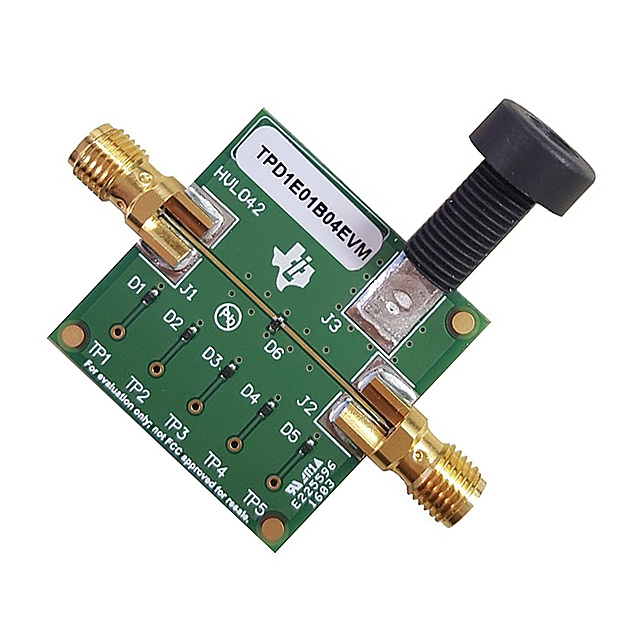

Texas Instruments TPD1E01B04EVM	Board(s)		TPD1E01B04	Transient Voltage Suppression (TVS)															SMA Connectors

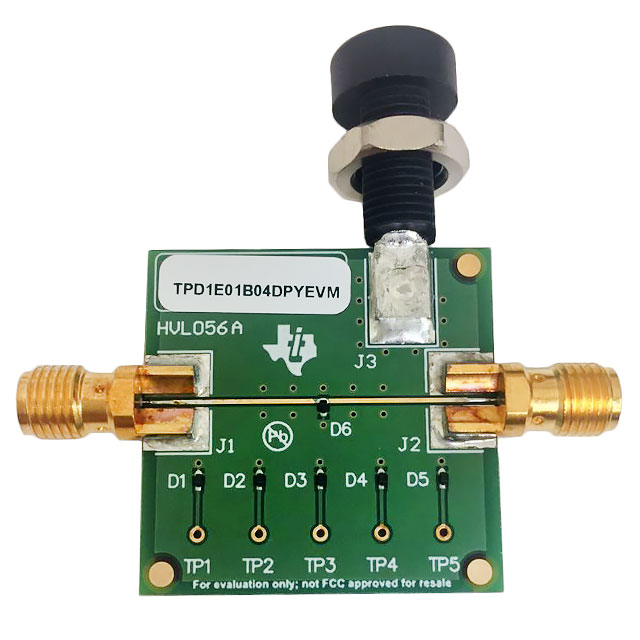

Texas Instruments TPD1E01B04DPYEVM	Board(s)		TPD1E01B04	Transient Voltage Suppression (TVS)

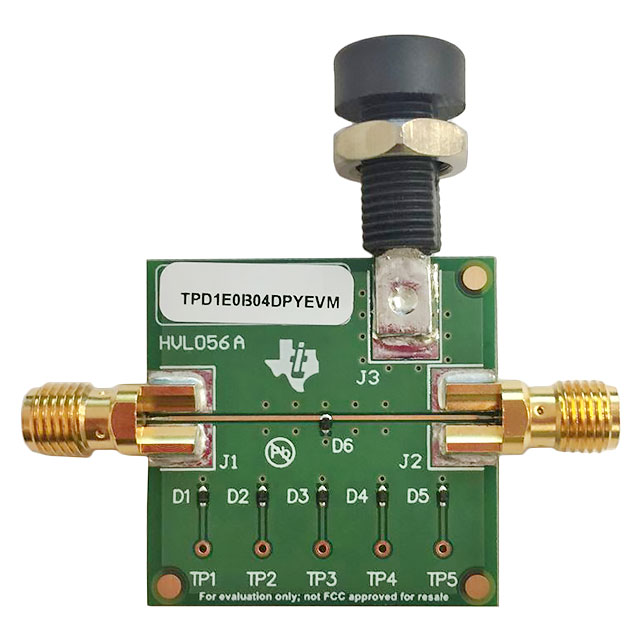

Texas Instruments TPD1E0B04DPYEVM	Board(s)		TPD1E0B04	Transient Voltage Suppression (TVS)
Texas Instruments TPD1E04U04DPLR					8.9 V	-40 °C	125 °C	2.5 A	4.5 V	Surface Mount	1	0.5 pF	3.6 V	16 W	2-X2SON (0.6x0.3)	0201	HDMI	Zener		0603 Metric

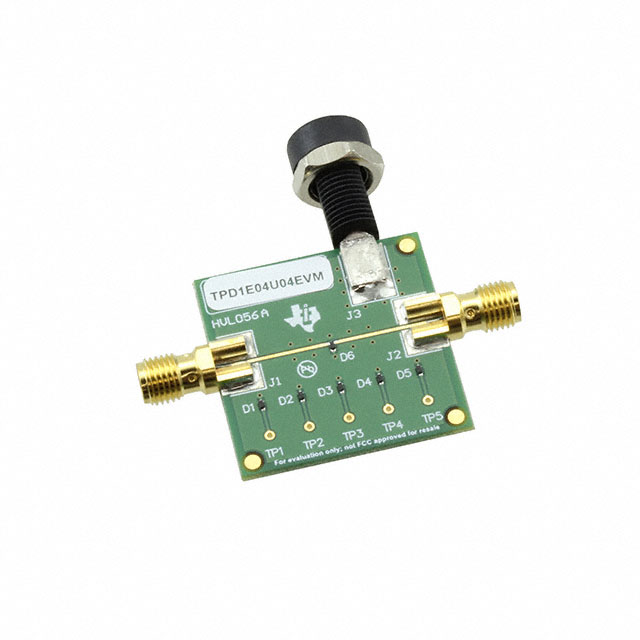

Texas Instruments TPD1E04U04EVM	Board(s)		TPD1E04U04	Transient Voltage Suppression (TVS)															SMA Connectors
Texas Instruments TPD1E04U04DPYT					8.9 V	-40 °C	125 °C	2.5 A	4.5 V	Surface Mount	1	0.5 pF	3.6 V	19 W	2-X1SON (1x.60)	0402 (1006 Metric)	HDMI	Zener
Texas Instruments TPD1E04U04DPLEVM	Board(s)		TPD1E04U04	Transient Voltage Suppression (TVS)

Catalog

0.5-pF, 3.6-V, ±16-kV ESD protection diode with in 0402 & 0201 packages for HDMI 2.0 & USB 3.0

Key Features

• IEC 61000-4-2 Level 4 ESD Protection±16-kV Contact Discharge±16-kV Air Gap DischargeIEC 61000-4-4 EFT Protection80 A (5/50 ns)IEC 61000-4-5 Surge Protection2.5 A (8/20 µs)IO Capacitance: 0.5-pF (Typ), 0.65-pF (Max)Ultra-low ESD Clamping Voltage8.9 V at 16-A TLP–4.6 V at –16-A TLPLow RDYN0.25 Ω IO to GND0.18 Ω GND to IODC Breakdown Voltage: 5 V (Minimum)Ultra-low Leakage Current: 10 nA (Maximum)Supports High Speed Interfaces up to 6 GbpsIndustrial Temperature Range: –40°C to +125°CIndustry Standard 0402 and 0201 PackagesIEC 61000-4-2 Level 4 ESD Protection±16-kV Contact Discharge±16-kV Air Gap DischargeIEC 61000-4-4 EFT Protection80 A (5/50 ns)IEC 61000-4-5 Surge Protection2.5 A (8/20 µs)IO Capacitance: 0.5-pF (Typ), 0.65-pF (Max)Ultra-low ESD Clamping Voltage8.9 V at 16-A TLP–4.6 V at –16-A TLPLow RDYN0.25 Ω IO to GND0.18 Ω GND to IODC Breakdown Voltage: 5 V (Minimum)Ultra-low Leakage Current: 10 nA (Maximum)Supports High Speed Interfaces up to 6 GbpsIndustrial Temperature Range: –40°C to +125°CIndustry Standard 0402 and 0201 Packages

Description

The TPD1E04U04 is a unidirectional TVS ESD protection diode for HDMI 2.0 and USB 3.0 circuit protection. The TPD1E04U04 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.5-pF IO capacitance making it ideal for protecting high-speed interfaces up to 6 Gbps such as HDMI 2.0 and USB 3.0. The low dynamic resistance and ultra-low clamping voltage ensure system level protection against transient events for sensitive SoCs. The TPD1E04U04 is offered in the industry standard 0402 (DPY) and 0201 (DPL) packages. The TPD1E04U04 is a unidirectional TVS ESD protection diode for HDMI 2.0 and USB 3.0 circuit protection. The TPD1E04U04 is rated to dissipate ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device features a 0.5-pF IO capacitance making it ideal for protecting high-speed interfaces up to 6 Gbps such as HDMI 2.0 and USB 3.0. The low dynamic resistance and ultra-low clamping voltage ensure system level protection against transient events for sensitive SoCs. The TPD1E04U04 is offered in the industry standard 0402 (DPY) and 0201 (DPL) packages.
