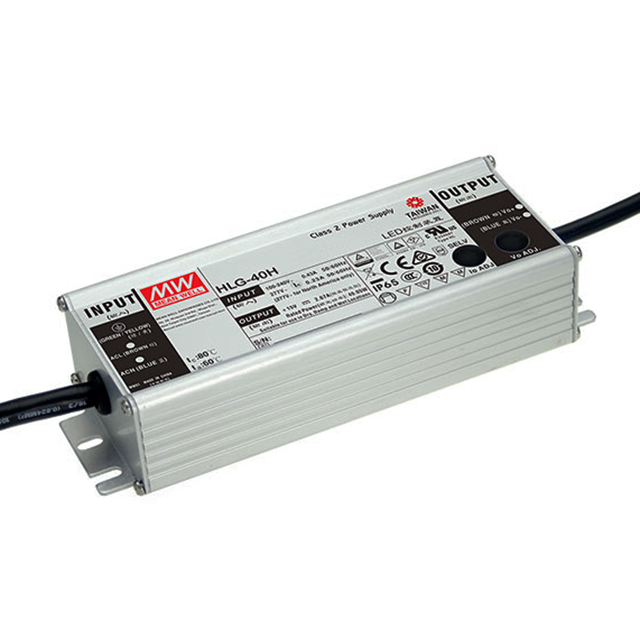

HLG-40H Series

Catalog

LED DVR CCCV ACDC 25.2-42V 960MA

Part	Mounting Type	Efficiency	Number of Outputs	Termination Style	Topology	Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Ratings	Voltage - Output [Max]	Voltage - Output [Min]	Features	Power (Watts)	Current - Output (Max) [Max]	Approval Agency	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Dimming	Voltage - Output	Voltage - Output [Max]
MEAN WELL USA Inc. HLG-40H-42B	Chassis Mount	88.5 %	1	Wire Leads	AC DC Converter	Constant Current Voltage	80 °C	-40 C	3750 VDC	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	IP67	42 V	25.2	OCP OTP OVP SCP	40 W	960 mA	CB CCC CE cURus PSE RCM TUV	305 VAC	90 VAC	Analog PWM
MEAN WELL USA Inc. HLG-40H-24A	Chassis Mount	88 %	1	Wire Leads	AC DC Converter	Constant Current Voltage	80 °C	-40 C	3750 VDC	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	IP65	27 V	22 V	OCP OTP OVP SCP	40 W	1.67 A	CB CCC CE cURus PSE RCM TUV	305 VAC	90 VAC

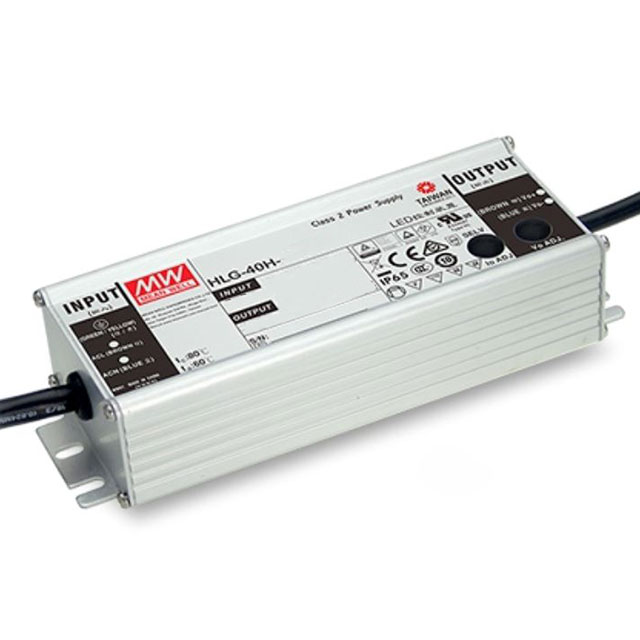

MEAN WELL USA Inc. HLG-40H-42AB	Chassis Mount	88.5 %	1	Wire Leads	AC DC Converter	Constant Current Voltage	80 °C	-40 C	3750 VDC	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	IP65			OCP OTP OVP SCP	40 W	960 mA	CB CCC CE cURus EAC KC PSE RCM TUV	305 VAC	90 VAC	Analog PWM	42 V
MEAN WELL USA Inc. HLG-40H-36AB	Chassis Mount	88.5 %	1	Wire Leads	AC DC Converter	Constant Current Voltage	80 °C	-40 C	3750 VDC	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	IP65			OCP OTP OVP SCP	40 W	1.12 A	CB CCC CE cURus EAC KC PSE RCM TUV	305 VAC	90 VAC	Analog PWM	36 V
MEAN WELL USA Inc. HLG-40H-15AB	Chassis Mount	86.5 %	1	Wire Leads	AC DC Converter	Constant Current Voltage	80 °C	-40 C	3750 VDC	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	IP65			OCP OTP OVP SCP	40 W	2.67 A	CB CCC CE cURus EAC KC PSE RCM TUV	305 VAC	90 VAC		15 V
MEAN WELL USA Inc. HLG-40H-48A	Chassis Mount		1	Wire Leads	AC DC Converter	Constant Current Voltage	80 °C	-40 C	3750 VDC	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	IP65		44 V	OCP OTP OVP SCP	40 W	840 mA	CB CCC CE cURus PSE RCM TUV	305 VAC	90 VAC			53 V
MEAN WELL USA Inc. HLG-40H-30	Chassis Mount	88.5 %	1	Wire Leads	AC DC Converter	Constant Current Voltage	80 °C	-40 C	3750 VDC	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	IP67			OCP OTP OVP SCP	40 W	1.34 A	CB CCC CE cURus PSE RCM TUV	305 VAC	90 VAC
MEAN WELL USA Inc. HLG-40H-54B	Chassis Mount		1	Wire Leads	AC DC Converter	Constant Current Voltage	80 °C	-40 C	3750 VDC	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	IP67	54 V	32.4 V	OCP OTP OVP SCP	41 W	750 mA	CB CCC CE cURus PSE RCM TUV	305 VAC	90 VAC	Analog PWM
MEAN WELL USA Inc. HLG-40H-30B	Chassis Mount	88.5 %	1	Wire Leads	AC DC Converter	Constant Current Voltage	80 °C	-40 C	3750 VDC	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	IP67			OCP OTP OVP SCP	40 W	1.34 A	CB CCC CE cURus PSE RCM TUV	305 VAC	90 VAC	Analog PWM
MEAN WELL USA Inc. HLG-40H-54A	Chassis Mount		1	Wire Leads	AC DC Converter	Constant Current Voltage	80 °C	-40 C	3750 VDC	5.8 in	61.5 mm	2.42 in	147.2 mm	36.8 mm	1.45 in	IP65	58 V	49 V	OCP OTP OVP SCP	41 W	750 mA	CB CCC CE cURus PSE RCM TUV	305 VAC	90 VAC
