ESD7104 Series

4ch Low Capacitance ESD Protection for High Speed Data Lines

Catalog

4ch Low Capacitance ESD Protection for High Speed Data Lines

Part	Current - Peak Pulse (10/1000µs)	Capacitance @ Frequency	Grade	Applications	Voltage - Reverse Standoff (Typ)	Qualification	Power Line Protection	Unidirectional Channels [custom]	Mounting Type	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Type	Package / Case

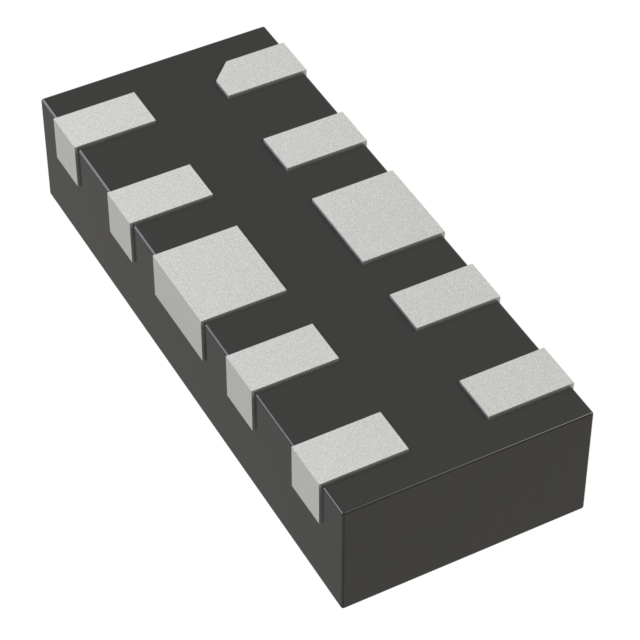

ON Semiconductor SZESD7104MTWTAG	1 A	0.3 pF	Automotive	HDMI USB	5 V	AEC-Q101		4	Surface Mount	10 V	125 ¯C	-55 °C	10-WDFNW (2.5x1)	5.5 V	Zener	10-WFDFN

Catalog

4ch Low Capacitance ESD Protection for High Speed Data Lines

Key Features

• Low Capacitance (0.3 pF Typical, I/O to GND)

• IEC61000−4−2 (ESD): Level 4

• SZESD7104MTWTAG Wettable Flank Package

• Low ESD Clamping Voltage

• SZ Prefix for Automotive and Other Applications Requiring UniqueSite and Control Change Requirements; AEC−Q101 Qualified andPPAP Capable

• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHSCompliant

Description

The ESD7104 is designed to protect high speed data lines from ESD. Ultra-low capacitance and low ESD clamping voltage make this device an ideal solution for protecting voltage sensitive high speed data lines. The flow-through style package allows for easy PCB layout and matched trace lengths necessary to maintain consistent impedance between high speed differential lines such as USB 3.0 and HDMI.
