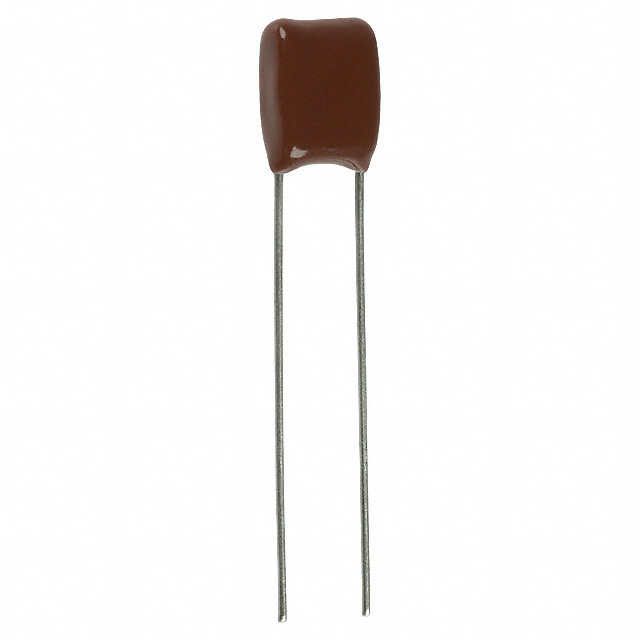

ECQ-B Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

CAP FILM 2200PF 5% 100VDC RADIAL

Part	Termination	Applications	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Tolerance	Capacitance	Package / Case	Voltage Rating - DC	Dielectric Material	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]

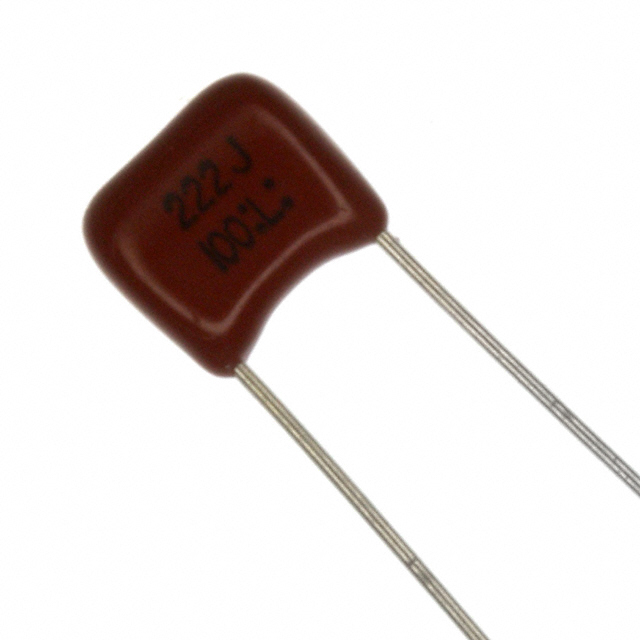

Panasonic Industrial Automation Sales ECQ-B1222JF	PC Pins	General Purpose	Through Hole	0.283 in	0.118 in	7.2 mm	3 mm	0.295 in	7.5 mm	-40 °C	105 ░C	5 mm	0.197 in	5 %	2200 pF	Radial	100 V	Polyester

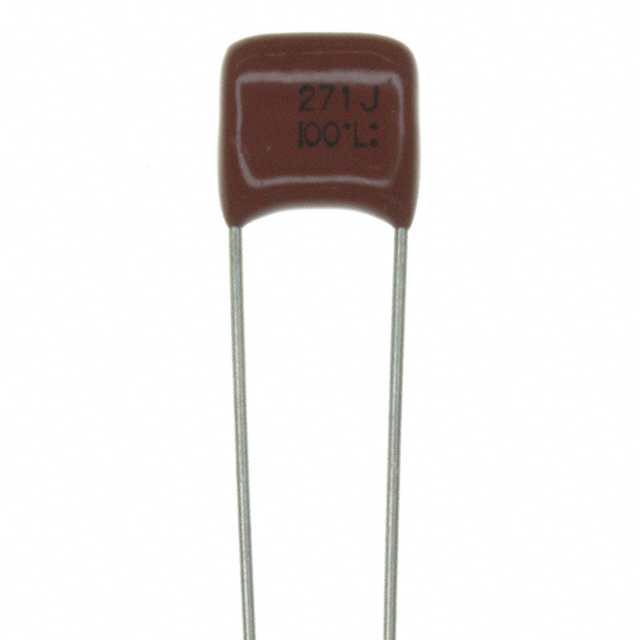

Panasonic Industrial Automation Sales ECQ-B1271JF	PC Pins	General Purpose	Through Hole	0.283 in	0.118 in	7.2 mm	3 mm			-40 °C	105 ░C	5 mm	0.197 in	5 %	270 pF	Radial	100 V	Polyester	7 mm	0.276 "
Panasonic Industrial Automation Sales ECQ-B2153JF	PC Pins	General Purpose	Through Hole	0.433 in	0.217 in	11 mm				-40 °C	105 ░C	7.5 mm	0.295 in	5 %	15000 pF	Radial	200 V	Polyester	11.5 mm	0.453 "	5.5 mm
Panasonic Industrial Automation Sales ECQ-B2272JF	PC Pins	General Purpose	Through Hole	0.335 "	0.177 "	8.5 mm	4.5 mm			-40 °C	105 ░C	5 mm	0.197 in	5 %	2700 pF	Radial	200 V	Polyester	9 mm	0.354 in

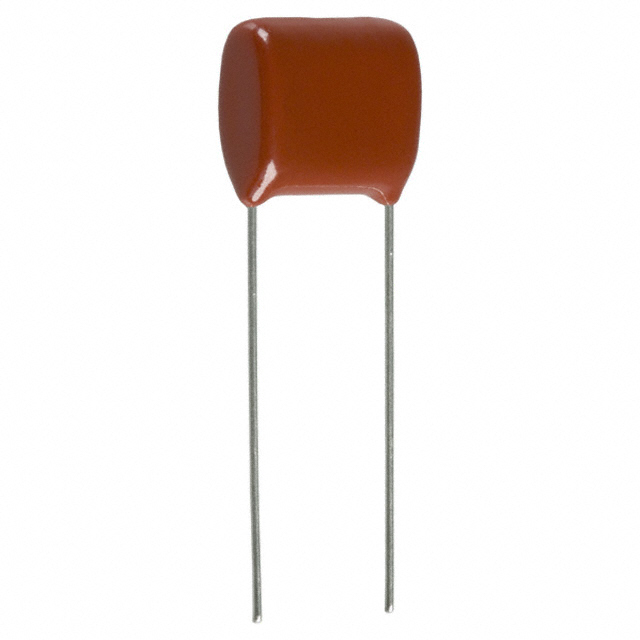

Panasonic Industrial Automation Sales ECQ-B2823JF	PC Pins	General Purpose	Through Hole					0.571 in	14.5 mm	-40 °C	105 ░C	12.5 mm	0.492 in	5 %	0.082 µF	Radial	200 V	Polyester
Panasonic Industrial Automation Sales ECQ-B1221JF	PC Pins	General Purpose	Through Hole	0.283 in	0.118 in	7.2 mm	3 mm			-40 °C	105 ░C	5 mm	0.197 in	5 %	220 pF	Radial	100 V	Polyester	7 mm	0.276 "
Panasonic Industrial Automation Sales ECQ-B1392JF	PC Pins	General Purpose	Through Hole	0.283 in	0.118 in	7.2 mm	3 mm	0.295 in	7.5 mm	-40 °C	105 ░C	5 mm	0.197 in	5 %	3900 pF	Radial	100 V	Polyester
Panasonic Industrial Automation Sales ECQ-B2102JF	PC Pins	General Purpose	Through Hole	0.335 "	0.157 in	8.5 mm	4 mm	0.315 in	8 mm	-40 °C	105 ░C	5 mm	0.197 in	5 %	0.001 µF	Radial	200 V	Polyester
Panasonic Industrial Automation Sales ECQ-B1391JF	PC Pins	General Purpose	Through Hole	0.283 in	0.118 in	7.2 mm	3 mm			-40 °C	105 ░C	5 mm	0.197 in	5 %	390 pF	Radial	100 V	Polyester	7 mm	0.276 "
Panasonic Industrial Automation Sales ECQ-B2392JF	PC Pins	General Purpose	Through Hole	0.433 in	0.177 "	11 mm		0.335 in	8.5 mm	-40 °C	105 ░C	7.5 mm	0.295 in	5 %	3900 pF	Radial	200 V	Polyester			4.5 mm
