M39076 Series

Catalog

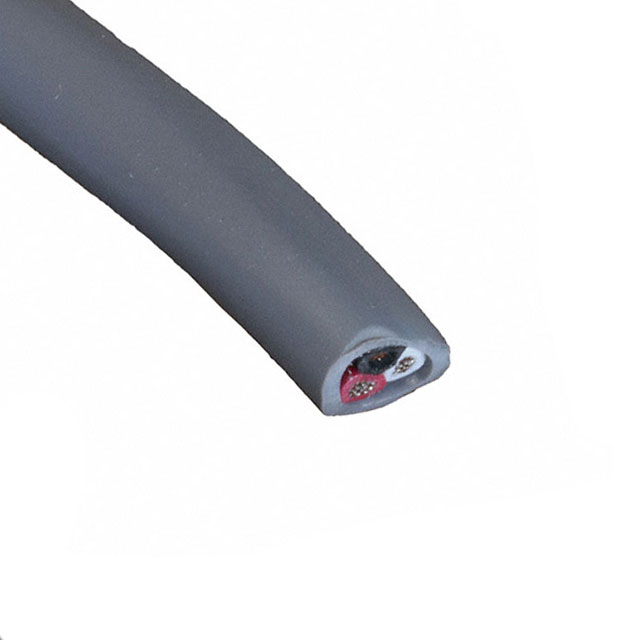

MULTI-CONDUCTOR CABLE 18AWG 3CONDUCTORS TINNED COPPER

Part	Voltage	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Conductor Material	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Thickness [custom]	Jacket (Insulation) Thickness [custom]	Jacket Color	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Jacket (Insulation) Material
ALPHA WIRE M39076 SL199	300 VDC	18 AWG	30 AWG	19	Poly-Vinyl Chloride (PVC)	Copper Tinned	3	0.256 in	6.5 mm	0.038 in	0.965 mm	Slate	914.4 m	3000 '	-20 ░C	105 ░C	Multi-Conductor	Poly-Vinyl Chloride (PVC)
ALPHA WIRE M39076 SL002	300 VDC	18 AWG	30 AWG	19	Poly-Vinyl Chloride (PVC)	Copper Tinned	3	0.256 in	6.5 mm	0.038 in	0.965 mm	Slate	152.4 m	500 ft	-20 ░C	105 ░C	Multi-Conductor	Poly-Vinyl Chloride (PVC)
