LXES21 Series

Catalog

CMC 60MA 4LN SMD

Part	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Number of Lines	Height (Max) [Max]	Height (Max)	Impedance @ Frequency	Current Rating (Max) [Max]	DC Resistance (DCR) (Max) [Max]

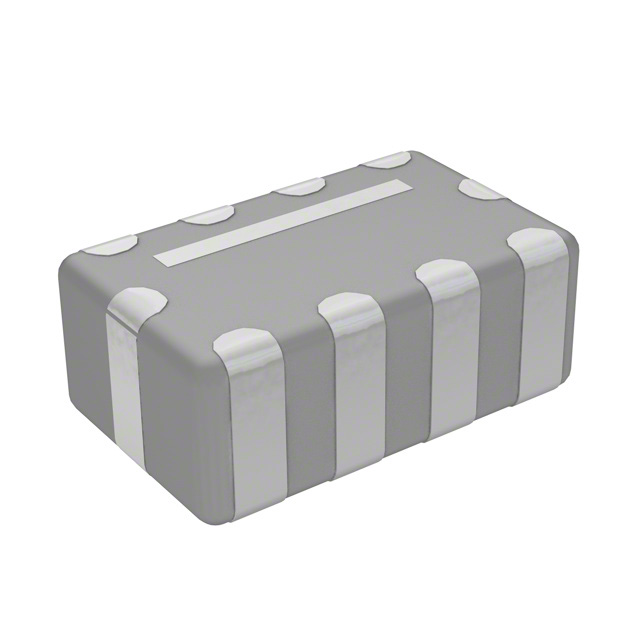

Murata Power Solutions Inc. LXES21DAA4-136	85 °C	-40 °C	5 V	2 mm	0.079 in	0.049 in	1.25 mm	Surface Mount	4	0.031 in	0.8 mm	60 Ohms 100 mOhms	60 mA	3 Ohm
