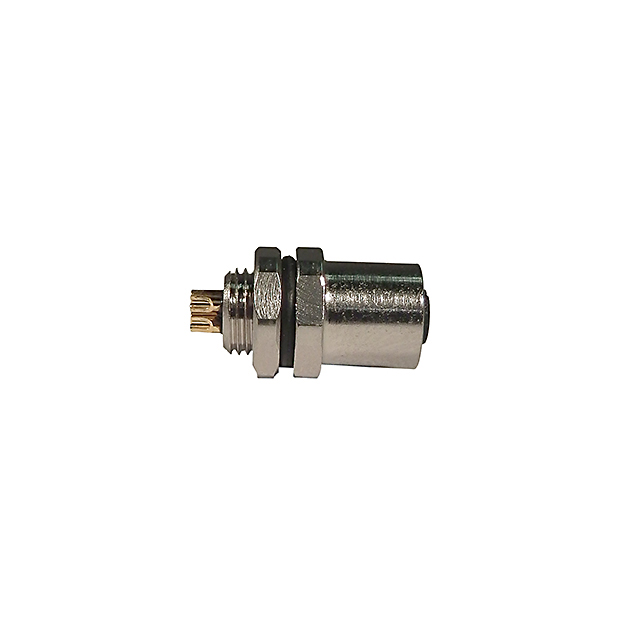

851-004 Series

Catalog

CONN PLUG FMALE 4P GOLD SLDR CUP

Part	Connector Type	Applications	Mounting Type	Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Feature	Material Flammability Rating	Voltage Rating	Orientation	Shielding	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Shell Size - Insert	Number of Positions	Shell Finish	Contact Finish - Mating	Shell Material	Ingress Protection	Insert Material	Contact Finish Thickness - Mating
NorComp Inc. 851-004-203R004	Plug Female Sockets	Industrial Medical	Panel Mount	Silver	85 °C	-40 C	Brass	Bulkhead - Rear Side Nut	UL94 V-0	60 VDC	Keyed	Shielded	Metal	0.25 µm	10 µin	Threaded	M5-4	4	Nickel	Gold	Brass	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)

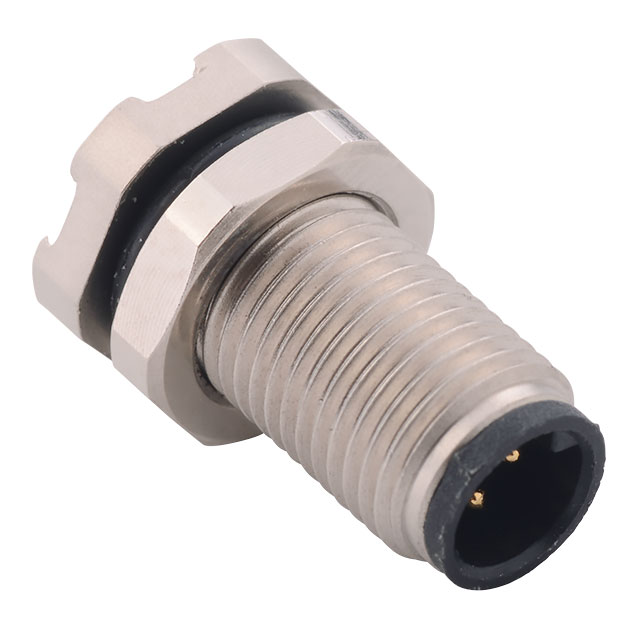

NorComp Inc. 851-004-103R004	Receptacle Male Pins	Industrial Medical	Panel Mount	Silver	85 °C	-40 C	Brass	Bulkhead - Front Side Nut	UL94 V-0	60 VDC	Keyed	Shielded	Metal	0.25 µm	10 µin	Threaded	M5-4	4	Nickel	Gold	Brass	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)
NorComp Inc. 851-004-103R001	Receptacle Male Pins	Industrial Medical	Panel Mount	Silver	85 °C	-40 C	Brass	Bulkhead - Front Side Nut	UL94 V-0	60 VDC	Keyed	Shielded	Metal			Threaded	M5-4	4	Nickel	Gold	Brass	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Flash

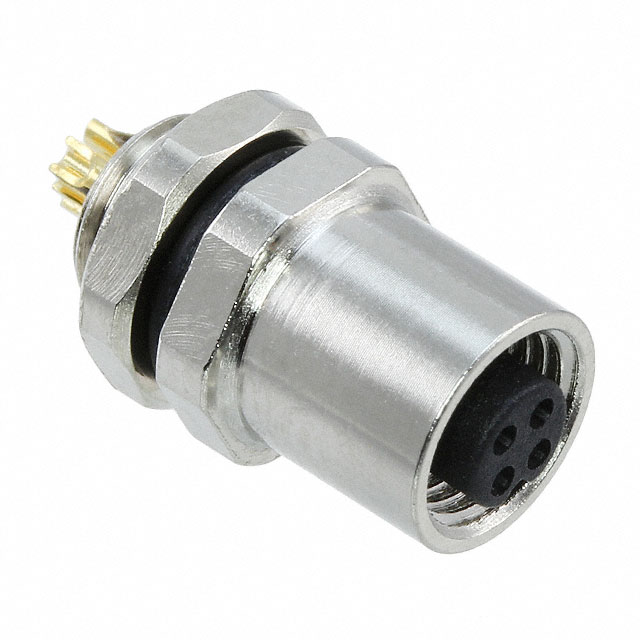

NorComp Inc. 851-004-203R001	Plug Female Sockets	Industrial Medical	Panel Mount	Silver	85 °C	-40 C	Brass	Bulkhead - Rear Side Nut	UL94 V-0	60 VDC	Keyed	Shielded	Metal			Threaded	M5-4	4	Nickel	Gold	Brass	IP67 - Dust Tight Waterproof	Polybutylene Terephthalate (PBT)	Flash
