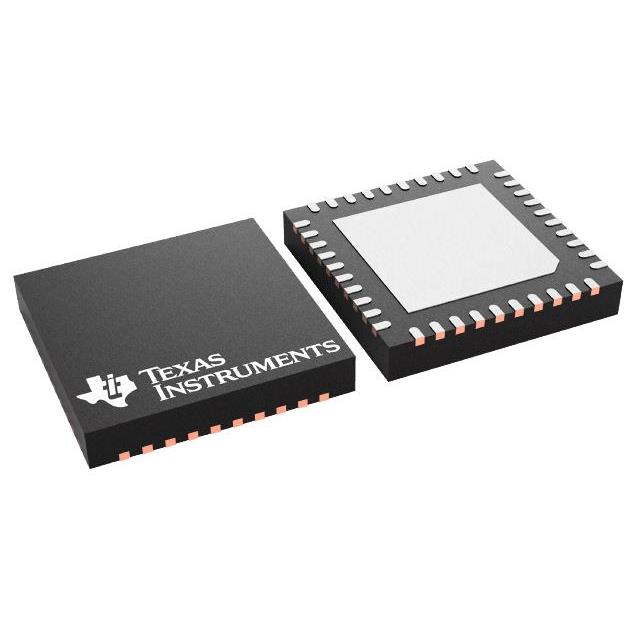

TPS274C65CP Series

12-V to 36-V 65-mΩ four-channel high-side switch

Catalog

12-V to 36-V 65-mΩ four-channel high-side switch

Part	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Switch Type	Ratio - Input:Output [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Output Type	Package / Case	Output Configuration	Fault Protection	Supplier Device Package	Mounting Type	Input Type	Features	Voltage - Load [Min]	Voltage - Load [Max]	Number of Outputs	Rds On (Typ)	Current - Output (Max) [Max]	Interface	Ratio - Input:Output
Texas Instruments TPS274C65CPWRHAR	5.5 V	3 V	General Purpose	1:1	-40 °C	125 °C	N-Channel	40-VFQFN Exposed Pad	High Side	Current Limiting (Fixed) Over Temperature Reverse Current Short Circuit UVLO	40-VQFN (6x6)	Surface Mount	Non-Inverting	Slew Rate Controlled Status Flag	12 V	36 V	1	72 mOhm	1.9 A
Texas Instruments TPS274C65CPHWRHAR	5.5 V	3 V	General Purpose	1:1	-40 °C	125 °C	N-Channel	40-VFQFN Exposed Pad	High Side	Current Limiting (Adjustable) Open Load Detect Over Temperature Reverse Current Short Circuit UVLO	40-VQFN (6x6)	Surface Mount	Non-Inverting	Status Flag	12 V	36 V	4	72 mOhm	2.26 A	PWM
Texas Instruments TPS274C65CPHRHAR	5.5 V	3 V	General Purpose		-40 °C	125 °C	N-Channel	40-VFQFN Exposed Pad	High Side	Current Limiting (Adjustable) Over Load Over Temperature Reverse Current Short Circuit UVLO	40-VQFN (6x6)	Surface Mount	Non-Inverting	Status Flag	12 V	36 V	4	72 mOhm	2.5 A	On/Off	1:4

Catalog

12-V to 36-V 65-mΩ four-channel high-side switch

Key Features

• Quad-channel 72mΩ RON smart high-side switchLow RON ensures low power dissipation for up to 2A DC loadsImprove system level reliability throughadjustable current limitingTPS274C65CP: Current limit set-point from 250mA to 1.9ATPS274C65CPH: Current limit set-point from 290mA to 2.26ADriveinductive, capacitive, and resistive loadsAdjustable current limit for capacitor chargingIntegrated output clamp to demagnetize inductive loadsRobust output protectionIntegrated thermal shutdownProtection against short-to-ground eventsConfigurable fault handlingDiagnostic features enable improved module intelligenceWire-break detectionShort-to-supply detectionSmall 6mm × 6mm leadless packageQuad-channel 72mΩ RON smart high-side switchLow RON ensures low power dissipation for up to 2A DC loadsImprove system level reliability throughadjustable current limitingTPS274C65CP: Current limit set-point from 250mA to 1.9ATPS274C65CPH: Current limit set-point from 290mA to 2.26ADriveinductive, capacitive, and resistive loadsAdjustable current limit for capacitor chargingIntegrated output clamp to demagnetize inductive loadsRobust output protectionIntegrated thermal shutdownProtection against short-to-ground eventsConfigurable fault handlingDiagnostic features enable improved module intelligenceWire-break detectionShort-to-supply detectionSmall 6mm × 6mm leadless package

Description

The TPS274C65CP device is a quad-channel smart high-side switch designed to meet the requirements of industrial control systems. The low 72mΩ RDSON minimizes device power dissipation even when providing large output load current. The device integrates protection and diagnostic features to ensure system protection even during harmful events like short circuits or load failures. The device protects against faults through areliable current limitwhich is adjustable from 300mA to 2.26A to provide protection regardless of output load current. The TPS274C65CP has an internal regulator to create voltage for internal rails. Additionally, a VDD pin is provided to allow the use of external VDD supply which must be derived from the VS to reduce the power dissipation. The comprehensive fault reporting include a dedicated VS_FLT pin to indicate the VS undervoltage, and separate fault pin STx to indicate the faults happening in each channel. The TPS274C65CP is available in a small 6mm × 6mm VQFN package with 0.5mm pin pitch, which minimizes design PCB footprint. The TPS274C65CP device is a quad-channel smart high-side switch designed to meet the requirements of industrial control systems. The low 72mΩ RDSON minimizes device power dissipation even when providing large output load current. The device integrates protection and diagnostic features to ensure system protection even during harmful events like short circuits or load failures. The device protects against faults through areliable current limitwhich is adjustable from 300mA to 2.26A to provide protection regardless of output load current. The TPS274C65CP has an internal regulator to create voltage for internal rails. Additionally, a VDD pin is provided to allow the use of external VDD supply which must be derived from the VS to reduce the power dissipation. The comprehensive fault reporting include a dedicated VS_FLT pin to indicate the VS undervoltage, and separate fault pin STx to indicate the faults happening in each channel. The TPS274C65CP is available in a small 6mm × 6mm VQFN package with 0.5mm pin pitch, which minimizes design PCB footprint.
