LMR14206 Series
Manufacturer: Texas Instruments
Beta
⌘K

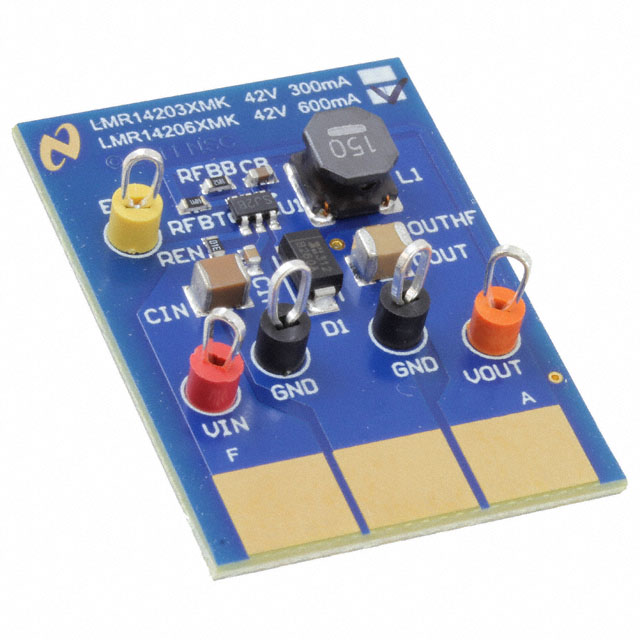

BOARD EVAL FOR LMR14206
| Part | Main Purpose | Frequency - Switching | Outputs and Type | Outputs and Type | Regulator Topology | Voltage - Output | Supplied Contents | Voltage - Input [Max] | Voltage - Input [Min] | Board Type | Current - Output | Number of Outputs | Output Type | Synchronous Rectifier | Output Configuration | Voltage - Input (Min) [Min] | Mounting Type | Topology | Package / Case | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output (Max) [Max] | Function | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | DC/DC Step Down | 1.25 MHz | Non-Isolated | 1 | Buck | 1.2 V | Board(s) | 42 V | 4.5 V | Fully Populated | 600 mA | ||||||||||||||
 Texas Instruments | 1.25 MHz | 600 mA | 1 | Adjustable | Positive | 4.5 V | Surface Mount | Buck | SOT-23-6 Thin TSOT-23-6 | 42 V | -40 °C | 125 ¯C | 34 V | Step-Down | SOT-23-THIN |
