EBAC Series
Manufacturer: Adam Tech
Beta
⌘K

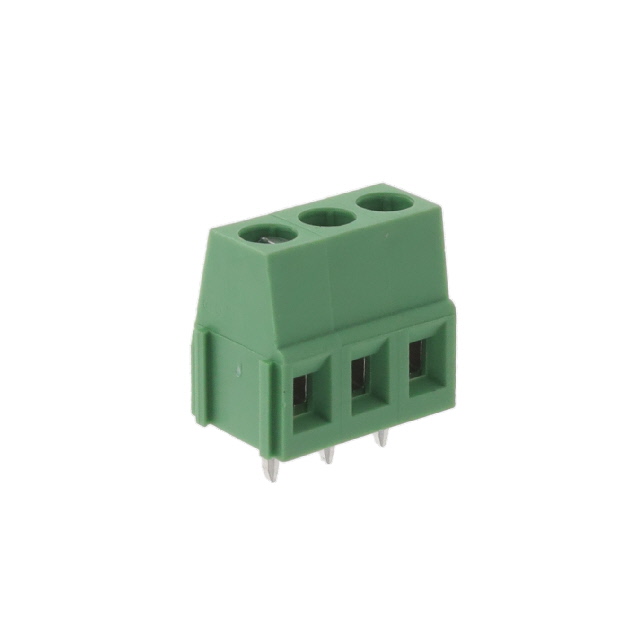

EURO BLOCK 3P
| Part | Screw Thread | Contact Material - Plating | Housing Material | Screw Material - Plating | Torque - Screw | Torque - Screw | Clamp Material - Plating | Operating Temperature [Max] | Operating Temperature [Min] | Wire Termination | Number of Levels | Mounting Type | Pitch | Pitch | Current | Mating Orientation | Color | Wire Gauge [Max] | Wire Gauge [Min] | Features | Positions Per Level | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | M2.5 | Brass - Tin Plated | Thermoplastic | Steel - Zinc Plated | 3.5 Lb-In | 0.4 Nm | Brass - Nickel Plated | 115 °C | -40 C | Screw - Rising Cage Clamp | 1 | Through Hole | 0.197 in | 5 mm | 10 A | Horizontal with Board | Green | 22 AWG | 12 AWG | Interlocking (Side) | 3 | 300 VDC |
