96575 Series

Manufacturer: Pflitsch

Catalog

CABLE FEEDTHROUGH 25.91-32MM M40

Part	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Thread Size	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Material	Thread Length	Thread Length	Includes	Type	Panel Hole Size	Panel Hole Size	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)

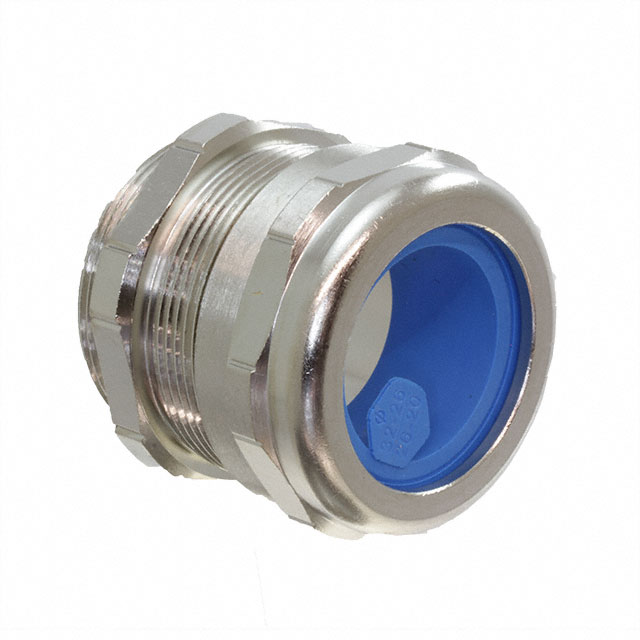

Pflitsch 96575.6	-40 C	300 °C	IP68 - Dust Tight Waterproof NEMA 4X	Silver	M40x1.5	1.26 in	32 mm	Brass Nickel Plated	0.31 "	7.87 mm	Sealing Ring	Cable Feedthrough	1.57 in	39.9 mm	25.91 mm	1.02 in

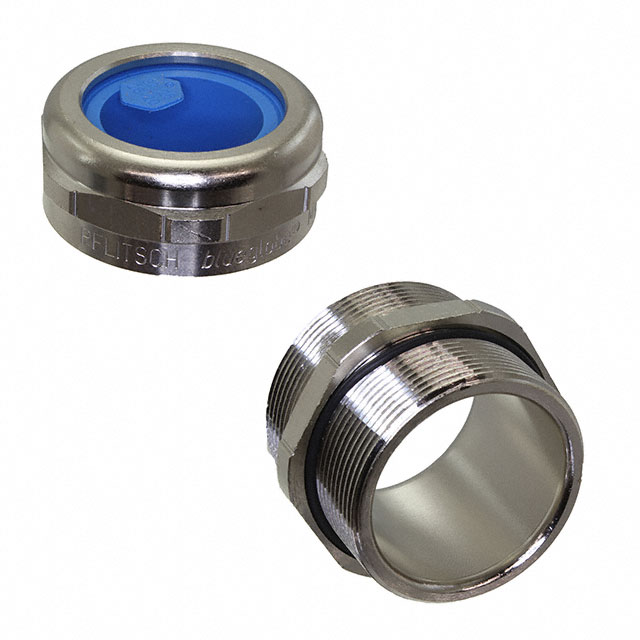

Pflitsch 96575.6/15	-40 C	300 °C	IP68 - Dust Tight Waterproof NEMA 4X	Silver	M40x1.5	1.26 in	32 mm	Brass Nickel Plated			Sealing Ring	Cable Feedthrough	1.57 in	39.9 mm	25.91 mm	1.02 in
Pflitsch 96575.7/15	-60 °C	500 °C		Silver	M40x1.5	1.26 in	32 mm	Stainless Steel			Sealing Ring	Cable Feedthrough	1.575 in	40 mm		0.787 "	20 mm

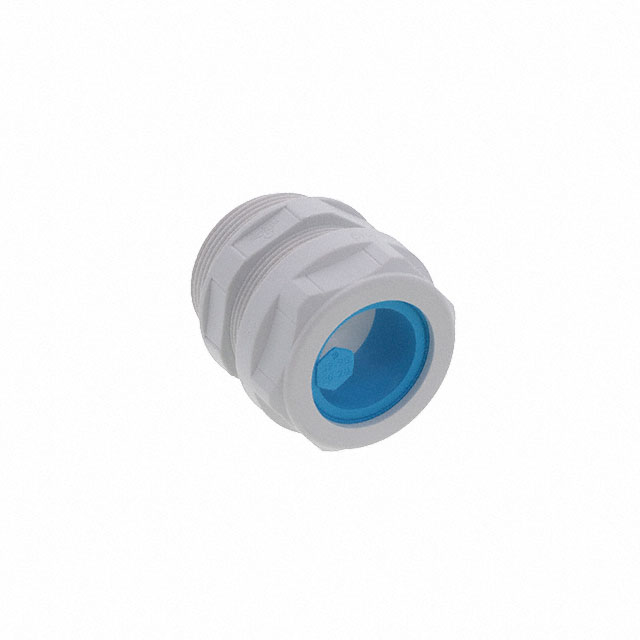

Pflitsch 96575.0	-20 ░C	100 °C	IP68 - Dust Tight Waterproof NEMA 4X	Light Gray	M40x1.5	1.26 in	32 mm	Polyamide (PA) Nylon	0.31 "	7.87 mm		Cable Feedthrough	1.57 in	39.9 mm	25.91 mm	1.02 in
