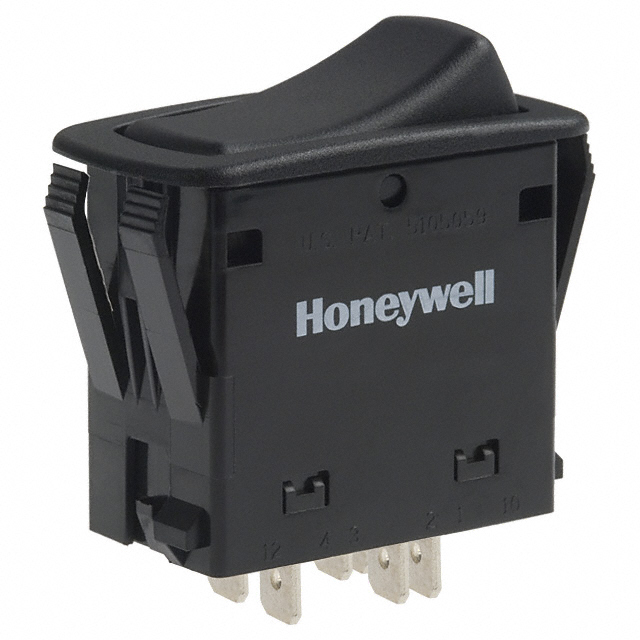

FRN91-2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH ROCKER DPDT 20A 12V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Termination Style | Ingress Protection | Actuator Type | Switch Function | Mechanical Life | Circuit | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Electrical Life | Color - Actuator/Cap | Features | Voltage Rating - DC | Actuator Marking | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 85 °C | -40 °C | 20 A | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | Concave (Curved) | On-Off-On | 250000 Cycles | DPDT | 44.04 mm | 22.02 mm | 100000 Cycles | Black | Sealed | 12 V | No Marking | Panel Mount Snap-In |
Honeywell Sensing and Productivity Solutions | 85 °C | -40 °C | 20 A | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | Concave (Curved) | On-Off-Mom | 250000 Cycles | DPDT | 44.04 mm | 22.02 mm | 50000 Cycles | Black | Sealed | 12 V | No Marking | Panel Mount Snap-In |
Honeywell Sensing and Productivity Solutions | 85 °C | -40 °C | 20 A | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight Waterproof | Concave (Curved) | Mom-Off-Mom | 250000 Cycles | DPDT | 44.04 mm | 22.02 mm | 50000 Cycles | Black | Sealed | 12 V | No Marking | Panel Mount Snap-In |
