VLMU3510 Series
Manufacturer: Vishay Semiconductor Opto Division
Beta
⌘K

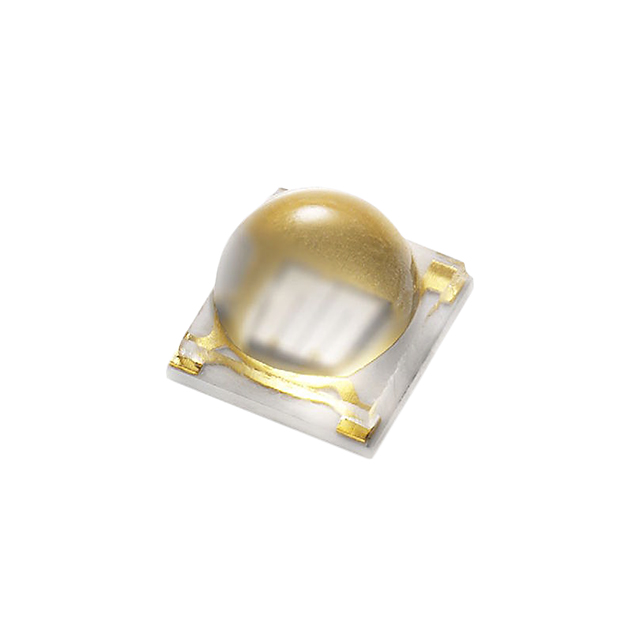

LED UV 367NM 700MA SMD
| Part | Current - DC Forward (If) (Max) [Max] | Package / Case | Voltage - Forward (Vf) (Typ) | Orientation | Mounting Type | Viewing Angle | Type | Radiant Intensity (Ie) Min @ If [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay Semiconductor Opto Division | 700 mA | 2-SMD No Lead Exposed Pad | 4 V | Top View | Surface Mount | 130 ° | Ultraviolet (UV) | 160 mW/sr | 85 C | -40 ¯C | 367 nm |
