CM1205 Series

ESD Protection Array

Catalog

ESD Protection Array

Part	Voltage - Reverse Standoff (Typ)	Power Line Protection	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Voltage - Breakdown (Min) [Min]	Unidirectional Channels [custom]	Type	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Mounting Type

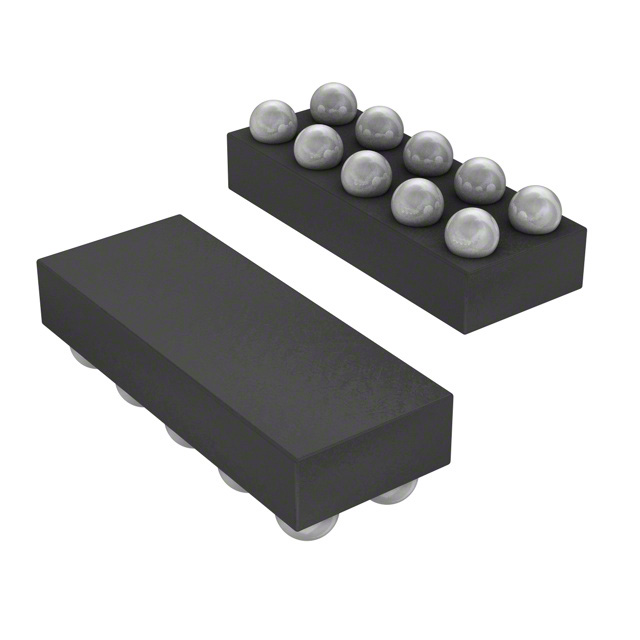

ON Semiconductor CM1205-08CP	3.3 V		3.1	10-WLCSP	1.15	5.6 V	8	Zener	General Purpose	8 V	85 °C	-40 °C	10-WFBGA WLCSP	Surface Mount

Catalog

ESD Protection Array

Key Features

• Eight transient voltage suppressors in a single package

• In-system Electrostatic Discharge (ESD)protection to 25 kV contact discharge per IEC 61000-4-2 international standard

• Compact Chip Scale Package (0.65 mm pitch) format saves board space and eases layout in space critical applications compared to discrete solutions and traditional wire bonded packages

Description

The CM1205 array provides a very high level of protection for sensitive electronic components that may be subjected to ESD. The CM1205 will safely dissipate ESD strikes at levels well beyond the maximum requirements set forth in the IEC 61000-4-2 international standard (Level 4, ±8 kV contact discharge). All I/Os are rated at ±25 kV using the IEC 61000-4-2 contact discharge method.
