CT1102V3 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Circuit	Outline [y]	Outline [x]	Operating Force	Actuator Orientation	Termination Style	Switch Function	Actuator Length, Right Angle [x]	Mounting Type	Actuator Type	Contact Rating @ Voltage

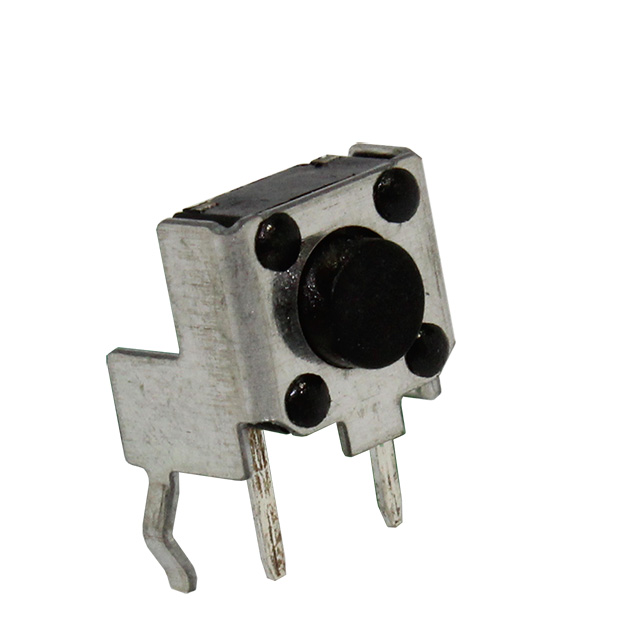

CIT Relay and Switch CT1102V3.15F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	85 °C	-40 C	Non-Illuminated	SPST-NO	6.3 mm	7.5 mm	260 gf	Side Actuated	PC Pin	Off-Mom	3.15 mm	Right Angle Through Hole	Plunger for Cap	0.05 A 50 VDC

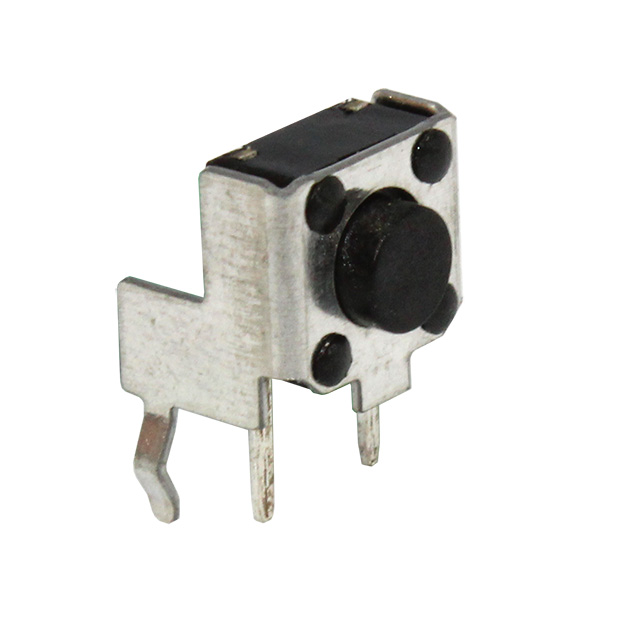

CIT Relay and Switch CT1102V3.85F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	85 °C	-40 C	Non-Illuminated	SPST-NO	6.3 mm	7.5 mm	260 gf	Side Actuated	PC Pin	Off-Mom	3.85 mm	Right Angle Through Hole	Plunger for Cap	0.05 A 50 VDC
CIT Relay and Switch CT1102V3.85F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	85 °C	-40 C	Non-Illuminated	SPST-NO	6.3 mm	7.5 mm	100 gf	Side Actuated	PC Pin	Off-Mom	3.85 mm	Right Angle Through Hole	Plunger for Cap	0.05 A 50 VDC

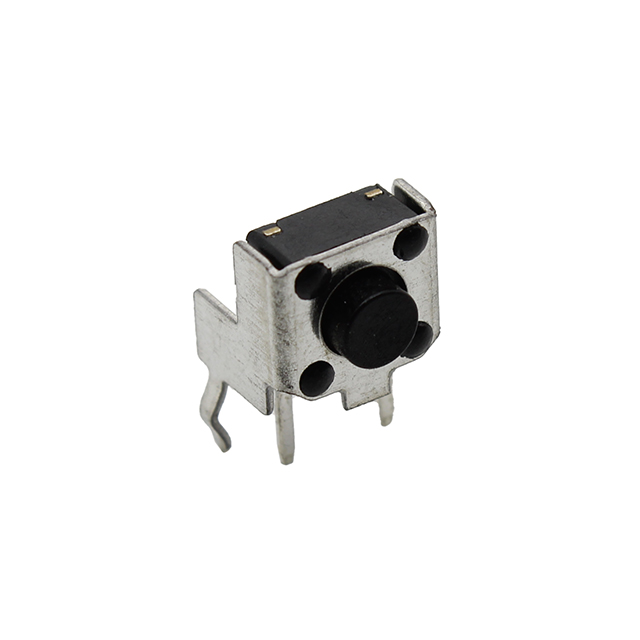

CIT Relay and Switch CT1102V3.85F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	85 °C	-40 C	Non-Illuminated	SPST-NO	6 mm	6 mm	160 gf	Side Actuated	PC Pin	Off-Mom	3.85 mm	Right Angle Through Hole	Standard	0.05 A 50 VDC
