2007715 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

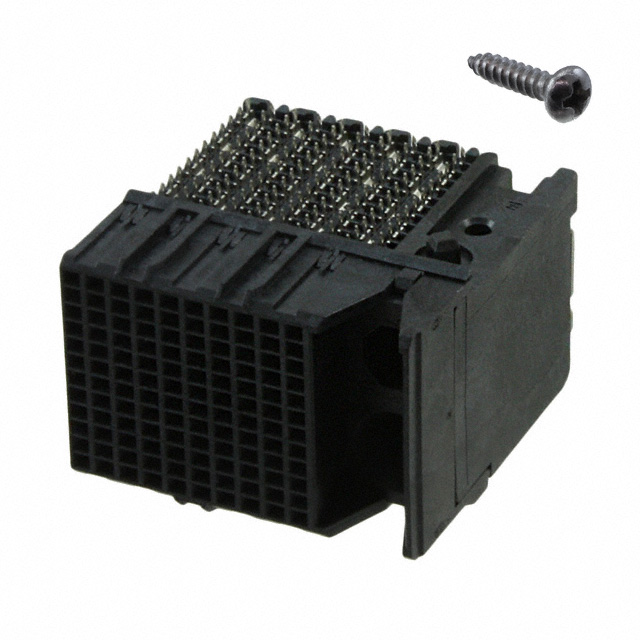

CONN RCPT IMPACT 120POS EDGE MNT
| Part | Number of Rows | Material Flammability Rating | Pitch [x] | Pitch [x] | Termination | Connector Usage | Color | Contact Finish | Mounting Type | Connector Style | Number of Positions Loaded | Number of Positions | Features | Number of Columns | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12 | UL94 V-0 | 0.075 in | 1.91 mm | Press-Fit | Daughtercard | Black | Gold | Board Edge Right Angle Through Hole | Guide Left Impact | All | 120 | Board Guide | 10 | Receptacle Female Sockets | 85 °C | -55 °C | 0.76 Ám | 30 Áin |
