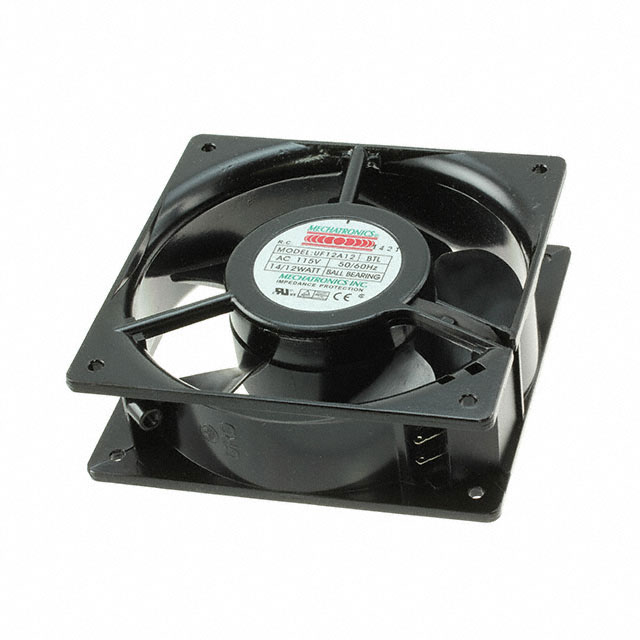

UF12A Series

Catalog

FAN AXIAL 120X38MM 230VAC TERM

Part	Material - Blade	Static Pressure	Static Pressure	Air Flow	Air Flow	Power (Watts)	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Noise	Fan Type	Termination	Bearing Type	Weight [custom]	Weight [custom]	Approval Agency	RPM	Size / Dimension [z]	Size / Dimension [x]	Current Rating (Amps)	Termination	Ingress Protection	Features	Material - Frame	Weight [custom]	Weight [custom]	Lifetime @ Temp.

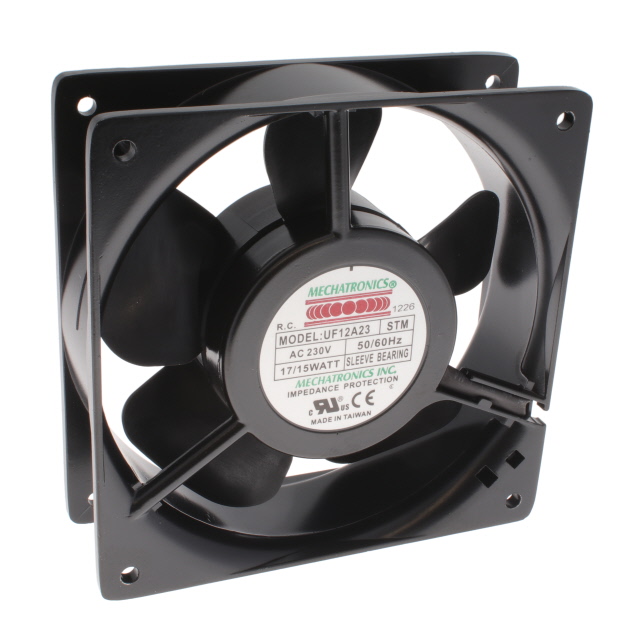

Mechatronics Fan Group UF12A23-STMR	Polybutylene Terephthalate (PBT)	0.28 in H2O	69.7 Pa	2.58 m³/min	92 CFM	15 W	230 VAC	-40 C	70 °C	70 °C	-40 °C	38 mm	42 dB	Tubeaxial	2	Sleeve	0.53 kg	1.168 lbs	CE cUL TUV UL	2750 RPM	120 mm	120 mm
Mechatronics Fan Group UF12AE23-BWHR	Polybutylene Terephthalate (PBT)	0.35 in H2O	87.2 Pa	2.97 m³/min	106 CFM	15 W	230 VAC	-40 C	70 °C	70 °C	-40 °C	38 mm	46 dB(A)	Tubeaxial		Ball	0.53 kg	1.168 lbs	CE cUL TUV UL	3100 RPM	120 mm	120 mm	120 mA	2 Wire Leads
Mechatronics Fan Group UF12AE23-BWHNR	Polybutylene Terephthalate (PBT)	0.35 in H2O	87.2 Pa	2.97 m³/min	106 CFM	15 W	230 VAC	-40 C	70 °C	70 °C	-40 °C	38 mm	46 dB(A)	Tubeaxial		Ball	0.53 kg	1.168 lbs	CE cUL TUV UL	3100 RPM	120 mm	120 mm	120 mA	2 Wire Leads	IP55 - Dust Protected Water Resistant

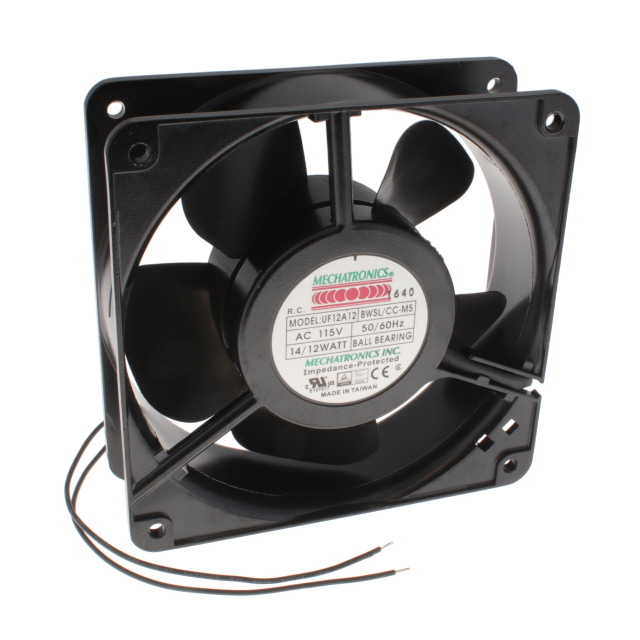

Mechatronics Fan Group UF12A12-BWSLR-CC-M5	Polybutylene Terephthalate (PBT)	0.11 in H2O	27.4 Pa	1.79 m³/min	64 CFM	8 W	115 VAC	-40 C	70 °C	70 °C	-40 °C	38 mm	37 dB	Tubeaxial		Ball	0.53 kg	1.168 lbs	CE cUL TUV UL	2100 RPM	120 mm	120 mm		2 Wire Leads		Conformal Coating

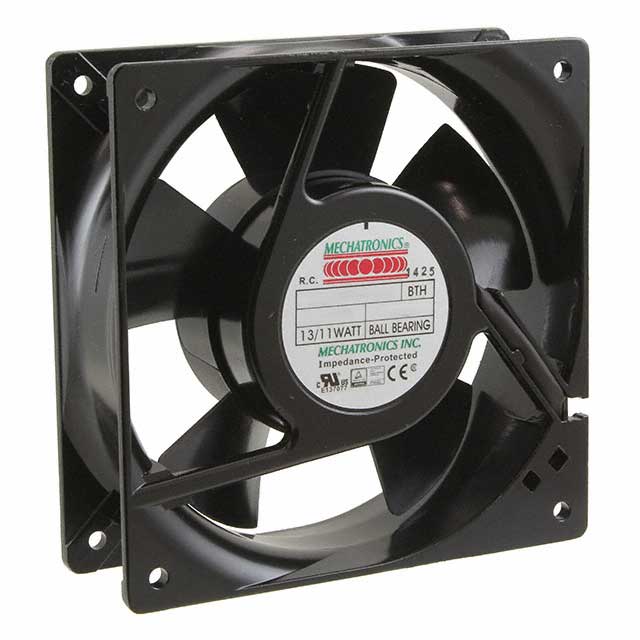

Mechatronics Fan Group UF12AR12-BTHR	Polybutylene Terephthalate (PBT)	0.33 in H2O	82.2 Pa	2.77 m³/min	99 CFM	11 W	115 VAC	-40 C	70 °C	70 °C	-40 °C	38 mm	47 dB	Tubeaxial	2	Ball			CE cUL UL	3100 RPM	120 mm	120 mm	190 mA			Reverse Air Flow	Aluminum	544.3 g	1.2 lbs

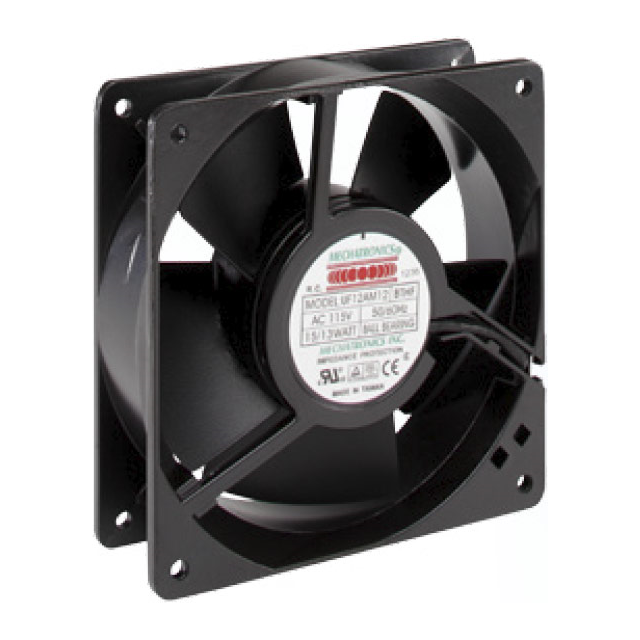

Mechatronics Fan Group UF12AMR12-BTHR-F	Metal	0.24 in H2O	59.8 Pa	2.97 m³/min	106 CFM	16 W	115 VAC	-40 C		90 °C		38 mm	51 dB(A)	Tubeaxial	2	Ball				2950 RPM	120 mm	120 mm	190 mA				Aluminum
Mechatronics Fan Group UF12A12-BTMR	Polybutylene Terephthalate (PBT)	0.28 in H2O	69.7 Pa	2.58 m³/min	92 CFM	12 W	115 VAC	-40 C	70 °C	70 °C	-40 °C	38 mm	42 dB	Tubeaxial	2	Ball			CE cUL TUV UL	2750 RPM	120 mm	120 mm	0.17 A				Aluminum	544.3 g	1.2 lbs	50000 Hrs

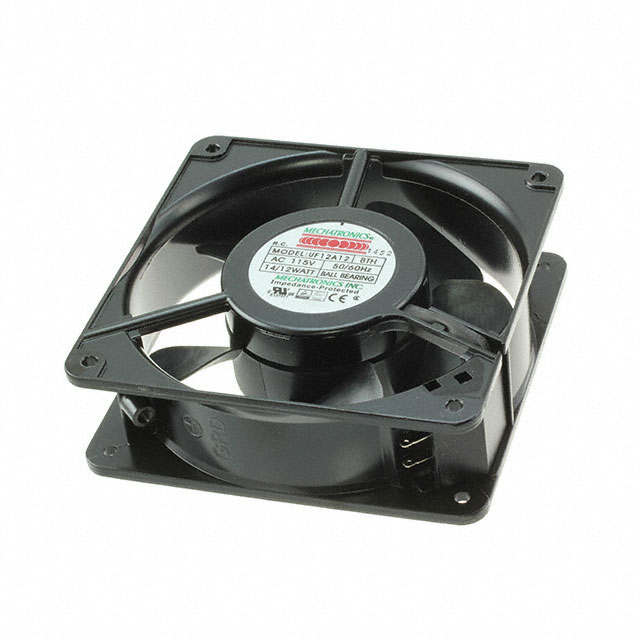

Mechatronics Fan Group UF12A12-BTHR-T1	Polybutylene Terephthalate (PBT)	0.35 in H2O	87.2 Pa	2.97 m³/min	106 CFM	12 W	115 VAC	-40 C	70 °C	70 °C	-40 °C	38 mm	46 dB(A)	Tubeaxial	2	Ball	0.53 kg	1.168 lbs	CE cUL TUV UL	3100 RPM	120 mm	120 mm				Thermal Overload Protector (TOP)

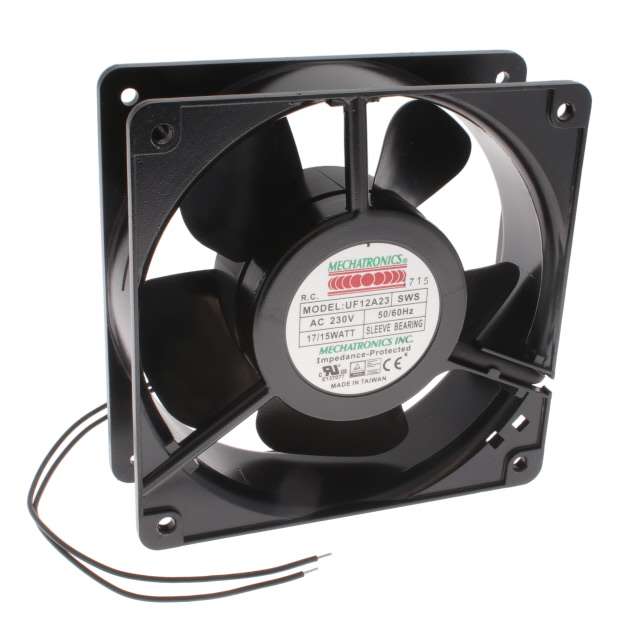

Mechatronics Fan Group UF12A23-SWSR	Polybutylene Terephthalate (PBT)	0.11 in H2O	27.4 Pa	1.79 m³/min	64 CFM	8 W	230 VAC	-40 C	70 °C	70 °C	-40 °C	38 mm	37 dB	Tubeaxial		Sleeve	0.53 kg	1.168 lbs	CE cUL TUV UL	2100 RPM	120 mm	120 mm	40 mA	2 Wire Leads
Mechatronics Fan Group UF12A12-BWLR	Polybutylene Terephthalate (PBT)	0.16 in H2O	39.8 Pa	2.27 m³/min	81 CFM	12 W	115 VAC	-40 C	70 °C	70 °C	-40 °C	38 mm	38 dB(A)	Tubeaxial		Ball			CE cUL TUV UL	2300 RPM	120 mm	120 mm	150 mA	2 Wire Leads			Aluminum	544.3 g	1.2 lbs	50000 Hrs
